| Item | Part No. | Part Name | Qty | Serial No. |
| (361-15-00100) | TRANSMISSION ASS'Y | 1001- | ||

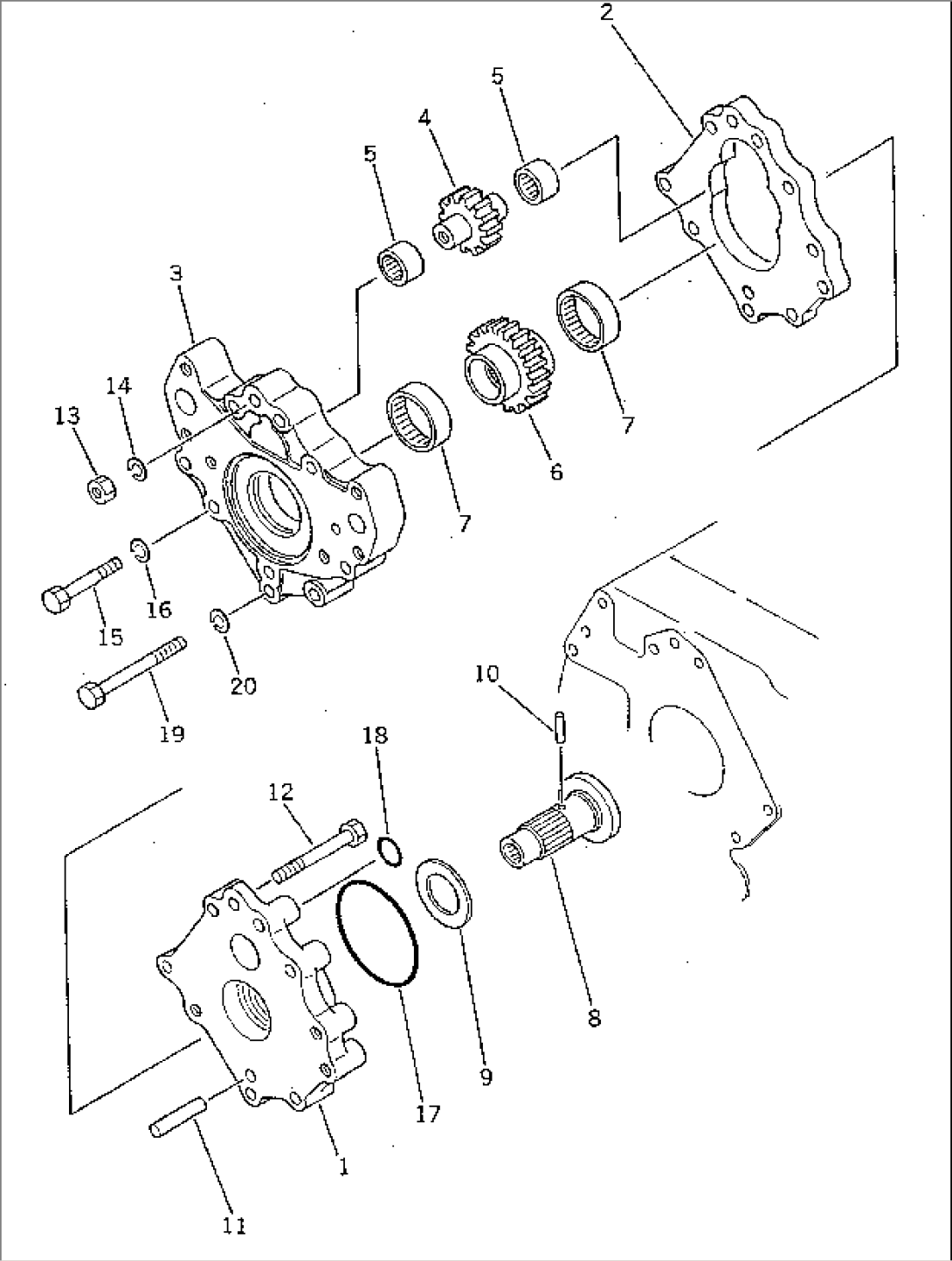

| 362-15-00410 | PUMP ASS'Y | 1001- | ||
| 1 | \6\ | HOUSING | 1001- | |
| 2 | \6\ | CASE,GEAR | 1001- | |
| 3 | \6\ | BRACKET | 1001- | |
| 4 | \6\ | GEAR,DRIVEN | 1001- | |
| 5 | \6\ | BEARING,NEEDLE | 1001- | |
| 6 | \6\ | GEAR,DRIVE | 1001- | |
| 7 | \6\ | BEARING,NEEDLE | 1001- | |
| 8 | \6\ | SHAFT | 1001- | |
| 9 | \6\ | WASHER | 1001- | |
| 10 | \6\ | PIN,SPRING | 1001- | |
| 11 | \6\ | PIN,DOWEL | 1001- | |
| 12 | \6\ | BOLT | 1001- | |
| 13 | \6\ | NUT | 1001- | |
| 14 | \6\ | WASHER,SPRING | 1001- | |
| 15 | \6\ | BOLT | 1001- | |
| 16 | \6\ | WASHER,SPRING | 1001- | |
| 17 | 07000-02080 | O-RING | 1001- | |
| 18 | 07000-72020 | O-RING | 1001- | |
| 19 | 01010-50890 | BOLT | 2088- | |
| 19 | 362-15-14970 | BOLT | 1001-2087 | |
| 20 | 01602-20825 | WASHER,SPRING | 1001- |
