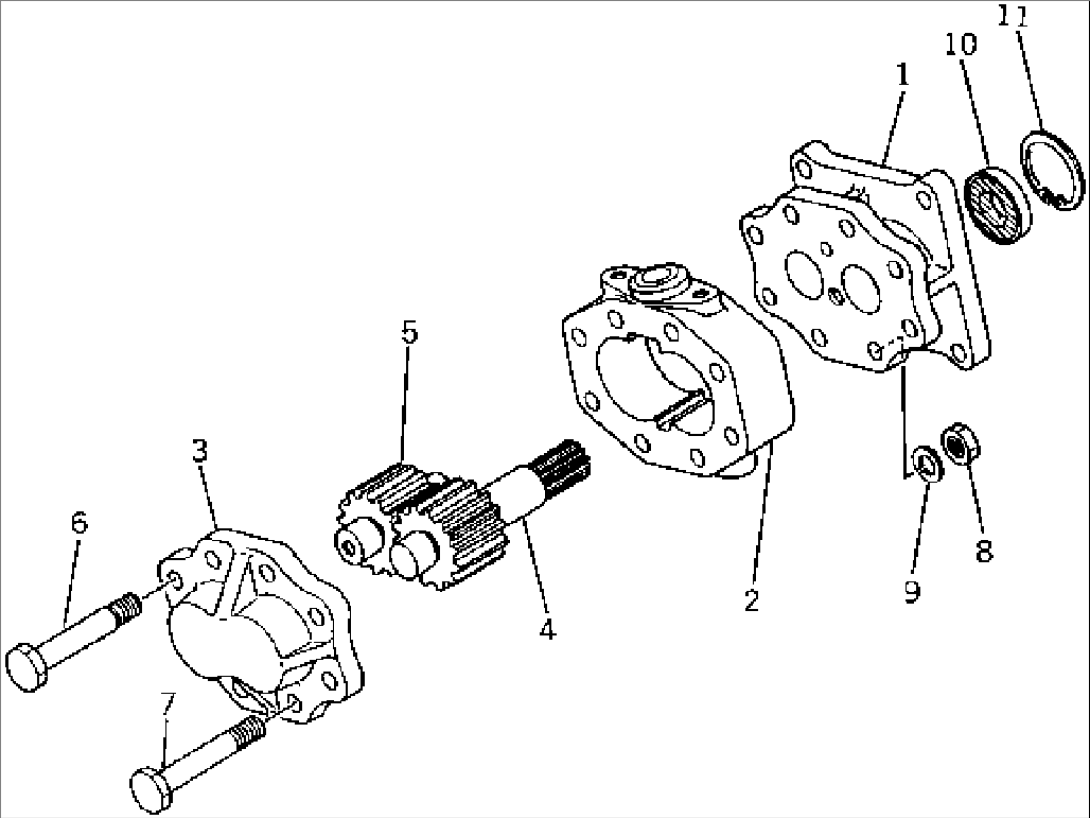

| Item | Part No. | Part Name | Qty | Serial No. |
| 07432-71203 | PUMP ASS'Y | 35001-35320 | ||
| 1 | \6\ | BRACKET | 35001-35320 | |
| 2 | \6\ | CASE | 35001-35320 | |
| 3 | \6\ | HOUSING | 35001-35320 | |
| 4 | \6\ | GEAR | 35001-35320 | |
| 5 | \6\ | GEAR | 35001-35320 | |
| 6 | (\7\07430-11190) | BOLT | 35001-35320 | |
| 7 | (\7\01050-31290) | BOLT | 35001-35320 | |
| 8 | (\7\01582-01210) | NUT | 35001-35320 | |
| 9 | (\7\01602-01236) | WASHER,SPRING | 35001-35320 | |
| 10 | 07430-71160 | SEAL,OIL | 35001-35320 | |
| 11 | 04065-04518 | RING,SNAP | 35001-35320 |
