| Item | Part No. | Part Name | Qty | Serial No. |

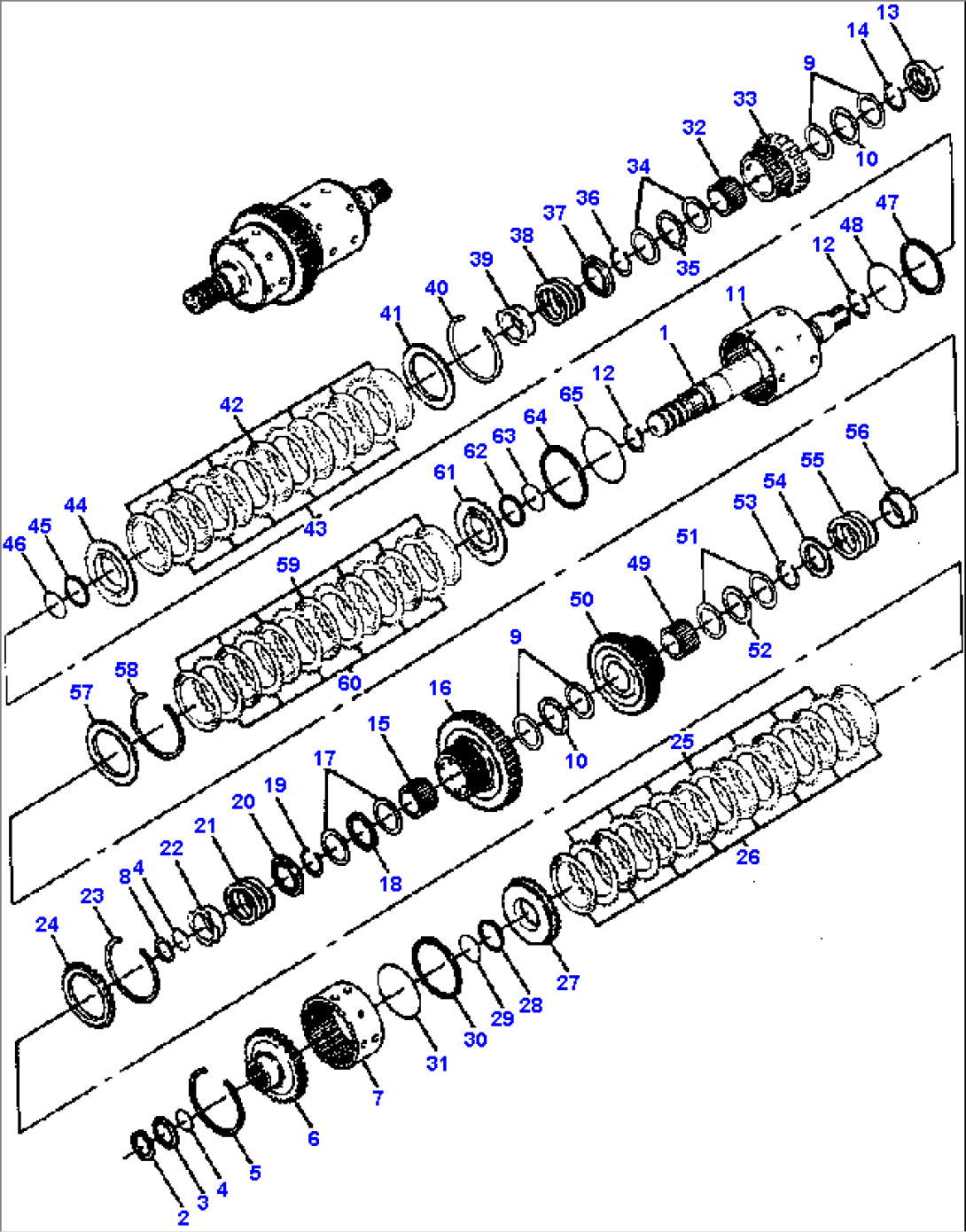

| 716 834 C93 | CLUTCH ASSEMBLY, RANGE | |||
| 1 | SHAFT, OUTPUT (SEE PG 07-058) | |||
| 2 | 258 400 C1 | RING, RETAINING | ||
| 3 | 716 835 C1 | SPACER, GEAR | ||
| 4 | 21 924 R1 | O-RING | ||
| 5 | 1228 459 H1 | RING, RETAINING | ||
| 6 | 1216 245 H1 | HUB, 1ST CLUTCH | ||
| 7 | 716 837 C3 | DRUM, 1ST CLUTCH | ||
| 8 | 734 369 C1 | RING, RETAINING | ||
| 9 | 659 907 C1 | WASHER, THRUST | ||
| 10 | 374 011 R91 | BEARING, THRUST | ||
| 11 | 741 777 C2 | KIT, HUB AND DRUM | ||
| (NSS) | HUB, 2ND AND 3RD CLUTCH | |||
| (NSS) | DRUM, 2ND AND 3RD CLUTCH | |||
| (NSS) | RING, RETAINING | |||
| 12 | 366 694 C1 | RING, RETAINING | ||
| 13 | 709 630 C1 | SPACER, BEARING | ||
| 14 | 632 341 C1 | RING, RETAINING | ||
| FIRST SPEED CLUTCH | ||||
| 15 | 659 906 C91 | BEARING, NEEDLE | ||
| 16 | 709 791 C1 | GEAR, 1ST SPEED | ||
| 17 | 659 907 C1 | WASHER, THRUST | ||
| 18 | 374 011 R91 | BEARING, THRUST | ||
| 19 | 632 341 C1 | RING, RETAINING | ||
| 20 | 1212 820 H1 | RETAINER, SPRING | ||
| 21 | 1212 816 H1 | SPRING, PISTON RETURN | ||
| 22 | 709 609 C1 | SLEEVE, LUBE | ||
| 23 | 1228 459 H1 | RING, RETAINING | ||
| 24 | 1210 754 H2 | PLATE, SUPPORT | ||
| 25 | 716 179 C1 | PLATE, DRIVE | ||
| 26 | 709 877 C1 | DISC, FRICTION | ||
| 27 | 709 837 C1 | PISTON, 1ST SPEED CLUTCH | ||
| 28 | 659 910 C1 | SEAL, PISTON | ||
| 29 | 659 913 C1 | RING, SEAL | ||
| 30 | 709 631 C1 | SEAL, PISTON | ||
| 31 | 709 632 C1 | RING, SEAL | ||
| THIRD SPEED CLUTCH | ||||
| 32 | 601 766 C91 | BEARING, NEEDLE | ||
| 33 | 709 793 C1 | GEAR, 3RD SPEED | ||
| 34 | 659 907 C1 | WASHER, THRUST | ||
| 35 | 374 011 R91 | BEARING, THRUST | ||
| 36 | 632 341 C1 | RING, RETAINING | ||
| 37 | 1212 820 H1 | RETAINER, SPRING | ||
| 38 | 1212 816 H1 | SPRING, PISTON RETURN | ||
| 39 | 709 609 C1 | SLEEVE, LUBE | ||
| 40 | 1228 459 H1 | RING, RETAINING | ||
| 41 | 1210 754 H2 | PLATE, SUPPORT | ||
| 42 | 709 877 C1 | DISC, FRICTION | ||
| 43 | 716 179 C1 | PLATE, DRIVE | ||
| 44 | 709 821 C1 | PISTON, 3RD SPEED CLUTCH | ||
| 45 | 659 910 C1 | SEAL, PISTON | ||
| 46 | 659 913 C1 | RING, SEAL | ||
| 47 | 659 720 C1 | SEAL, PISTON | ||
| 48 | 659 726 C1 | RING, SEAL | ||
| SECOND SPEED CLUTCH | ||||
| 49 | 610 766 C91 | BEARING, NEEDLE | ||
| 50 | 709 792 C1 | GEAR, 2ND SPEED | ||
| 51 | 659 907 C1 | WASHER, THRUST | ||
| 52 | 374 011 R91 | BEARING, THRUST | ||
| 53 | 632 341 C1 | RING, RETAINING | ||
| 54 | 1212 820 H1 | RETAINER, SPRING | ||
| 55 | 1212 816 H1 | SPRING, PISTON RETURN | ||
| 56 | 709 609 C1 | SLEEVE, LUBE | ||
| 57 | 1210 754 H2 | PLATE, SUPPORT | ||
| 58 | 1228 459 H1 | RING, RETAINING | ||
| 59 | 709 877 C1 | DISC, FRICTION | ||
| 60 | 716 179 C1 | PLATE, DRIVE | ||
| 61 | 709 837 C1 | PISTON, 2ND SPEED CLUTCH | ||
| 62 | 659 910 C1 | SEAL, PISTON | ||
| 63 | 659 913 C1 | RING, SEAL | ||
| 64 | 709 631 C1 | SEAL, PISTON | ||
| 65 | 709 632 C1 | RING, SEAL |
