| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (154-15-61001) | TRANSMISSION ASS'Y | (100076)- | ||
| (154-15-61000) | TRANSMISSION ASS'Y | 10001-(100075) | ||

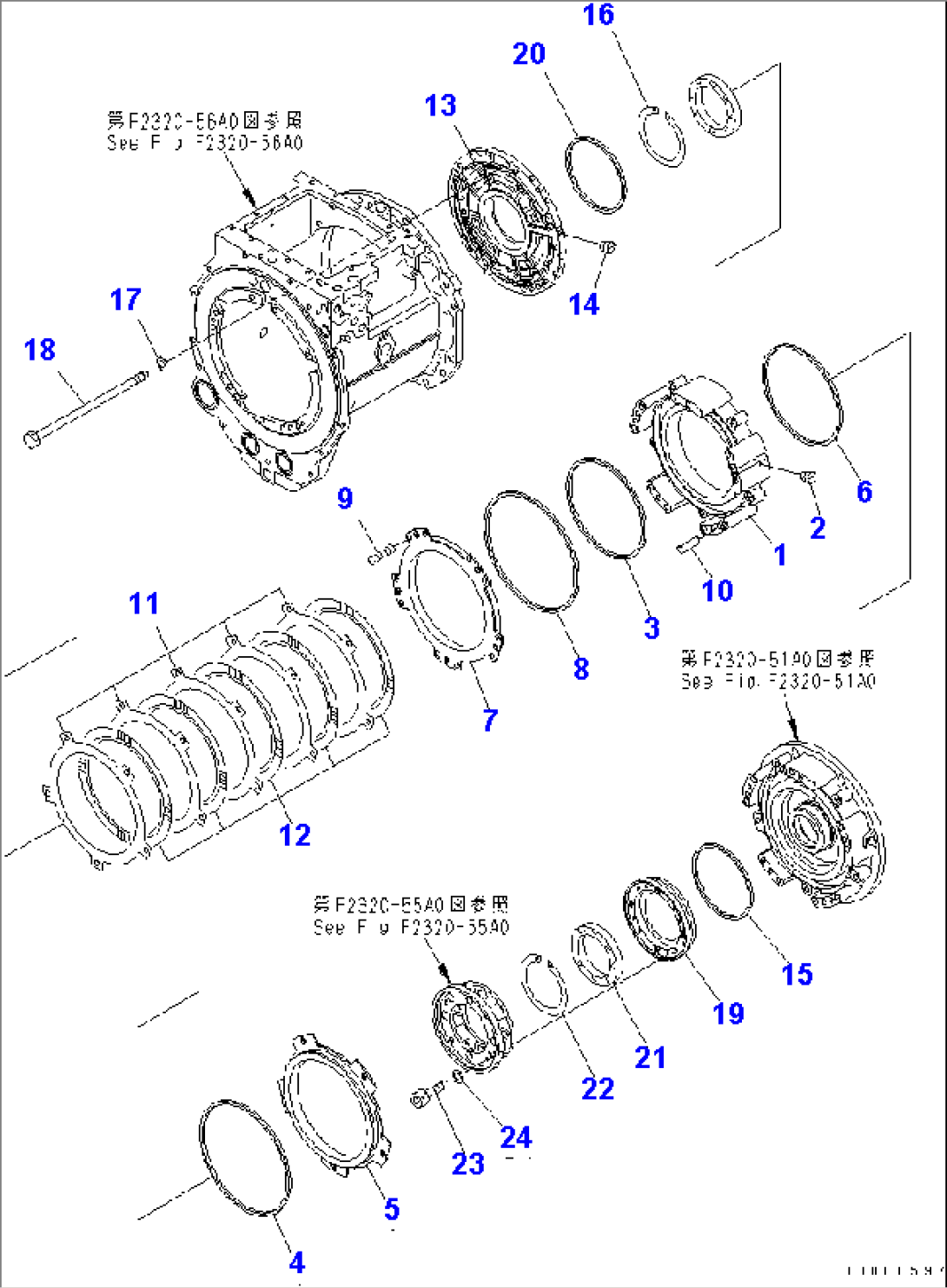

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2320-51A0 TO F2320-62A0. | ||||
| 154-15-00540 | HOUSING ASS'Y | 10001- | ||
| 1 | \6\ | HOUSING | 10001- | |
| 2 | 145-14-11320 | PLUG | 10001- | |
| 3 | 113-15-12870 | RING,SEAL (K2) | 10001- | |
| 4 | 562-15-19220 | RING,SEAL (K2) | 10001- | |
| 5 | 154-15-62740 | PISTON | (100076)- | |
| 154-15-68740 | PISTON | (100062)-(100075) | ||
| 154-15-62740 | PISTON | 10001-(100061) | ||
| 6 | 113-15-12870 | RING,SEAL (K2) | 10001- | |
| 7 | 154-15-62730 | PISTON | (100076)- | |
| 154-15-68730 | PISTON | (100062)-(100075) | ||
| 154-15-62730 | PISTON | 10001-(100061) | ||
| 8 | 144-15-22881 | RING,SEAL (K2) | 10001- | |
| 9 | 145-14-12780 | SPRING | 10001- | |
| 10 | 04020-01434 | PIN | 10001- | |
| 11 | 425-15-22820 | PLATE | (100076)- | |
| 154-15-68780 | PLATE | (100062)-(100075) | ||
| 425-15-22820 | PLATE | 10001-(100061) | ||
| 12 | 424-15-12711 | DISC | 10001- | |
| 154-15-00550 | HOUSING ASS'Y | 10001- | ||
| 13 | \6\ | HOUSING | 10001- | |
| 14 | 175-15-11230 | PLUG | 10001- | |
| 15 | 14X-15-19210 | SEAL RING | 10001- | |
| 16 | 04077-00150 | RING | 10001- | |
| 17 | 145-14-11571 | WASHER | 10001- | |
| 18 | 232-15-11240 | BOLT | 10001- | |
| 19 | 134-15-62370 | COVER | 10001- | |
| 20 | 14X-15-19210 | SEAL RING | 10001- | |
| 21 | 06000-06924 | BEARING | 10001- | |
| 22 | 04070-00120 | RING | 10001- | |
| 23 | 01252-41060 | BOLT | 10001- | |
| 24 | 01643-51032 | WASHER | 10001- |
