| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (426-15-31001) | TRANSMISSION ASS'Y | (6049)- | ||
| (\0\426-15-31000) | TRANSMISSION ASS'Y | 50001-(6048) | ||

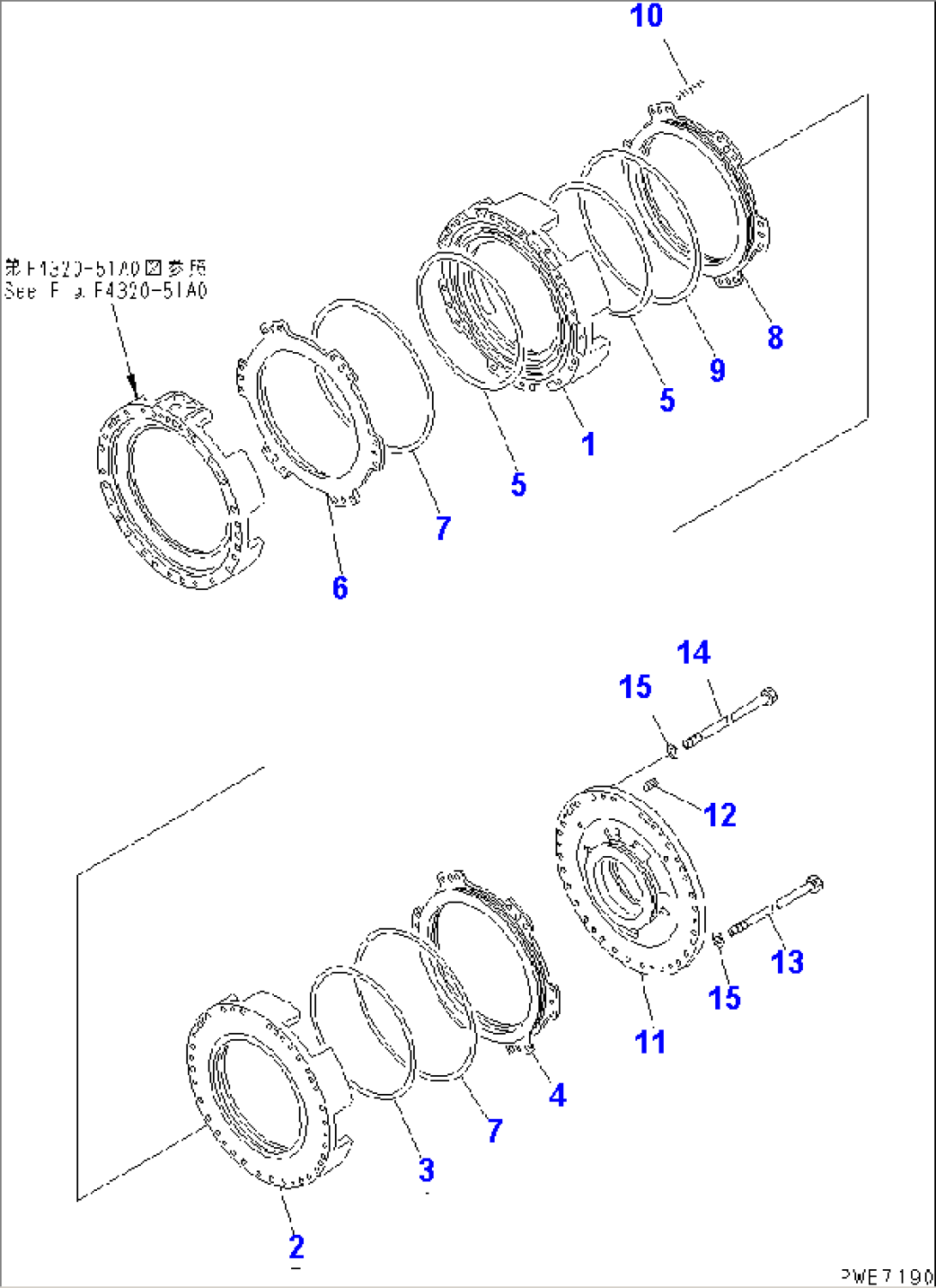

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F4320-51A0 TO F4320-70A0. | ||||
| 1 | 426-15-11170 | HOUSING | 50001- | |
| 2 | 426-15-11180 | HOUSING | 50001- | |
| 3 | 582-15-19240 | RING,SEAL (K2) | 50001- | |
| 4 | 426-15-12730 | PISTON | 50001- | |
| 5 | 426-15-19210 | RING,SEAL (K2) | 50001- | |
| 6 | 426-15-12750 | PISTON | 50001- | |
| 7 | 426-15-19220 | RING,SEAL (K2) | 50001- | |
| 8 | 426-15-12740 | PISTON | 50001- | |
| 9 | 175-15-59250 | RING,SEAL (K2) | 50001- | |
| 10 | 425-15-12920 | SPRING, (L= 68.0) | 50001- | |
| 426-15-00120 | HOUSING ASS'Y | 50001- | ||
| 11 | \6\ | HOUSING | 50001- | |
| 12 | 562-15-11450 | PLUG | 50001- | |
| 13 | 426-15-11250 | BOLT | 50001- | |
| 14 | 426-15-11260 | BOLT | 50001- | |
| 15 | 145-14-11571 | WASHER | (6204)- | |
| 15 | 145-14-11570 | WASHER | 50001-(6203) |
