| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (425-15-21004) | TRANSMISSION ASS'Y | 50752- | ||
| (\2\425-15-21003) | TRANSMISSION ASS'Y | (50752-52403) | ||
| (425-15-21002) | TRANSMISSION ASS'Y | 50435-50751 | ||
| (425-15-21001) | TRANSMISSION ASS'Y | 50001-50434 | ||

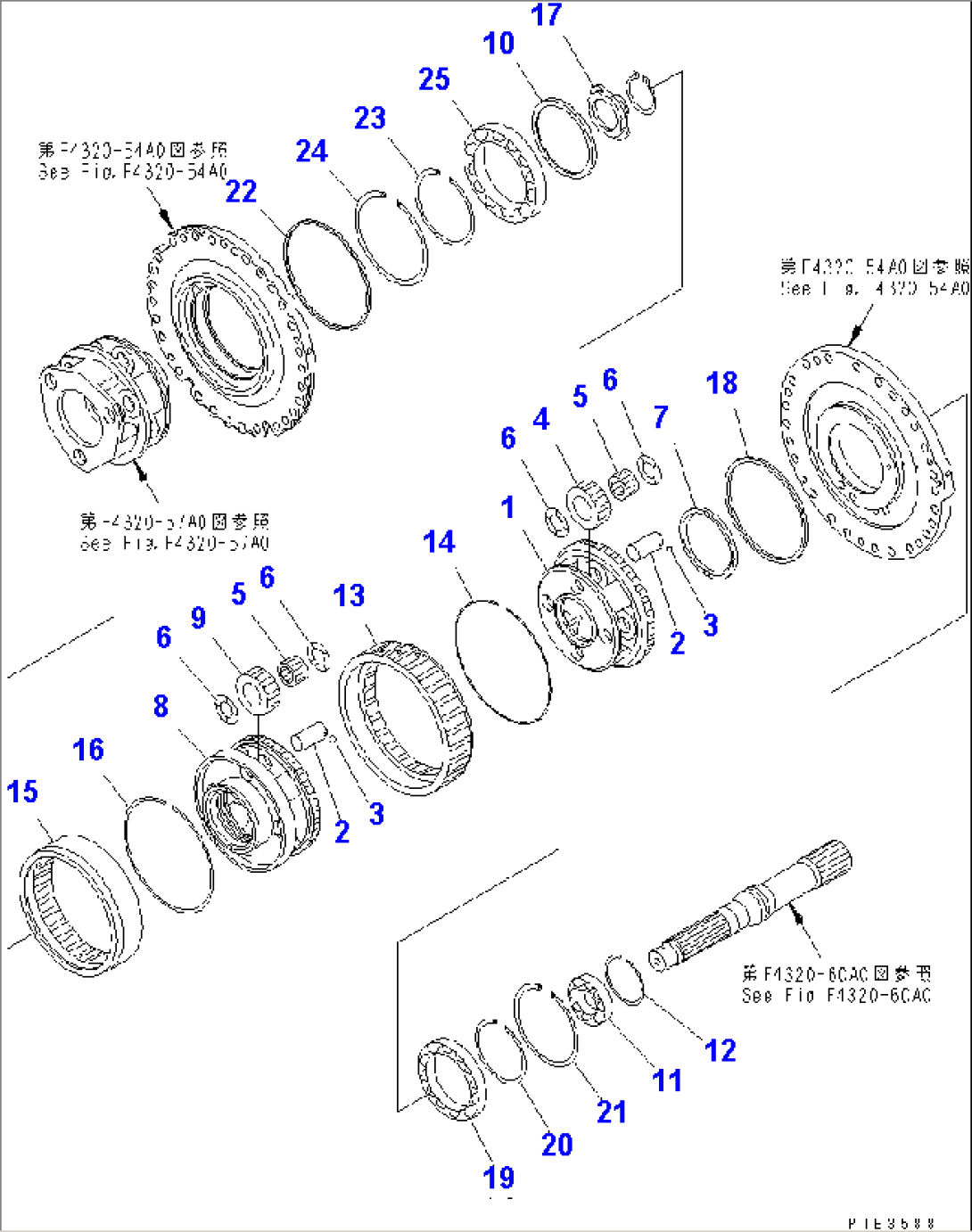

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F4320-51A0 TO F4320-70A0. | ||||
| 1 | 425-15-22312 | CARRIER | 50001- | |
| 2 | 425-15-22540 | SHAFT | 50001- | |
| 3 | 04260-00635 | BALL | 50001- | |
| 4 | 425-15-22411 | GEAR | 50001- | |
| 5 | 425-15-29410 | BEARING,NEEDLE | 50001- | |
| 6 | 17A-15-19710 | WASHER,THRUST | 50001- | |
| 7 | 421-15-12810 | SPACER | 50001- | |
| 8 | 425-15-22340 | CARRIER | 50001- | |
| 9 | 425-15-22421 | GEAR | 50001- | |
| 10 | 421-15-12150 | SPACER | 50001- | |
| 11 | 06000-06210 | BEARING,BALL | 50001- | |
| 12 | 04077-00090 | RING,SNAP | 50001- | |
| 13 | 14X-15-12611 | GEAR,RING | 50001- | |
| 14 | 14X-15-19520 | RING,SNAP | 50001- | |
| 15 | 425-15-22620 | GEAR,RING | 50001- | |
| 16 | 14X-15-19530 | RING,SNAP | 50001- | |
| 17 | 421-15-12541 | COVER | 50001- | |
| 18 | 07018-12005 | RING,SEAL | 50001- | |
| 19 | 06030-06922 | BEARING | 50001- | |
| 20 | 04070-00110 | RING,SNAP | 50001- | |
| 21 | 04077-00150 | RING,SNAP | 50001- | |
| 22 | 07018-12105 | RING,SEAL | 50001- | |
| 23 | 04070-00130 | RING,SNAP | 50001- | |
| 24 | 04071-00180 | RING,SNAP | 50001- | |
| 25 | 06000-06926 | BEARING,BALL | 50001- |
