| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| 425-15-21003 | TRANSMISSION ASS'Y | 50752- | ||
| 425-15-21002 | TRANSMISSION ASS'Y | 50435-50751 | ||
| 425-15-21001 | TRANSMISSION ASS'Y | 50001-50434 | ||

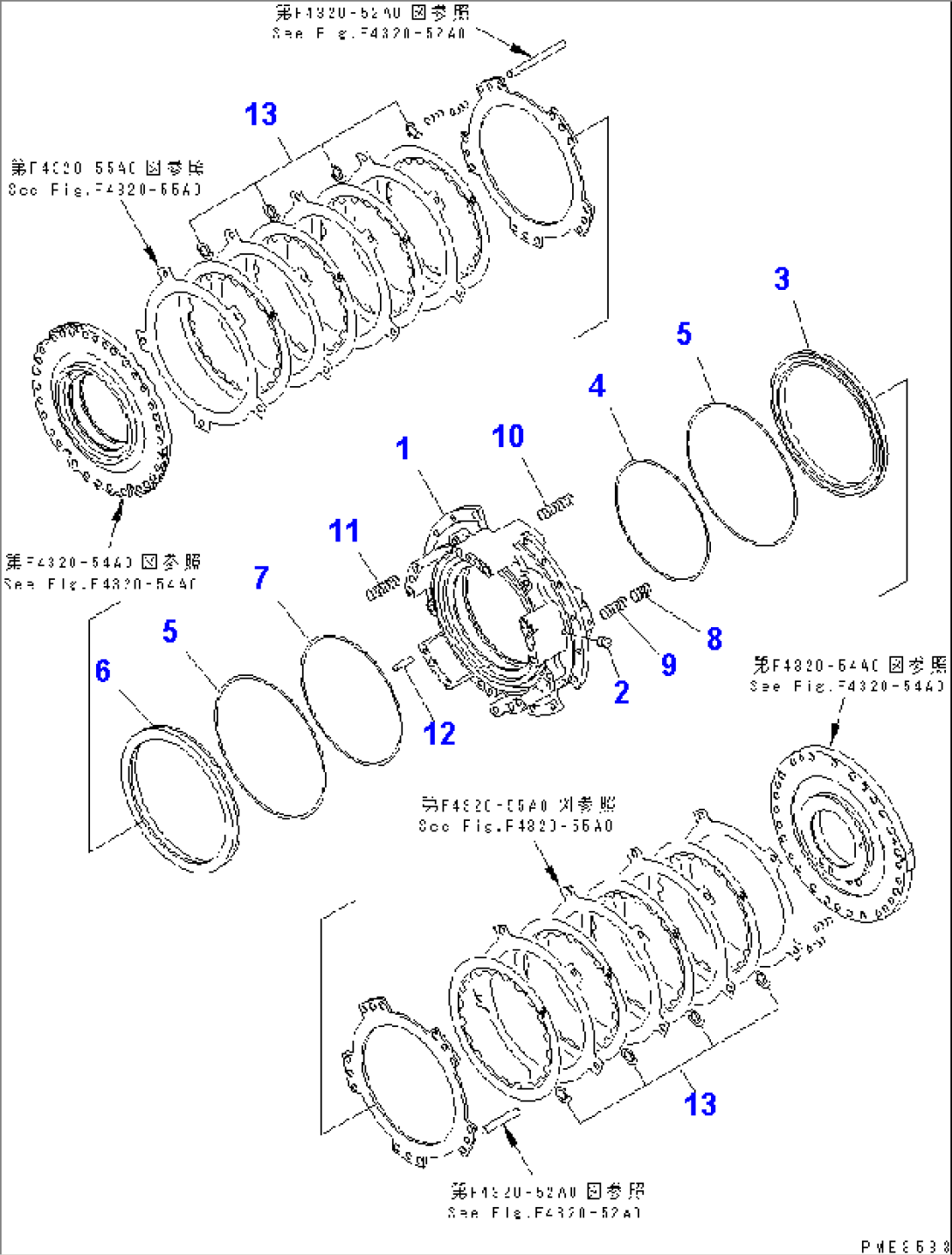

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F4320-51A0 TO F4320-70A0. | ||||
| 425-15-02150 | HOUSING ASS'Y,REVERSE AND FORWARD | 50001- | ||
| 1 | \6\ | HOUSING,REVERSE AND FORWARD | 50001- | |
| 2 | 145-14-11320 | PLUG | 50001- | |
| 3 | 425-15-22780 | PISTON,REVERSE | 50001- | |
| 4 | 569-15-12860 | RING,SEAL (K2) | 50001- | |
| 5 | 144-15-22881 | RING,SEAL (K2) | 50001- | |
| 6 | 425-15-22770 | PISTON,FORWARD | 50001- | |
| 7 | 195-15-49210 | RING,SEAL (K2) | 50001- | |
| 8 | 287-15-15360 | PISTON | 50001- | |
| 9 | 700-80-51390 | SPRING | 50001- | |
| 10 | 175-15-42781 | SPRING | 50001- | |
| 11 | 145-14-12790 | SPRING¤ (L= 59.0) | 50001- | |
| 12 | 175-15-31210 | PIN | 50001- | |
| 13 | 175-15-42880 | SPRING | (10826)- | |
| 175-15-42880 | SPRING | 50001-(10825) |
