| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| 425-15-31001 | TRANSMISSION ASS'Y | 55293- | ||
| \0\425-15-31000 | TRANSMISSION ASS'Y | 55001-55292 | ||
| 425-15-31011 | TRANSMISSION ASS'Y,(WITH LOCK-UP) | 55293- | ||
| \0\425-15-31010 | TRANSMISSION ASS'Y,(WITH LOCK-UP) | 55001-55292 | ||

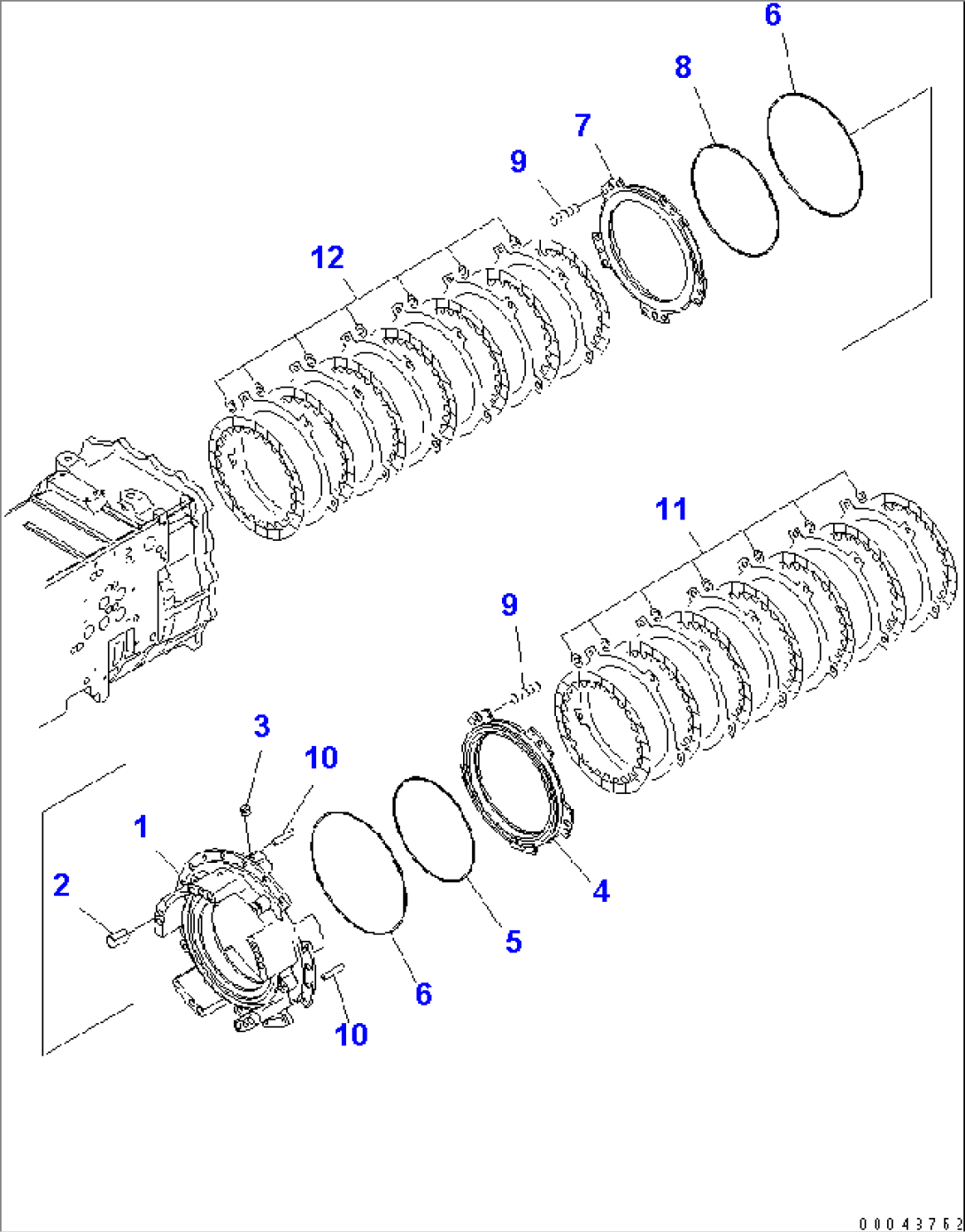

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F4320-51A0 TO F4320-68A0. | ||||
| 1 | 425-15-31171 | HOUSING | 55001- | |
| 2 | 569-15-41310 | SLEEVE | (100031)- | |
| 3 | 145-14-11320 | PLUG | 55001- | |
| 4 | 425-15-32780 | PISTON | 55001- | |
| 5 | 569-15-12860 | RING (K2) | 55001- | |
| 6 | 144-15-22881 | RING (K2) | 55001- | |
| 7 | 425-15-32770 | PISTON | 55001- | |
| 8 | 195-15-49210 | RING (K2) | 55001- | |
| 9 | 145-14-12780 | SPRING | 55001- | |
| 10 | 562-15-11281 | PIN | 55001- | |
| 11 | 175-15-42880 | SPRING | 55001- | |
| 12 | 175-15-42880 | SPRING | 55001- |
