| Item | Part No. | Part Name | Qty | Serial No. |

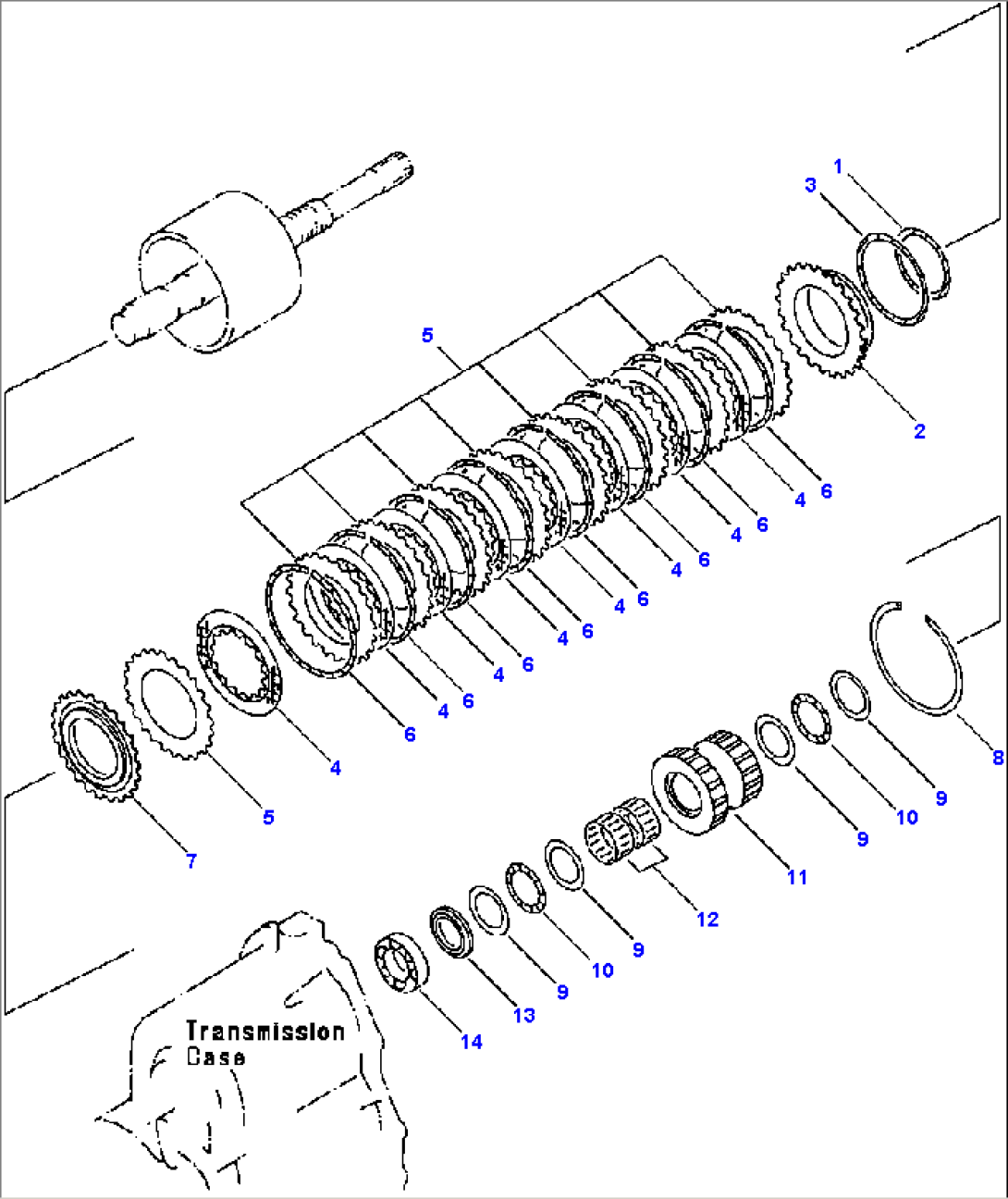

| FORWARD AND REVERSE CLUTCH (SEE PG 02-012) | ||||
| 1 | 419-15-12210 | RING, SEAL - REVERSE HOUSING | ||
| 2 | 419-15-12221 | PISTON | ||
| 3 | 419-15-12190 | RING, SEAL - REVERSE PISTON | ||
| 4 | 7720-50-2590 | DISC | ||
| 5 | 419-15-12310 | PLATE, SEPARATE | ||
| 6 | 419-15-12133 | SPRING, WAVE | ||
| 7 | 419-15-12281 | PLATE, END | ||
| 8 | 419-15-12140 | RING, SNAP | ||
| 9 | 419-15-12240 | WASHER, THRUST | ||
| 10 | 419-15-12250 | BEARING, THRUST | ||
| 11 | 417-15-12243 | GEAR, REVERSE | ||
| 12 | 419-15-12270 | BEARING | ||
| 13 | 419-15-12330 | SPACER | ||
| 14 | 06030-06210 | BEARING | ||
| TRANSMISSION SERVICE KIT (SEE PG 02-040) | ||||
| F1 - INCLUDED IN SERVICE KIT 416-15-05121. | ||||
