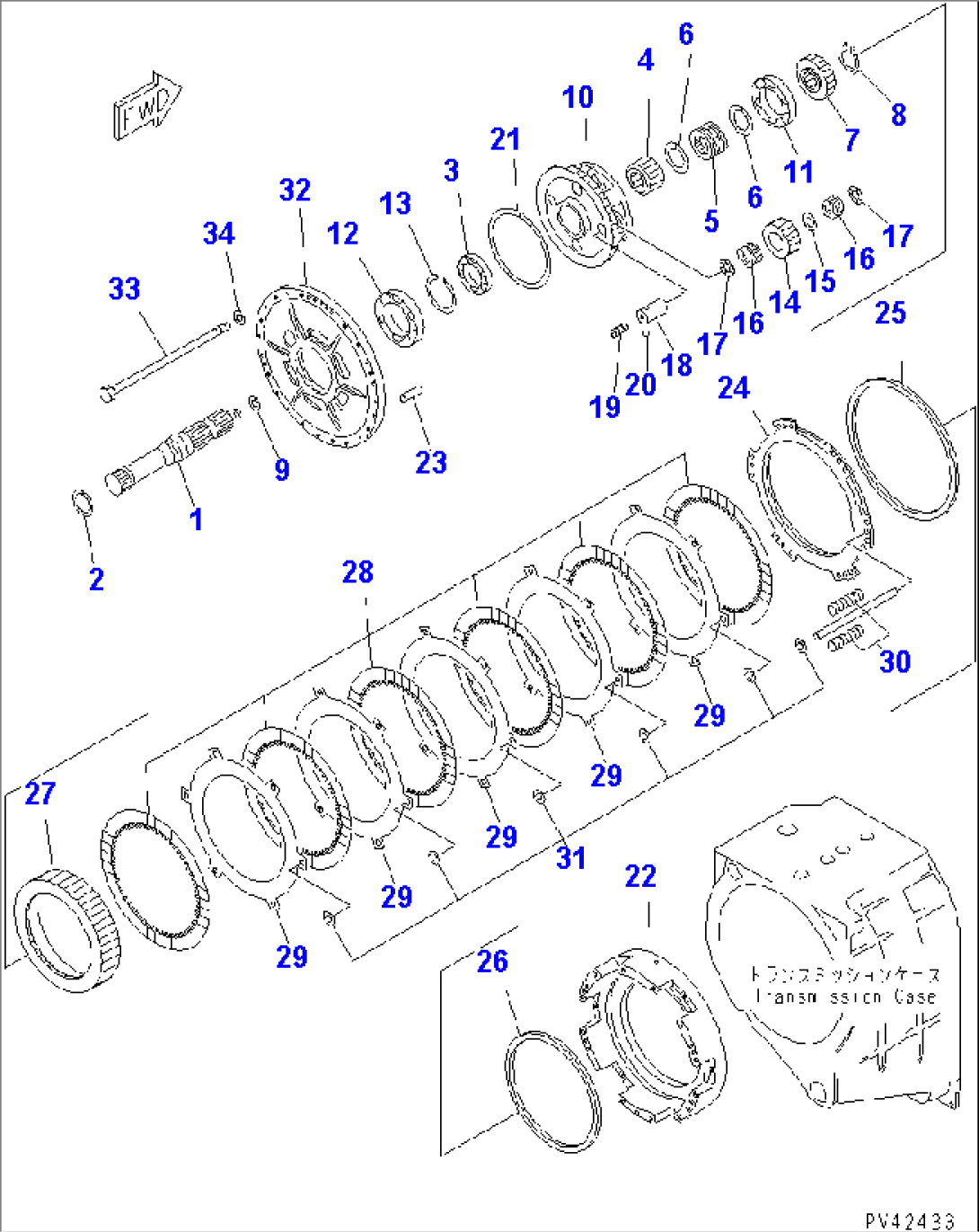

| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TORQUE CONVERTER SERIAL NO. | ||||
| (427-15-01001) | TORQFLOW ASS'Y | (1045)-(1100) | ||
| (\0\427-15-01000) | TORQFLOW ASS'Y | 10001-(1044) | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2301 TO 2524. | ||||
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (427-15-00013) | TRANSMISSION ASS'Y | (1144)- | ||
| (\0\427-15-00012) | TRANSMISSION ASS'Y | (1101)-(1143) | ||
| (427-15-00011) | TRANSMISSION ASS'Y | 10001-(1100) | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2501 TO 2524. | ||||
| 1 | 427-15-12141 | SHAFT | (1144)- | |
| 427-15-12140 | SHAFT | 10001-(1143) | ||
| 2 | 07018-10854 | RING,SEAL | 10001- | |
| 3 | 06000-06216 | BEARING | (1144)- | |
| 06000-06016 | BEARING | 10001-(1143) | ||
| 4 | 427-15-12210 | GEAR | 10001- | |
| 5 | 427-15-12150 | COLLAR | 10001- | |
| 6 | 07018-11004 | RING,SEAL | 10001- | |
| 7 | 427-15-12220 | GEAR | 10001- | |
| 8 | 04064-08025 | RING,SNAP | 10001- | |
| 9 | 07018-10352 | RING,SEAL | 10001- | |
| 10 | 427-15-12311 | CARRIER | (1144)- | |
| 427-15-12310 | CARRIER | 10001-(1143) | ||
| 11 | 06000-06926 | BEARING | 10001- | |
| 12 | 06000-06934 | BEARING | (1420)- | |
| 582-15-19470 | BEARING | (1144)-(1419) | ||
| 06000-06930 | BEARING | 10001-(1143) | ||
| 13 | 04077-00140 | RING,SNAP | (1144)- | |
| 04077-00125 | RING,SNAP | 10001-(1143) | ||
| 14 | 427-15-12410 | GEAR | 10001- | |
| 15 | 562-15-12580 | COLLAR | 10001- | |
| 16 | 582-15-19720 | BEARING | 10001- | |
| 17 | 427-15-12560 | WASHER,THRUST | 10001- | |
| 427-15-00120 | SHAFT ASS'Y | 10001- | ||
| 18 | \6\ | SHAFT | 10001- | |
| 19 | 568-15-11380 | PLUG | 10001- | |
| 20 | 04260-00635 | BALL | 10001- | |
| 21 | 427-15-19520 | RING,SNAP | 10001- | |
| 22 | 427-15-11180 | HOUSING,REVERSE | 10001- | |
| 23 | 04020-01842 | PIN,DOWEL | 10001- | |
| 24 | 198-15-22750 | PISTON,REVERSE | 10001- | |
| 25 | 198-15-29210 | RING,SEAL (K3) | 10001- | |
| 26 | 198-15-29220 | RING,SEAL (K3) | 10001- | |
| 27 | 427-15-12660 | GEAR,RING | 10001- | |
| 28 | 198-15-22710 | DISC | 10001- | |
| 29 | 198-15-22720 | PLATE | 10001- | |
| 30 | 195-15-12850 | SPRING,(L=91) | 10001- | |
| 31 | 195-15-12880 | SPRING | 10001- | |
| 32 | 427-15-11191 | HOUSING | (1144)- | |
| 427-15-11190 | HOUSING | 10001-(1143) | ||
| 33 | 427-15-11250 | BOLT | 10001- | |
| 34 | 566-15-11250 | WASHER | 10001- |
