| Item | Part No. | Part Name | Qty | Serial No. |
| (14G-15-00017) | TRANSMISSION ASS'Y | 51001- | ||
| (\1\14G-15-00016) | TRANSMISSION ASS'Y | 50373-51000 | ||
| (\0\14G-15-00015) | TRANSMISSION ASS'Y | 50001-50372 | ||

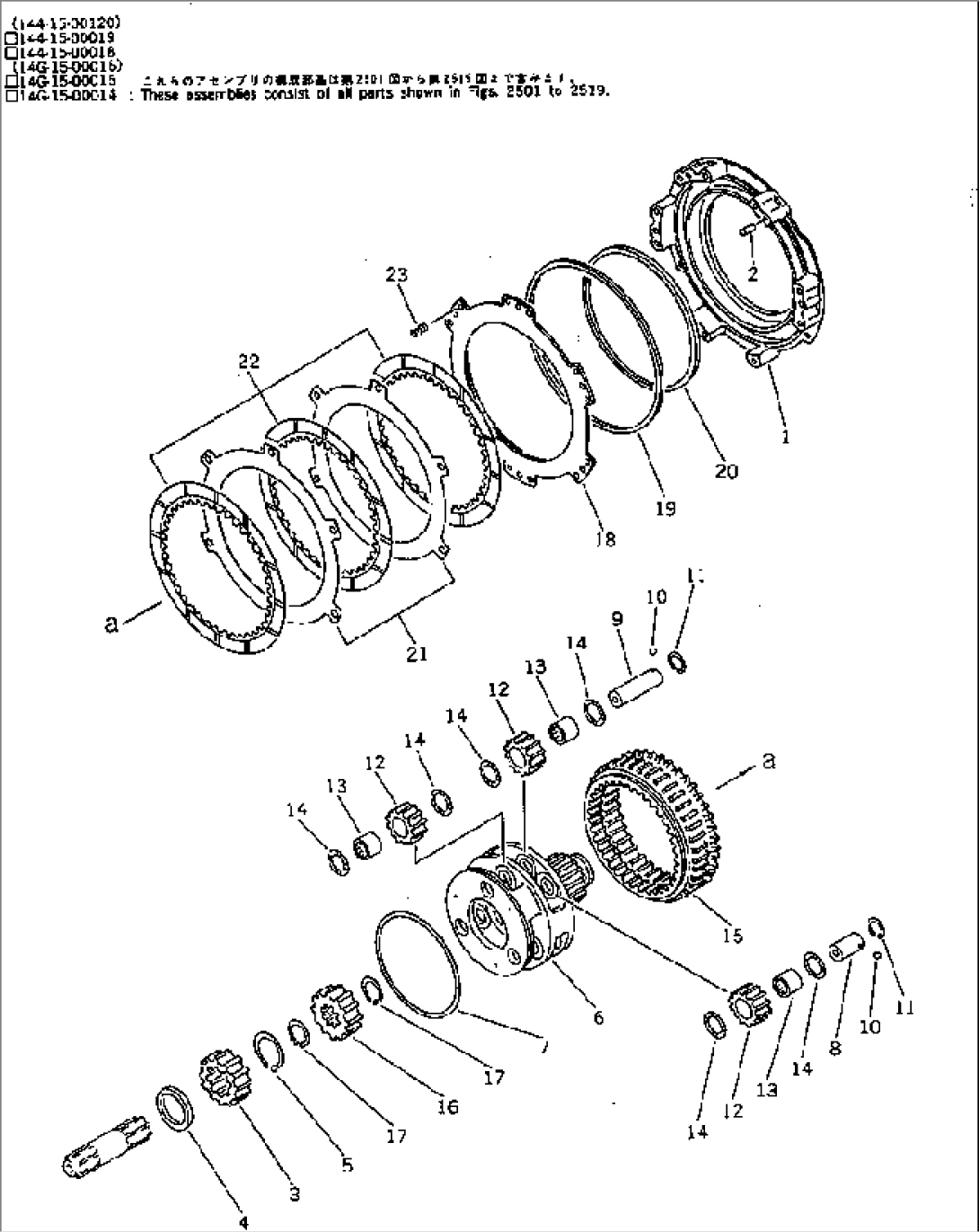

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2501 TO 2511. | ||||
| 1 | 145-15-41162 | HOUSING | 50001- | |
| 2 | 04020-01228 | PIN,DOWEL | 50001- | |
| 3 | 15B-15-12130 | GEAR | 50373- | |
| 145-15-42130 | GEAR | 50001-50372 | ||
| 4 | 145-15-42190 | BUSHING | 50001- | |
| 5 | 04064-07525 | RING,SNAP | 50001- | |
| 6 | 15B-15-12330 | CARRIER | 51001- | |
| 145-15-42331 | CARRIER | 50001-51000 | ||
| 7 | 07018-12455 | RING,SEAL | 50001- | |
| 8 | 145-15-42530 | SHAFT | 50001- | |
| 9 | 145-15-42520 | SHAFT | 50001- | |
| 10 | 04260-00635 | BALL | 50001- | |
| 11 | 04065-03815 | RING,SNAP | 50001- | |
| 12 | 145-15-42450 | GEAR | 50001- | |
| 13 | 09232-03838 | BEARING,NEEDLE | 50001- | |
| 14 | 09233-13820 | WASHER,THRUST | 50373- | |
| \0\144-15-22561 | WASHER,THRUST | 50001-50372 | ||
| 15 | 15B-15-12620 | GEAR | 50373- | |
| 145-15-42621 | GEAR | 50001-50372 | ||
| 16 | 15B-15-12140 | GEAR | 50373- | |
| 145-15-42140 | GEAR | 50001-50372 | ||
| 17 | 04064-05520 | RING,SNAP | 50373- | |
| 04064-05020 | RING,SNAP | 50001-50372 | ||
| 18 | 145-15-42740 | PISTON | 50001- | |
| 19 | 144-15-22871 | RING,SEAL | 50001- | |
| 20 | 144-15-22881 | RING,SEAL | 50001- | |
| 21 | 145-15-42760 | PLATE | 50001- | |
| 22 | 195-15-32710 | DISC | 50373- | |
| \0\154-15-12716 | DISC | 50001-50372 | ||
| 23 | 145-14-12790 | SPRING¤ (L= 59.0) | 50001- |
