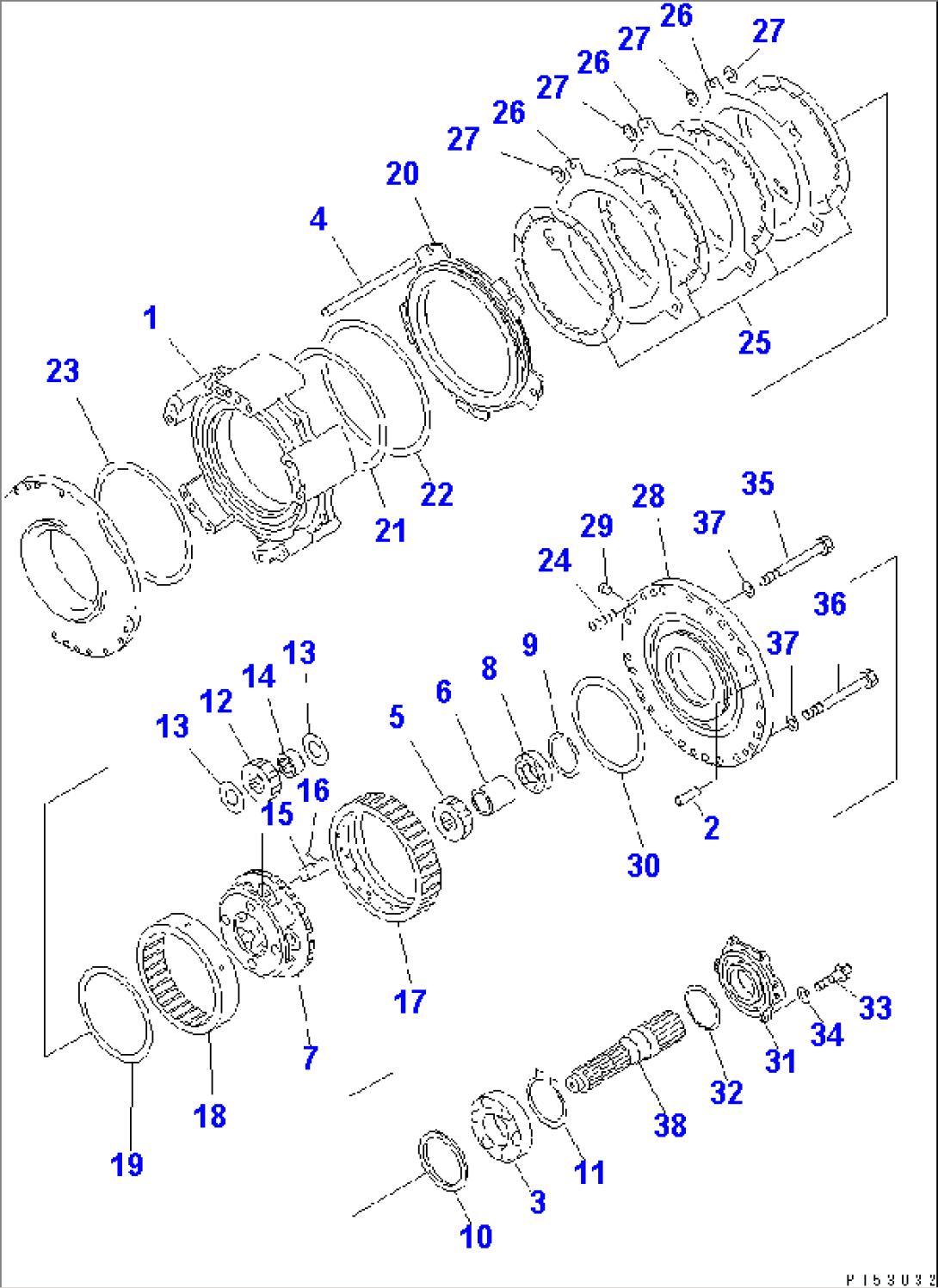

TRANSMISSION (REVERSE CLUTCH)

Item	Part No.	Part Name	Qty	Serial No.
		SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.
	(234-15-21080)	TRANSMISSION ASS'Y		12009-
	(\0\234-15-00502)	TRANSMISSION ASS'Y		11001-12008
		THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2411 TO 2471.
1	234-15-21210	HOUSING		11001-
2	04020-01228	PIN,DOWEL		11001-
3	06000-06922	BEARING		11001-
4	232-15-11270	PIN		11001-
5	235-15-12211	GEAR		11001-
6	235-15-12150	SPACER		11001-
7	235-15-12310	CARRIER		11001-
8	06000-06210	BEARING		11001-
9	04077-00090	RING,SNAP		11001-
10	234-15-22560	SPACER		11001-
11	04070-00110	RING,SNAP		11001-
12	235-15-12410	GEAR		11001-
13	09233-12920	WASHER,THRUST		11001-
14	09232-02932	BEARING		11001-
15	232-15-12530	SHAFT		11001-
16	04260-00635	BALL		11001-
17	234-15-22660	GEAR,RING		11001-
18	235-15-22640	GEAR,RING		12009-
	\0\232-15-12640	GEAR,RING		11001-12008
19	232-15-19530	RING,SNAP		11001-
20	234-15-22780	PISTON		11001-
21	232-15-19210	RING,SEAL		11001-
22	144-15-22881	RING,SEAL		11001-
23	569-15-12860	RING,SEAL		11001-
24	145-14-12790	SPRINGÂ¤ (L= 59.0)		(2400)-
	125-15-12821	SPRINGÂ¤ (L= 53.0)		11001-(2399)
25	424-15-12711	DISC		12009-
	\0\424-15-12710	DISC		11001-12008
26	134-15-12720	PLATE		11001-
27	175-15-42880	SPRING		11001-
	234-15-00230	CAGE ASS'Y		11001-
28	\6\	CAGE		11001-
29	175-15-11230	PLUG		11001-
30	07018-12005	RING,SEAL		11001-
31	234-15-21231	CAGE		11001-
32	07018-00954	RING,SEAL		11001-
33	01010-81230	BOLT		11001-
34	01643-31232	WASHER		11001-
35	234-15-21250	BOLT		11001-
36	234-15-21260	BOLT		11001-
37	145-14-11571	WASHER		(2541)-
	145-14-11570	WASHER		11001-(2540)
38	234-15-22111	SHAFT		11001-
