| Item | Part No. | Part Name | Qty | Serial No. |

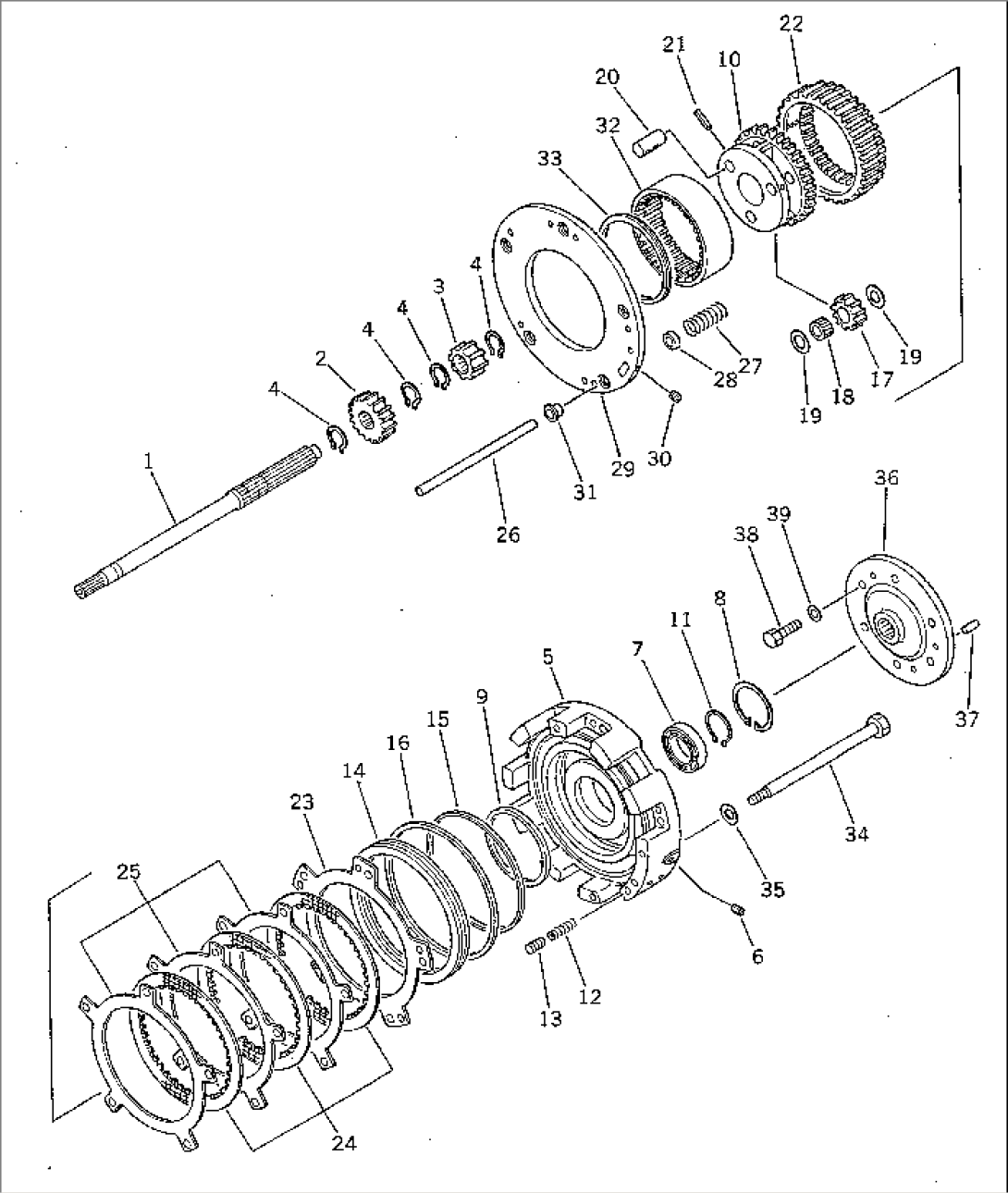

| (361-15-00100) | TRANSMISSION ASS'Y | 1001- | ||
| 1 | 361-15-12110 | SHAFT | 1001- | |
| 2 | 362-15-12220 | GEAR, 39 TEETH | 1001- | |
| 3 | 362-15-12210 | GEAR, 13 TEETH | 1001- | |
| 4 | 362-15-19550 | RING,SNAP | 1001- | |
| 362-15-00120 | HOUSING ASS'Y | 1001- | ||
| 5 | \6\ | HOUSING | 1001- | |
| 6 | 125-15-11230 | PLUG | 1001- | |
| 7 | 362-15-19330 | BEARING | 1001- | |
| 8 | 04065-06220 | RING,SNAP | 1001- | |
| 9 | 07018-01004 | RING,SEAL | 1001- | |
| 10 | 362-15-12310 | CARRIER | 1001- | |
| 11 | 04064-04018 | RING,SNAP | 1001- | |
| 12 | 195-15-15261 | SPRING | 1001- | |
| 13 | 287-15-15360 | PISTON | 1001- | |
| 14 | 362-15-12750 | PISTON | 1001- | |
| 15 | 362-15-19220 | RING,SEAL | 1001- | |
| 16 | 232-15-19270 | RING,SEAL | 1001- | |
| 17 | 362-15-12410 | GEAR, 25 TEETH | 1001- | |
| 18 | 362-15-19410 | BEARING | 1001- | |
| 19 | 113-15-32560 | WASHER | .- | |
| 19 | \0\113-15-22560 | WASHER | 1001-. | |
| 20 | 362-15-12510 | SHAFT | 1001- | |
| 21 | 04025-00312 | PIN,SPRING | 1001- | |
| 22 | 362-15-12620 | GEAR, 80 TEETH,RING | 1001- | |
| 23 | 362-15-12720 | PLATE | 1001- | |
| 24 | 113-15-22741 | DISC | 1001- | |
| 25 | 362-15-12730 | PLATE | 1001- | |
| 26 | 362-15-11270 | PIN | 1001- | |
| 27 | 362-15-12960 | SPRING | 1001- | |
| 28 | 362-15-12820 | SPACER | 1001- | |
| 362-15-00111 | HOUSING ASS'Y | 1001- | ||
| 29 | \6\ | PLATE | 1001- | |
| 30 | 125-15-11230 | PLUG | 1001- | |
| 31 | 362-15-12810 | GUIDE | 1001- | |
| 32 | 362-15-12610 | GEAR, 74 TEETH,RING | 1001- | |
| 33 | 362-15-19520 | RING,SNAP | 1001- | |
| 34 | 362-15-11240 | BOLT | 1001- | |
| 35 | 362-15-11260 | WASHER | 1001- | |
| 36 | 361-15-12181 | COUPLING | 1001- | |
| 37 | 04020-00820 | PIN,DOWEL | 1001- | |
| 38 | 01010-51030 | BOLT | 1001- | |
| 39 | 01643-31032 | WASHER | 1001- |
