| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (567-15-41002) | TRANSMISSION ASS'Y | 1061- | ||
| (567-15-41001) | TRANSMISSION ASS'Y | 1001-1060 | ||

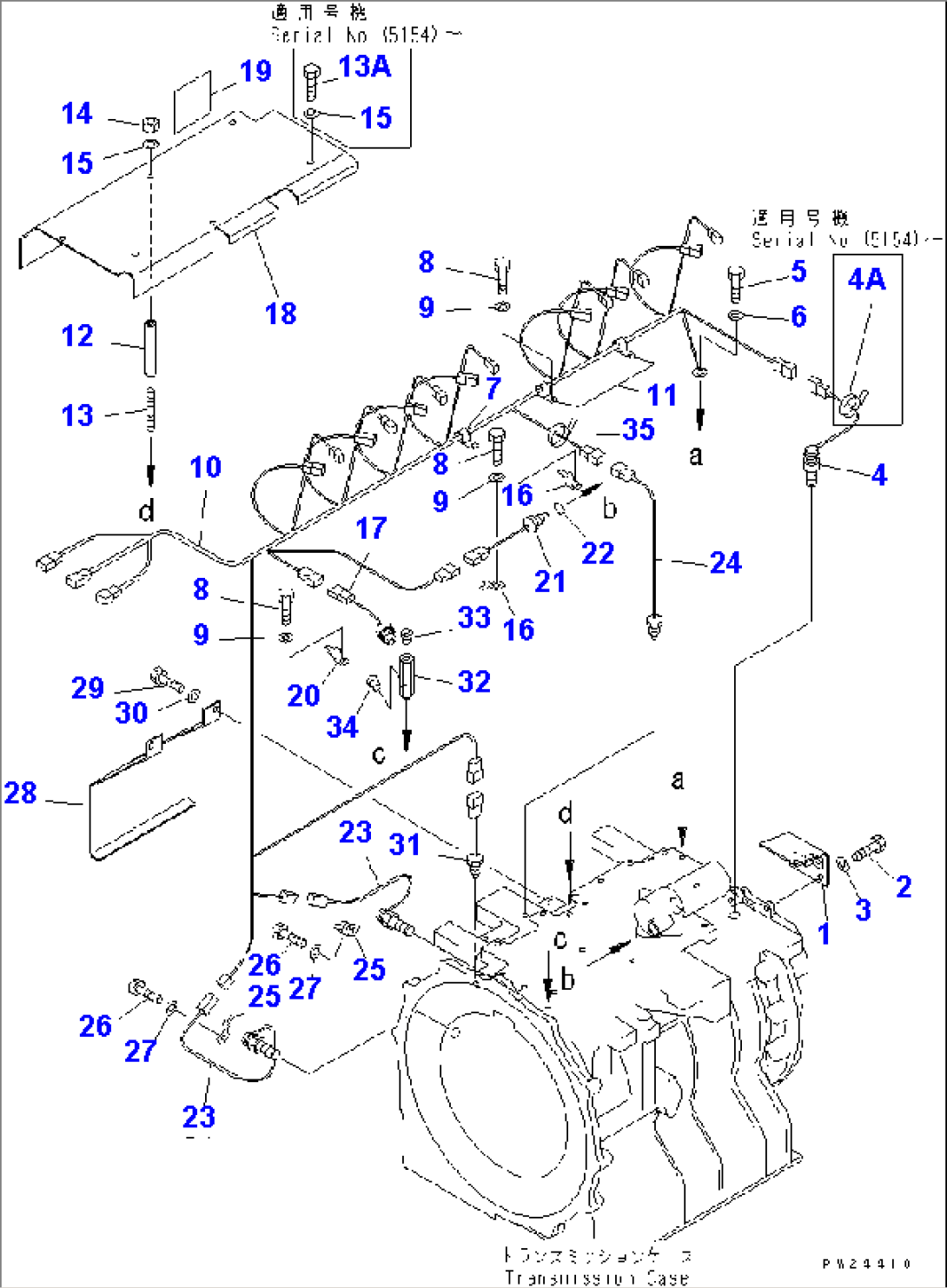

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3320-51A0 TO F3320-62A0. | ||||
| 1 | 567-15-48130 | COVER | 1001- | |
| 2 | 01010-81020 | BOLT | 1001- | |
| 3 | 01643-31032 | WASHER | 1001- | |
| 4 | 7861-92-2330 | SENSOR,PICK-UP | 1001- | |
| 4A | 08034-00414 | BAND | (5154)- | |
| 5 | 01010-81020 | BOLT | 1001- | |
| 6 | 01643-31032 | WASHER | 1001- | |
| 7 | 08036-22514 | CLIP | 1001- | |
| 8 | 01010-81045 | BOLT | 1001- | |
| 9 | 01643-31032 | WASHER | 1001- | |
| 10 | 567-15-45821 | WIRING HARNESS | 1001- | |
| 11 | 08036-21814 | CLIP | 1001- | |
| 12 | 11T-61-15740 | SPACER | (4638)- | |
| 12 | 561-15-55910 | SPACER | 1001-(4637) | |
| 13 | 425-15-25870 | STUD | (5154)- | |
| 13 | 425-15-25870 | STUD | (4638)-(5153) | |
| 13 | 561-15-55940 | STUD | 1001-(4637) | |
| 13A | 01011-81060 | BOLT | (5154)- | |
| 14 | 01580-11008 | NUT | (5154)- | |
| 14 | 01580-11008 | NUT | 1001-(5153) | |
| 15 | 01643-31032 | WASHER | 1001- | |
| 16 | 08053-01512 | CLIP | 1001- | |
| 17 | 7861-92-1670 | SENSOR,PRESSURE | 1001- | |
| 18 | 567-15-45861 | COVER | (4638)- | |
| 18 | 567-15-45860 | COVER | 1001-(4637) | |
| 19 | 567-15-49810 | PLATE | (4638)- | |
| 20 | 08053-01512 | CLIP | 1001- | |
| 21 | 7861-92-3360 | SENSOR,TEMPERATURE | 1001- | |
| 22 | 07002-01823 | O-RING (K2) | 1001- | |
| 23 | 7861-92-2330 | SENSOR,PICK-UP | 1001- | |
| 24 | 7861-92-1670 | SENSOR,PRESSURE | 1001- | |
| 25 | 08053-01512 | CLIP | 1001- | |
| 26 | 01010-81020 | BOLT | 1001- | |
| 27 | 01643-31032 | WASHER | 1001- | |
| 28 | 567-15-48120 | COVER | 1001- | |
| 29 | 01010-81020 | BOLT | 1001- | |
| 30 | 01643-31032 | WASHER | 1001- | |
| 31 | 08620-10000 | SENSOR,T/C OIL TEMPERATURE | 1001- | |
| 32 | 562-13-46911 | ELBOW | (5251)- | |
| 32 | 562-13-46910 | ELBOW | 1001-(5250) | |
| 33 | 07043-70108 | PLUG | 1001- | |
| 34 | 07043-70312 | PLUG | 1001- | |
| 35 | 08034-00414 | BAND | 1001- |
