| Item | Part No. | Part Name | Qty | Serial No. |

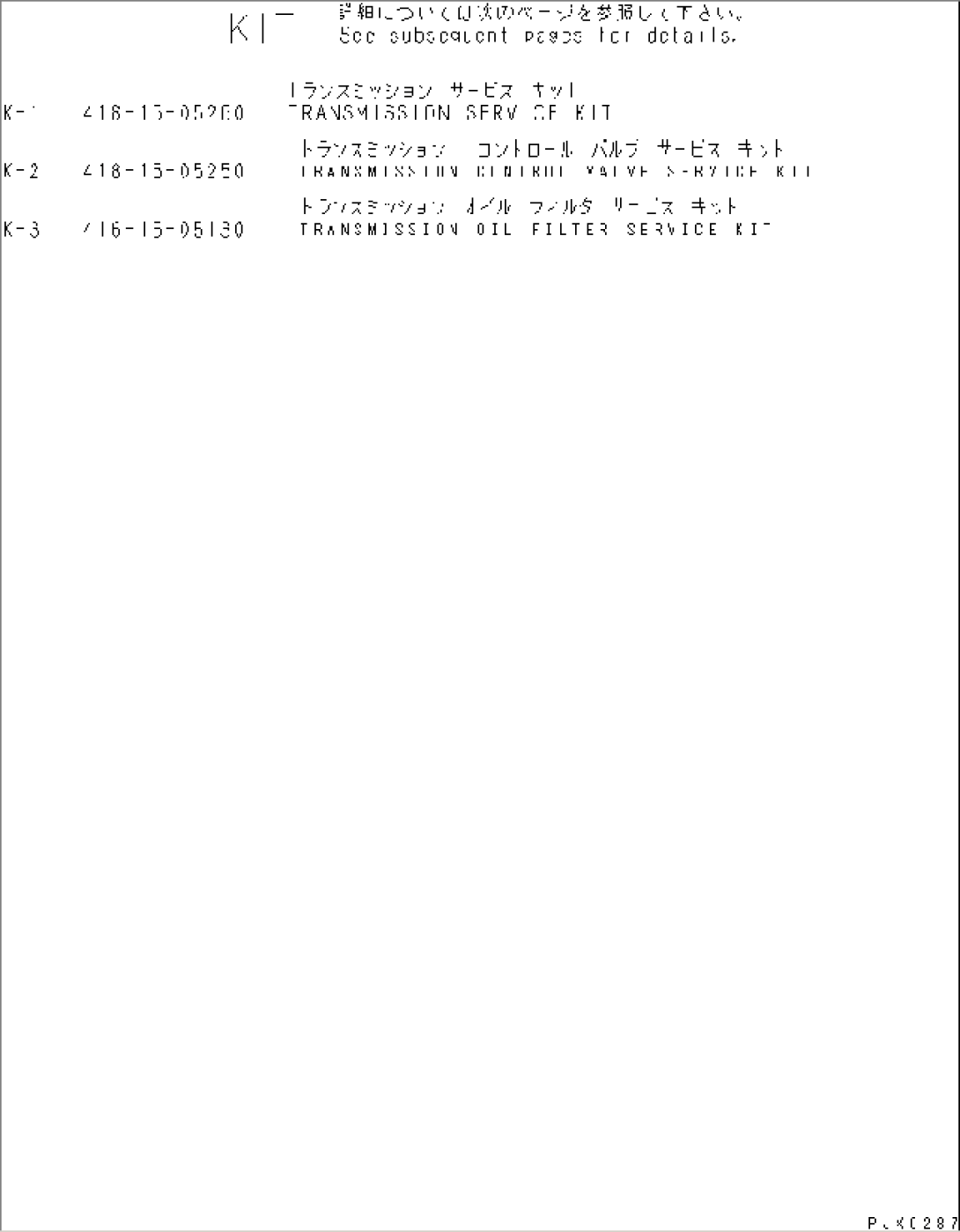

| 1 | 418-15-05260 | SERVICE KIT,TRANSMISSION | 10001- | |
| 1 | 07018-31004 | RING,SEAL | 10001- | |
| 1 | 424-13-11110 | O-RING | 10001- | |
| 1 | 07000-02065 | O-RING | 10001- | |
| 1 | 07002-02434 | O-RING | 10001- | |
| 1 | 07000-05220 | O-RING | 10001- | |
| 1 | 07000-02105 | O-RING | 10001- | |
| 1 | 419-15-18131 | LIQUID GASKET,(NOT SHOWN) | 10001- | |
| 1 | 419-15-12210 | RING,SEAL | 10001- | |
| 1 | 418-15-11560 | RING,SEAL | 10001- | |
| 1 | 419-15-12121 | RING,SEAL | 10001- | |
| 1 | 419-15-12210 | RING,SEAL | 10001- | |
| 1 | 418-15-11560 | RING,SEAL | 10001- | |
| 1 | 419-15-12210 | RING,SEAL | 10001- | |
| 1 | 419-15-12580 | RING,SEAL | 10001- | |
| 1 | 419-15-12121 | RING,SEAL | 10001- | |
| 1 | 419-15-12210 | RING,SEAL | 10001- | |
| 1 | 419-15-12580 | RING,SEAL | 10001- | |
| 1 | 419-15-12210 | RING,SEAL | 10001- | |
| 1 | 419-15-12580 | RING,SEAL | 10001- | |
| 1 | 419-15-12121 | RING,SEAL | 10001- | |
| 1 | 419-15-12210 | RING,SEAL | 10001- | |
| 1 | 419-15-12580 | RING,SEAL | 10001- | |
| 1 | 07000-02075 | O-RING | 10001- | |
| 1 | 419-15-13650 | SEAL,OIL | 10001- | |
| 1 | 07000-02130 | O-RING | 10001- | |
| 1 | 419-15-13620 | SHIM, 0.05MM | 10001- | |
| 1 | 419-15-13630 | SHIM, 0.1MM | 10001- | |
| 1 | 419-15-13640 | SHIM, 0.2MM | 10001- | |
| 1 | 07000-32055 | O-RING | 10001- | |
| 1 | 419-15-13650 | SEAL,OIL | 10001- | |
| 1 | 419-15-13660 | SEAL,DUST | 10001- | |
| 1 | 419-15-16821 | GASKET | 10001- | |
| 1 | 07000-02085 | O-RING | 10001- | |
| 1 | 07000-03048 | O-RING | 10001- | |
| 1 | 07000-02105 | O-RING | 10001- | |
| 1 | 07000-03028 | O-RING | 10001- | |
| 1 | 07002-03334 | O-RING | 10001- | |
| 1 | 07002-02434 | O-RING | 10001- | |
| 2 | 418-15-05250 | SERVICE KIT,CONTROL VALVE | 10001- | |
| 2 | 07000-03035 | O-RING | 10001- | |
| 2 | 419-15-15750 | GASKET | 10001- | |
| 2 | 07000-01009 | O-RING | 10001- | |
| 2 | 419-15-15740 | GASKET | 10001- | |
| 2 | 419-15-16811 | GASKET | 10001- | |
| 2 | 419-15-16950 | O-RING | 10001- | |
| 2 | 07000-02014 | O-RING | 10001- | |
| 2 | 419-15-16650 | SHIM, 1.0MM | 10001- | |
| 2 | 419-15-16540 | GASKET | 10001- | |
| 2 | 419-15-16840 | O-RING | 10001- | |
| 2 | 419-15-16830 | O-RING | 10001- | |
| 2 | 07000-02010 | O-RING | 10001- | |
| 2 | 419-15-16550 | GASKET | 10001- | |
| 3 | 416-15-05130 | SERVICE KIT,OIL FILTER | 10001- | |
| 3 | 07002-01223 | O-RING | 10001- | |
| 3 | 419-15-14870 | GASKET | 10001- | |
| 3 | 424-16-11130 | O-RING | 10001- | |
| 3 | 419-15-14860 | O-RING | 10001- |
