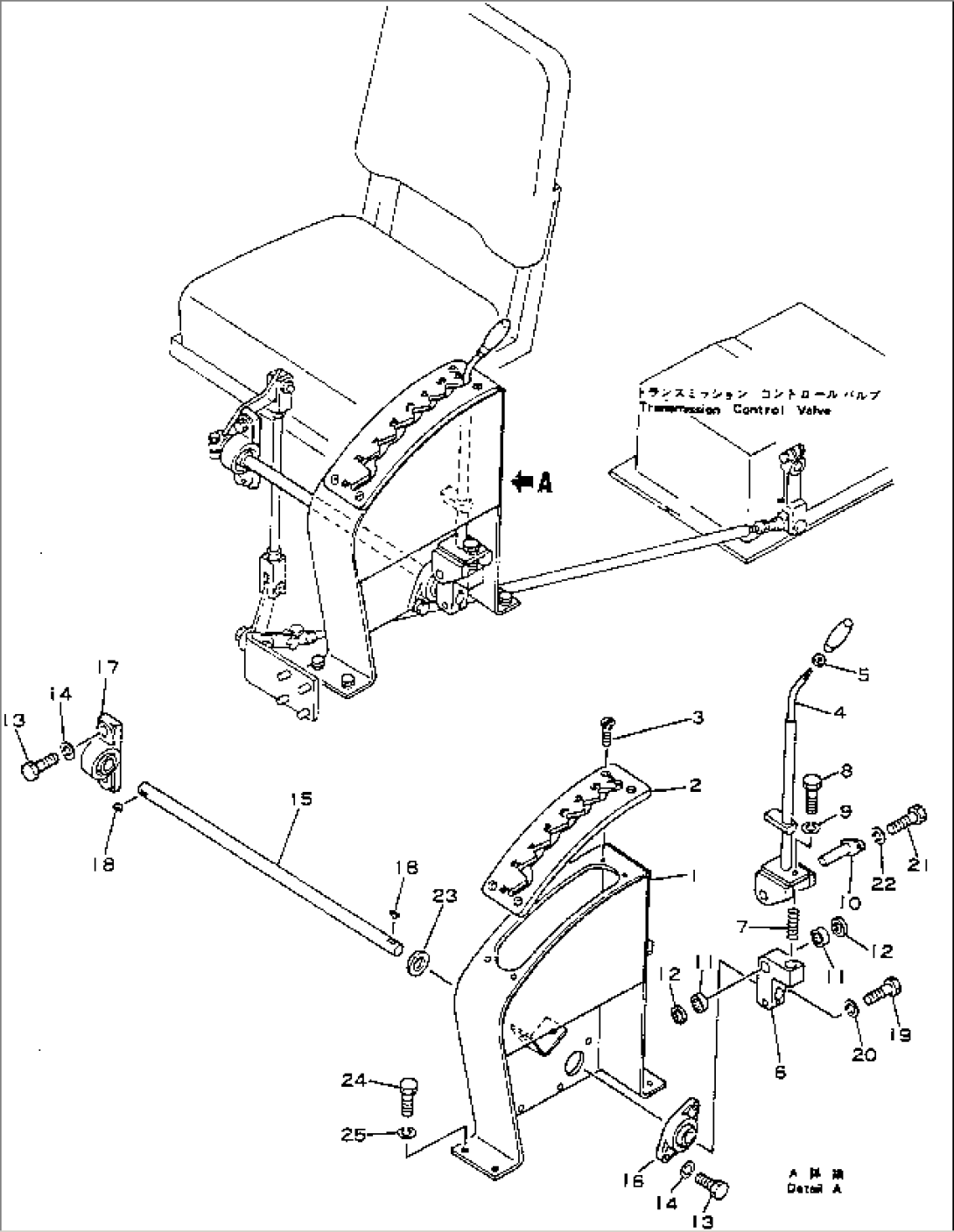

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-43-16115 | CONSOLE | 1002- | |
| 2 | 281-43-14121 | GUIDE | 1002- | |
| 3 | 01225-40820 | SCREW | 1002- | |
| 4 | 566-43-16213 | LEVER | 1002- | |
| 5 | 01580-11210 | NUT | 1002- | |
| 6 | 566-43-16182 | BOSS | 1002- | |
| 7 | 281-43-14250 | SPRING | 1002- | |
| 8 | 01010-50816 | BOLT | 1002- | |
| 9 | 01602-20825 | WASHER | 1002- | |
| 10 | 566-43-16260 | PIN | 1002- | |
| 11 | 06120-01612 | BEARING | 1002- | |
| 12 | 06122-01603 | SEAL | 1002- | |
| 13 | 01010-51025 | BOLT | 1002- | |
| 14 | 01602-21030 | WASHER | 1002- | |
| 15 | 566-43-16223 | SHAFT | 1002- | |
| 16 | 565-43-17370 | BEARING | 1002- | |
| 17 | 567-43-16320 | BEARING | 1002- | |
| 18 | 04010-00519 | KEY | 1002- | |
| 19 | 01010-50835 | BOLT | 1002- | |
| 20 | 01602-20825 | WASHER | 1002- | |
| 21 | 01010-50816 | BOLT | 1002- | |
| 22 | 01602-20825 | WASHER | 1002- | |
| 23 | 08037-02512 | GROMMET | 1002- | |
| 24 | 01010-51225 | BOLT | 1002- | |
| 25 | 01602-21236 | WASHER | 1002- |
