| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (425-15-21004) | TRANSMISSION ASS'Y | 50752- | ||
| (\2\425-15-21003) | TRANSMISSION ASS'Y | (50752-52403) | ||
| (425-15-21002) | TRANSMISSION ASS'Y | 50435-50751 | ||
| (425-15-21001) | TRANSMISSION ASS'Y | 50001-50434 | ||

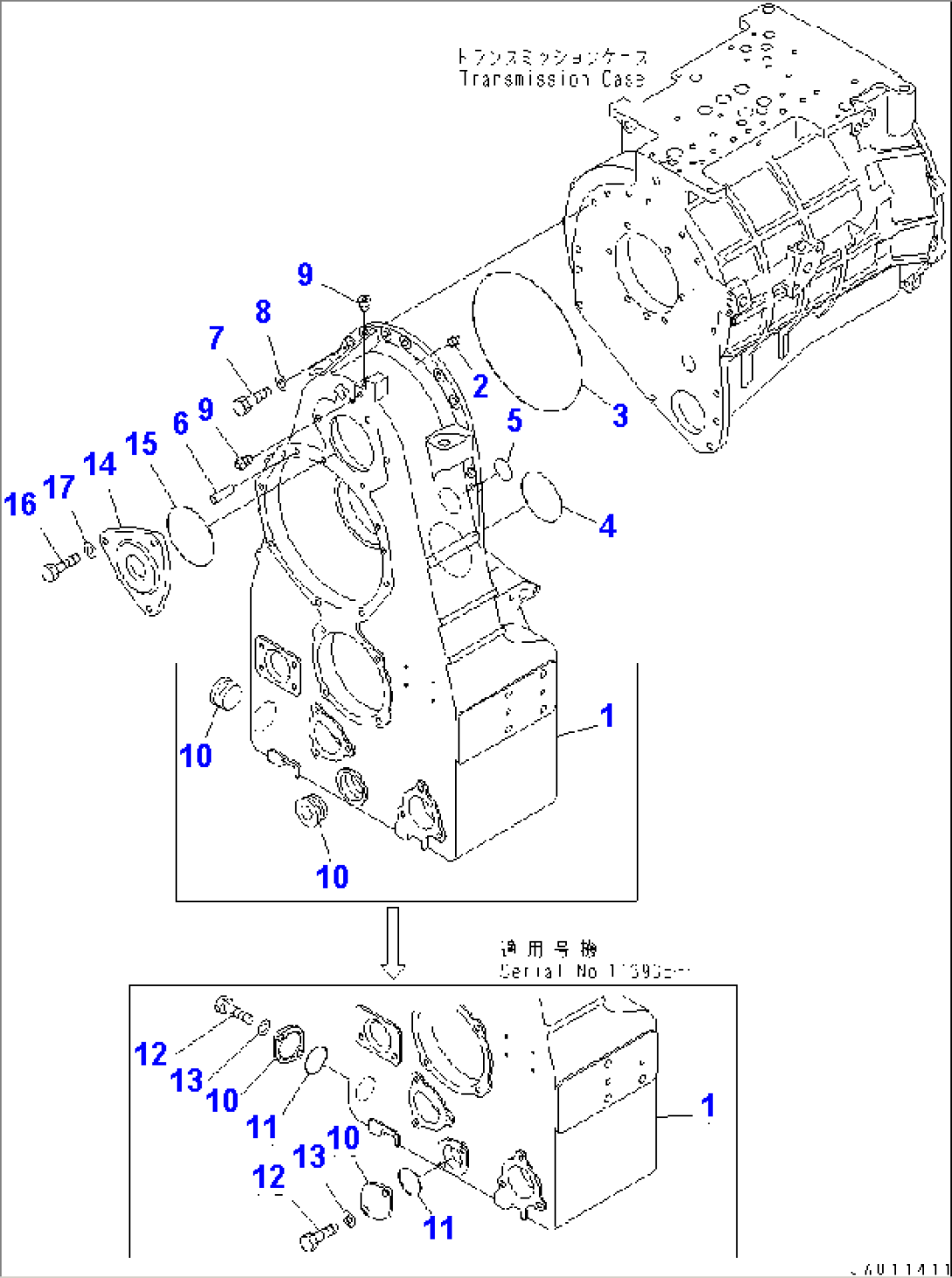

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F4320-51A0 TO F4320-70A0. | ||||
| 1 | 425-15-23112 | CASE,TRANSFER | (113935)- | |
| 1 | 425-15-23111 | CASE,TRANSFER | 50001-(113934) | |
| 2 | 711-21-13850 | NOZZLE | 50001- | |
| 3 | 07000-75295 | O-RING (K2) | 50001- | |
| 4 | 07000-72110 | O-RING (K2) | 50001- | |
| 5 | 07000-73050 | O-RING (K2) | 50001- | |
| 6 | 04020-01638 | PIN,DOWEL | 50001- | |
| 7 | 01010-81235 | BOLT | 50001- | |
| 8 | 01643-31232 | WASHER | 50001- | |
| 9 | 07043-70108 | PLUG | 50001- | |
| 10 | 425-15-23790 | FLANGE | (113935)- | |
| 10 | 07043-72026 | PLUG | 50001-(113934) | |
| 11 | 07000-72060 | O-RING (K2) | (113935)- | |
| 12 | 01010-81025 | BOLT | (113935)- | |
| 13 | 01643-31032 | WASHER | (113935)- | |
| 14 | 421-15-13810 | COVER | 50001-(113934) | |
| 15 | 07000-72130 | O-RING (K2) | 50001- | |
| 16 | 01010-81235 | BOLT | 50001- | |
| 17 | 01643-31232 | WASHER | 50001- |
