| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||

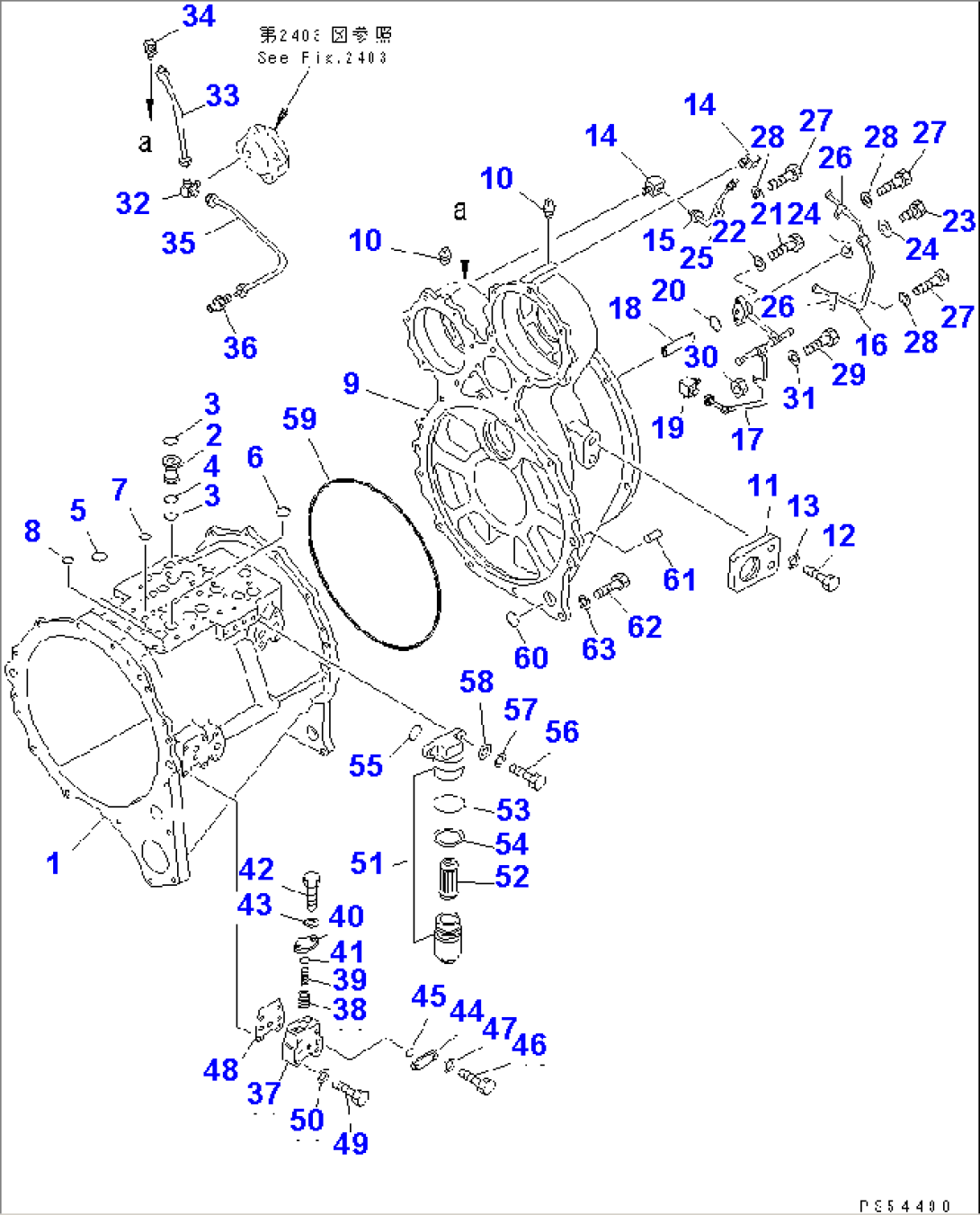

| 235-15-00020 | TRANSMISSION ASS'Y | 11001-(1190) | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2401 TO 2459. | ||||
| 1 | 235-15-11111 | CASE | 11001-(1190) | |
| 2 | 235-15-11310 | SLEEVE | 11001-(1190) | |
| 3 | 07000-72021 | O-RING | 11001-(1190) | |
| 4 | 07000-73022 | O-RING | 11001-(1190) | |
| 5 | 07000-73025 | O-RING | 11001-(1190) | |
| 6 | 07000-73028 | O-RING | 11001-(1190) | |
| 7 | 07000-72021 | O-RING | 11001-(1190) | |
| 8 | 07000-72014 | O-RING | 11001-(1190) | |
| 9 | 235-15-11812 | CASE | 11001-(1190) | |
| 10 | 07042-20108 | PLUG | 11001-(1190) | |
| 11 | 195-15-41710 | PLATE | 11001-(1190) | |
| 12 | 01010-62050 | BOLT | 11001-(1190) | |
| 13 | 01643-32060 | WASHER | 11001-(1190) | |
| 14 | 568-13-16560 | ELBOW | 11001-(1190) | |
| 15 | 235-15-11370 | TUBE | 11001-(1190) | |
| 16 | 235-15-11361 | TUBE | 11001-(1190) | |
| 17 | 235-15-11351 | TUBE | 11001-(1190) | |
| 18 | 235-15-11340 | TUBE | 11001-(1190) | |
| 19 | 22W-44-14580 | ELBOW | 11001-(1190) | |
| 20 | 07000-72015 | O-RING | 11001-(1190) | |
| 21 | 01010-50825 | BOLT | 11001-(1190) | |
| 22 | 01602-20825 | WASHER,SPRING | 11001-(1190) | |
| 23 | 07206-30812 | BOLT,JOINT | 11001-(1190) | |
| 24 | 07005-01212 | SEAL, WASHER | 11001-(1190) | |
| 25 | 04434-00608 | CLIP | 11001-(1190) | |
| 26 | 04434-00808 | CLIP | 11001-(1190) | |
| 27 | 01010-50816 | BOLT | 11001-(1190) | |
| 28 | 01643-30823 | WASHER | 11001-(1190) | |
| 29 | 01010-50840 | BOLT | 11001-(1190) | |
| 30 | 01580-10806 | NUT | 11001-(1190) | |
| 31 | 01643-30823 | WASHER | 11001-(1190) | |
| 32 | 235-15-11330 | TEE | 11001-(1190) | |
| 33 | 235-15-11381 | TUBE | 11001-(1190) | |
| 34 | 207-70-11740 | ELBOW | 11001-(1190) | |
| 35 | 235-15-11390 | TUBE | 11001-(1190) | |
| 36 | 207-70-11730 | NIPPLE | 11001-(1190) | |
| 134-15-00160 | VALVE ASS'Y,LUBRICATING | 11001-(1190) | ||
| 37 | 125-15-14112 | BODY | 11001-(1190) | |
| 38 | 125-15-14142 | PISTON | 11001-(1190) | |
| 39 | 125-15-14152 | SPRING,(L=44) | 11001-(1190) | |
| 40 | 125-15-14131 | COVER | 11001-(1190) | |
| 41 | 07000-73025 | O-RING | 11001-(1190) | |
| 42 | 01010-50820 | BOLT | 11001-(1190) | |
| 43 | 01643-30823 | WASHER | 11001-(1190) | |
| 44 | 235-15-14170 | PLATE | 11001-(1190) | |
| 45 | 07000-72021 | O-RING | 11001-(1190) | |
| 46 | 01010-51025 | BOLT | 11001-(1190) | |
| 47 | 01643-31032 | WASHER | 11001-(1190) | |
| 48 | 135-15-34121 | GASKET | (1144)-(1190) | |
| 48 | \0\135-15-34120 | GASKET | 11001-(1143) | |
| 49 | 01010-51055 | BOLT | 11001-(1190) | |
| 50 | 01643-31032 | WASHER | 11001-(1190) | |
| 51 | 426-15-16510 | FILTER ASS'Y | 11001-(1190) | |
| 52 | 209-38-12470 | ELEMENT | 11001-(1190) | |
| 53 | 209-38-12480 | O-RING | 11001-(1190) | |
| 54 | 209-38-12490 | RING | 11001-(1190) | |
| 55 | 07000-72014 | O-RING | 11001-(1190) | |
| 56 | 01010-51035 | BOLT | 11001-(1190) | |
| 57 | 01602-21030 | WASHER,SPRING | 11001-(1190) | |
| 58 | 01641-21016 | WASHER | 11001-(1190) | |
| 59 | 07000-05445 | O-RING | 11001-(1190) | |
| 60 | 07000-73045 | O-RING | 11001-(1190) | |
| 61 | 04020-01638 | PIN,DOWEL | 11001-(1190) | |
| 62 | 01010-51235 | BOLT | 11001-(1190) | |
| 63 | 01643-31232 | WASHER | 11001-(1190) |
