| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (714-12-20001) | TRANSMISSION ASS'Y | (10320)- | ||
| (714-12-20000) | TRANSMISSION ASS'Y | 60001-(10319) | ||
| (714-12-20011) | TRANSMISSION ASS'Y,(WITH LOCK-UP) | (10320)- | ||
| (714-12-20010) | TRANSMISSION ASS'Y,(WITH LOCK-UP) | 60001-(10319) | ||
| (714-12-20101) | TRANSMISSION ASS'Y,(FOR TACHOGRAPH) | (10320)- | ||
| (714-12-20100) | TRANSMISSION ASS'Y,(FOR TACHOGRAPH) | 60001-(10319) | ||
| (714-12-20111) | TRANSMISSION ASS'Y,(FOR TACHOGRAPH AND LOCK-UP) | (10320)- | ||
| (714-12-20110) | TRANSMISSION ASS'Y,(FOR TACHOGRAPH AND LOCK-UP) | 60001-(10319) | ||

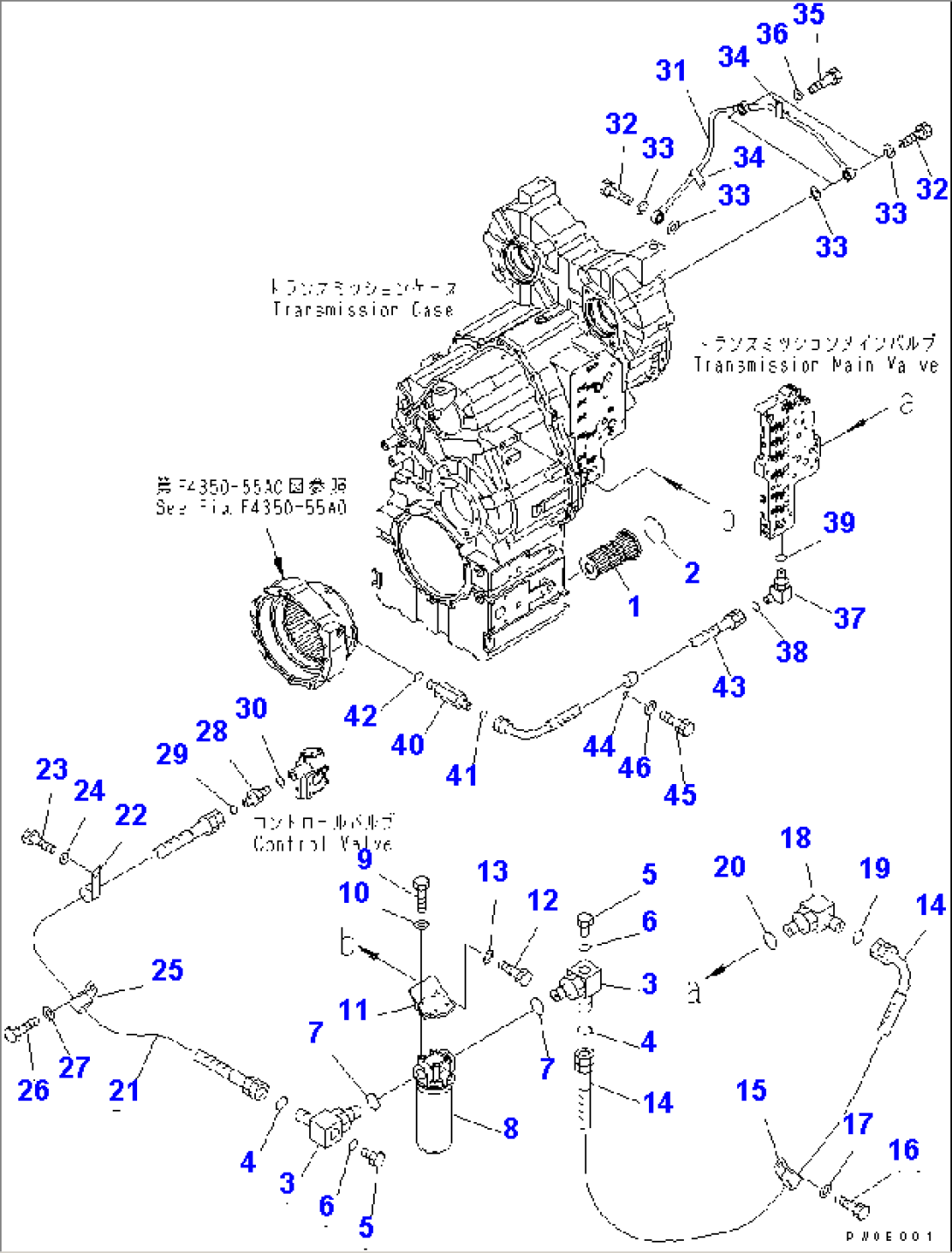

| THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 TO F4350-63A0. | ||||
| 1 | 56D-15-19310 | STRAINER | 60001- | |
| 2 | 07000-15085 | O-RING (K1) | 60001- | |
| 3 | 714-07-28100 | ELBOW | 60001- | |
| 4 | 02896-11018 | O-RING (K1) | 60001- | |
| 5 | 07040-11007 | PLUG | 60001- | |
| 6 | 07002-11023 | O-RING (K1) | 60001- | |
| 7 | 07002-13334 | O-RING (K1) | 60001- | |
| 8 | 714-07-28701 | FILTER ASS'Y | 60001- | |
| 714-07-28711 | CARTRIDGE | 60001- | ||
| 9 | 01010-81030 | BOLT | 60001- | |
| 10 | 01643-31032 | WASHER | 60001- | |
| 11 | 714-12-28751 | SUPPORT | 60001- | |
| 12 | 01010-81230 | BOLT | 60001- | |
| 13 | 01643-31232 | WASHER | 60001- | |
| 14 | 714-07-28810 | HOSE | (110385)- | |
| 02763-00610 | HOSE | 60001-(110384) | ||
| 15 | 04434-52511 | CLIP | 60001- | |
| 16 | 01010-81020 | BOLT | 60001- | |
| 17 | 01643-31032 | WASHER | 60001- | |
| 18 | 02782-10628 | ELBOW | 60001- | |
| 19 | 02896-11018 | O-RING (K1) | 60001- | |
| 20 | 07002-12434 | O-RING (K1) | 60001- | |
| 21 | 714-12-28790 | HOSE | (110435)- | |
| 02762-006A9 | HOSE | 60001-(110434) | ||
| 22 | 04434-52511 | CLIP | 60001- | |
| 23 | 01010-81020 | BOLT | 60001- | |
| 24 | 01643-31032 | WASHER | 60001- | |
| 25 | 04434-52512 | CLIP | 60001- | |
| 26 | 01010-81225 | BOLT | 60001- | |
| 27 | 01643-31232 | WASHER | 60001- | |
| 28 | 02781-00628 | UNION | 60001- | |
| 29 | 02896-11018 | O-RING (K1) | 60001- | |
| 30 | 07002-12434 | O-RING (K1) | 60001- | |
| 31 | 714-12-28890 | TUBE | 60001- | |
| 32 | 07206-30710 | BOLT | 60001- | |
| 33 | 07005-01012 | GASKET | 60001- | |
| 34 | 04434-50610 | CLIP | 60001- | |
| 35 | 01010-81020 | BOLT | 60001- | |
| 36 | 01643-31032 | WASHER | 60001- | |
| 37 | 21W-62-42490 | ELBOW | 60001- | |
| 38 | 02896-11009 | O-RING (K1) | 60001- | |
| 39 | 07002-11423 | O-RING (K1) | 60001- | |
| 40 | 20U-62-41710 | NIPPLE | 60001- | |
| 41 | 02896-11009 | O-RING (K1) | 60001- | |
| 42 | 07002-11423 | O-RING (K1) | 60001- | |
| 43 | 02766-00305 | HOSE | 60001- | |
| 44 | 04434-51610 | CLIP | 60001- | |
| 45 | 01010-81020 | BOLT | 60001- | |
| 46 | 01643-31032 | WASHER | 60001- |
