| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (714-07-10041) | TRANSMISSION ASS'Y,(FOR EMERGENCY STEERING) | 54001- | ||
| (714-07-10050) | TRANSMISSION ASS'Y,(FOR EMERGENCY STEERING) | 53001-54000 | ||

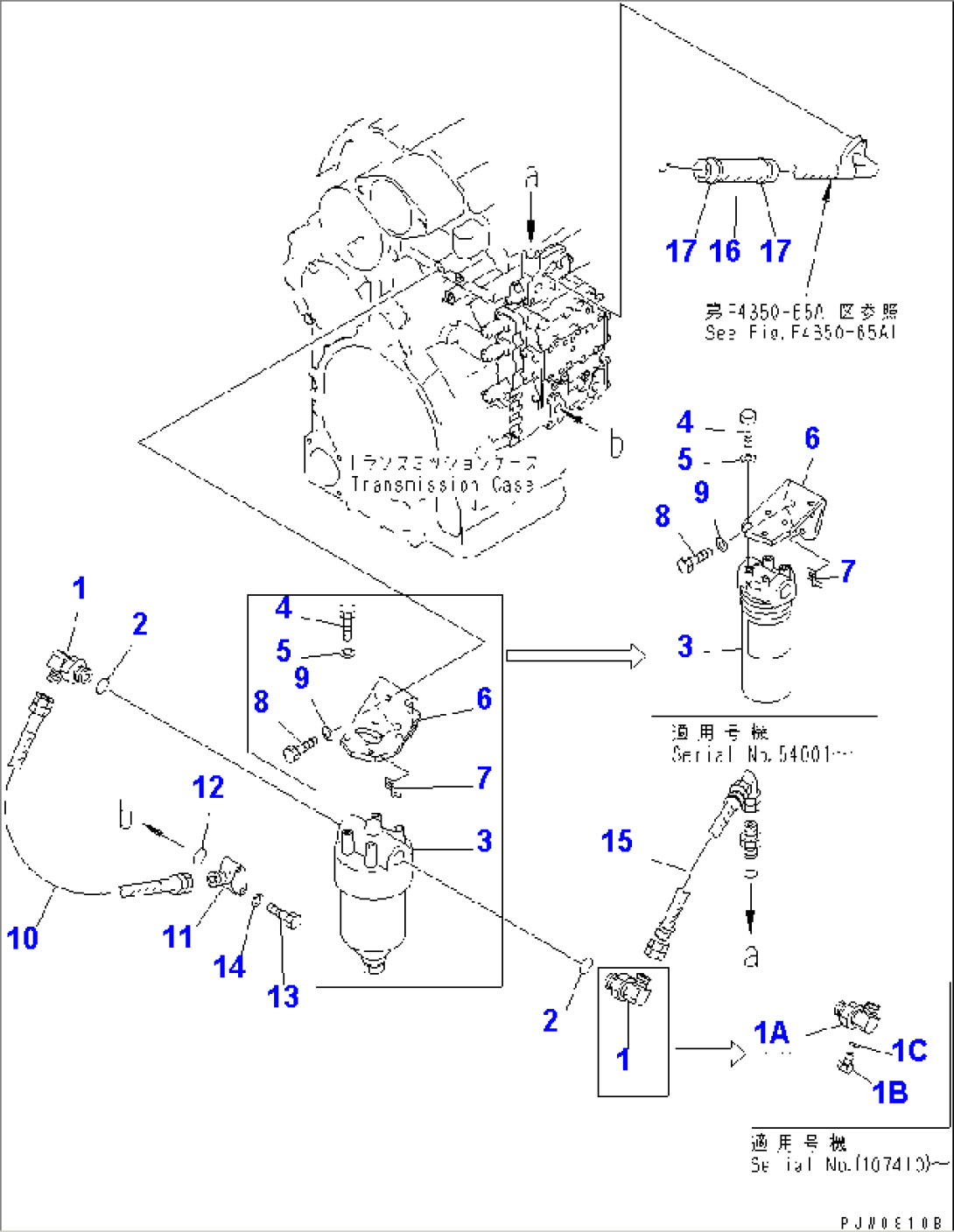

| THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 TO F4350-69A0. | ||||
| 1 | 421-16-11650 | ELBOW | (107410)- | |
| 421-16-11650 | ELBOW | 53001-(107409) | ||
| 1A | 714-11-18100 | ELBOW | (107410)- | |
| 1B | 07040-11007 | PLUG | (107410)- | |
| 1C | 07002-11023 | O-RING (K3) | (107410)- | |
| 2 | 07002-03334 | O-RING (K3) | 53001- | |
| 3 | 714-07-28701 | FILTER ASS'Y,TRANSMISSION OIL | 55065- | |
| 714-07-28700 | FILTER ASS'Y,TRANSMISSION OIL | 54001-(107814) | ||
| 714-07-28711 | CARTRIDGE | 55065- | ||
| 714-07-28710 | CARTRIDGE ASS'Y | 54001-(107814) | ||
| (419-15-14800) | FILTER ASS'Y,TRANSMISSION OIL | 53001-54000 | ||
| 4 | 01010-81035 | BOLT | 53001- | |
| 5 | 01643-31032 | WASHER | 53001- | |
| 6 | 714-07-18760 | SUPPORT | 54001- | |
| 714-07-14571 | SUPPORT | (106810)-(107071) | ||
| 714-07-14570 | SUPPORT | 53001-(106809) | ||
| 7 | 08053-01512 | CLIP | 53001- | |
| 8 | 01010-81235 | BOLT | 53001- | |
| 9 | 01643-31232 | WASHER | 53001- | |
| 10 | 203-62-64480 | HOSE | (106810)- | |
| 07102-20607 | HOSE | 53001-(106809) | ||
| 11 | 714-07-14580 | ELBOW | 53001- | |
| 12 | 07000-73028 | O-RING (K3) | 53001- | |
| 13 | 01010-81060 | BOLT | 53001- | |
| 14 | 01643-31032 | WASHER | 53001- | |
| 15 | 714-07-14770 | HOSE | (106810)- | |
| 714-07-14750 | HOSE | 53001-(106809) | ||
| 16 | 205-62-53780 | COVER | 53001- | |
| 17 | 08034-20519 | BAND | 53001- |
