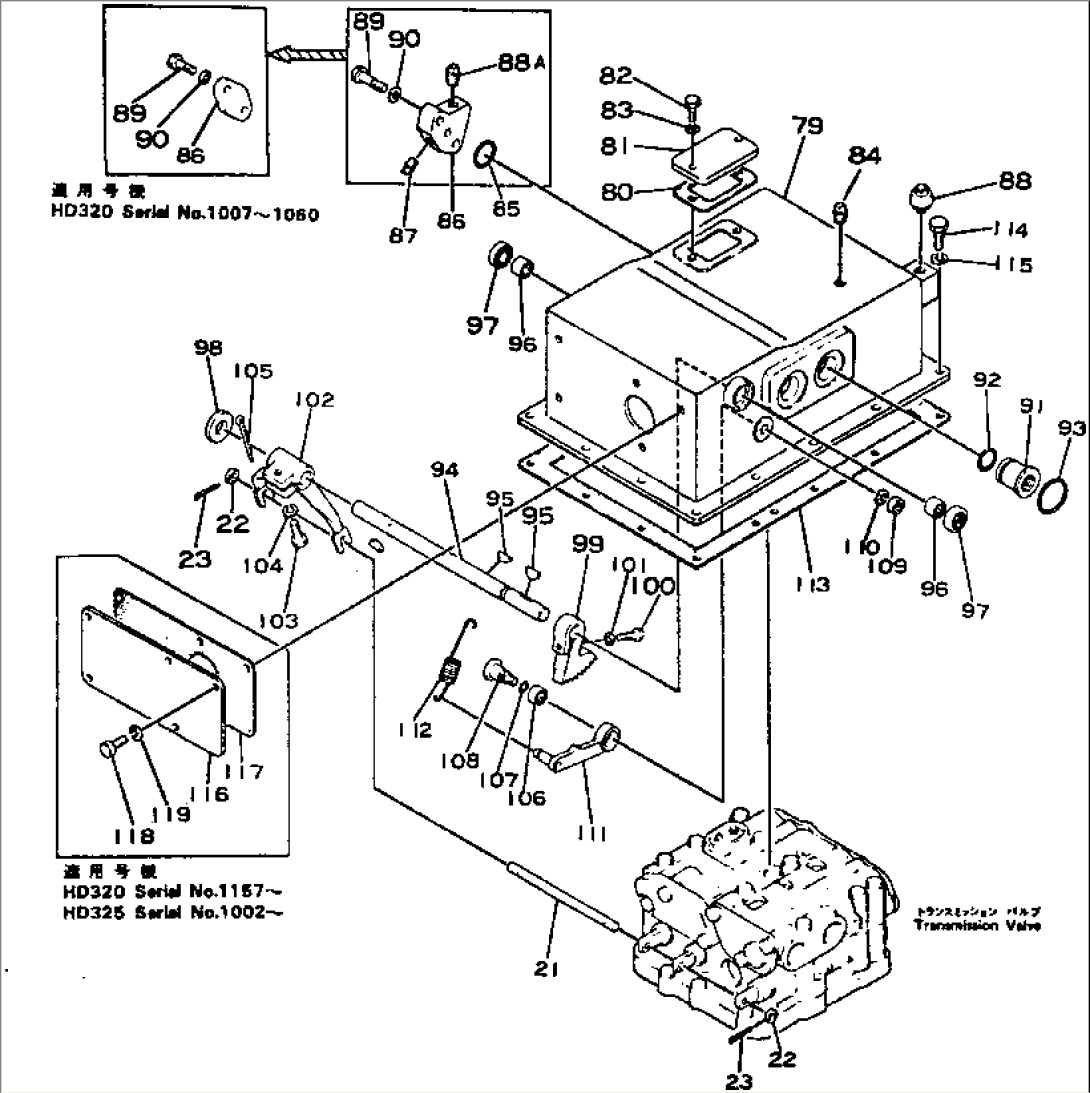

TRANSMISSION VALVE (2/2)

TRANSMISSION VALVE (2/2)
ItemPart No.Part NameQtySerial No.
566-15-00014TRANSMISSION ASS'Y1002-
\0\566-15-00013TRANSMISSION ASS'Y1000-1000
(566-15-00012)TRANSMISSION ASS'Y1000-1000
\0\566-15-00011TRANSMISSION ASS'Y1000-1000
(566-15-00010)TRANSMISSION ASS'Y1000-1000
566-15-00042VALVE ASS'Y1002-
\0\566-15-00041VALVE ASS'Y1000-1000
566-15-00040VALVE ASS'Y1000-1000
566-15-00051VALVE ASS'Y1002-
\0\566-15-00050VALVE ASS'Y1000-1000
107000-63028O-RING (KIT)1002-
107000-03028O-RING (KIT)1000-1000
207000-63022O-RING (KIT)1002-
207000-03022O-RING (KIT)1000-1000
307000-61007O-RING (KIT)1002-
307000-01007O-RING (KIT)1000-1000
4566-15-25131SEAT1002-
501010-51045BOLT1002-
601602-21030WASHER1002-
704020-00820PIN1002-
807000-63022O-RING (KIT)1002-
807000-03022O-RING (KIT)1000-1000
907000-62015O-RING (KIT)1002-
907000-02015O-RING (KIT)1000-1000
1007000-61007O-RING (KIT)1002-
1007000-01007O-RING (KIT)1000-1000
11566-15-25111BODY1002-
12281-15-15141SPOOL1002-
13566-15-25150SPOOL1002-
14281-15-15181STOPPER1002-
1504065-03212RING1002-
16566-15-25790VALVE1002-
16281-15-15790VALVE1000-1000
17281-15-15191COVER1002-
1801010-51025BOLT1002-
1901602-21030WASHER1002-
20281-15-15161SPOOL1002-
21281-15-15582ROD1002-
21281-15-15581ROD1000-1000
2201641-21016WASHER1002-
22281-15-15591WASHER1000-1000
2304050-03015PIN1002-
2304050-03030PIN1000-1000
2407000-63022O-RING (KIT)1002-
2407000-03022O-RING (KIT)1000-1000
2507000-62015O-RING (KIT)1002-
2507000-02015O-RING (KIT)1000-1000
2607000-61007O-RING (KIT)1002-
2607000-01007O-RING (KIT)1000-1000
2704020-00820PIN1002-
28566-15-25121BODY1002-
2907042-00108PLUG1002-
30566-15-25320STOPPER1002-
31145-14-23720PISTON1002-
32281-15-15311VALVE,REDUCING1002-
33281-51-15352SPRING1002-
34566-15-15910RETAINER1002-
35566-15-25610SLEEVE1002-
36566-15-25630PISTON1002-
37566-15-25640PISTON1002-
38566-15-25620VALVE1002-
39566-15-25650BOLT1002-
40566-15-25660SPRING1002-
41566-15-15910RETAINER1002-
42566-15-25390GASKET (KIT)1002-
43566-15-25370COVER1002-
4407043-00108PLUG1002-
4501010-51025BOLT1002-
4601602-21030WASHER1002-
4701010-51035BOLT1002-
4801602-21030WASHER1002-
49566-15-25250STOPPER1002-
50566-15-25440SLEEVE1002-
51145-14-23180STOPPER1002-
52130-09-15170RING,SNAP1002-
53566-15-25260VALVE,MODULATION1002-
54195-15-15130VALVE1002-
54175-15-15540VALVE1000-1000
55180-14-25560SPRING1002-
56175-15-15550VALVE1002-
57281-15-15480SHIM, 0.5MM1002-
58566-15-15980SPRING1002-
59145-14-33450WASHER1002-
60145-14-33351SPRING1002-
6107000-63040O-RING (KIT)1002-
6107000-03040O-RING (KIT)1000-1000
62281-15-25220SPOOL1002-
62566-15-25220SPOOL1000-1000
63566-15-25230STOPPER1002-
64566-15-25330SPRING1002-
65566-15-15910RETAINER1002-
6607000-63032O-RING (KIT)1002-
6607000-03032O-RING (KIT)1000-1000
6707000-63032O-RING (KIT)1002-
6707000-03032O-RING (KIT)1000-1000
68566-15-25290RETAINER1002-
69566-15-25380COVER1002-
7001010-51025BOLT1002-
7101602-21030WASHER1002-
72566-15-25361COVER1002-
7301010-51025BOLT1002-
7401602-21030WASHER1002-
75281-15-15760BOLT1002-
7601602-21030WASHER1002-
77281-15-15391BOLT1002-
7801602-21030WASHER1002-
566-15-00062COVER ASS'Y1002-
\0\566-15-00061COVER ASS'Y1000-1000
\0\566-15-00060COVER ASS'Y1000-1000
79281-15-15494COVER1002-
79281-15-15493COVER1000-1000
80281-15-15561GASKET1002-
81281-15-15553PLATE1002-
8201010-50820BOLT1002-
8301602-20825WASHER1002-
8407042-20211PLUG1000-1000
8507000-03028O-RING (KIT)1000-1000
86566-15-25332COVER1000-1000
86\3\566-15-25331COVER1000-1000
(566-15-25532,01010-51025)
8707042-20211PLUG1000-1000
8807030-00252BREATHER1002-
88A07042-20211PLUG1000-1000
8901010-51025BOLT1000-1000
8901010-51040BOLT1000-1000
9001602-21030WASHER1000-1000
91566-15-15761SLEEVE1002-
91566-15-15760SLEEVE1000-1000
9207000-63025O-RING (KIT)1002-
9207000-03025O-RING (KIT)1000-1000
9307000-63045O-RING (KIT)1002-
9307000-23045O-RING (KIT)1000-1000
9307000-03045O-RING (KIT)1000-1000
94566-15-25711SHAFT1002-
94\0\281-15-15713SHAFT1000-1000
9504010-00516KEY1002-
9606120-01816BEARING1002-
97566-15-15850SEAL (KIT)1002-
9801643-01845WASHER1002-
99281-15-15621LEVER1002-
10001010-30835BOLT1002-
10101602-00825WASHER1002-
102281-15-15571LEVER1002-
10301010-31030BOLT1002-
10401602-01030WASHER1002-
10504050-04028PIN1002-
10606120-01612BEARING1002-
10707000-61009O-RING (KIT)1002-
10707000-01009O-RING (KIT)1000-1000
108281-15-15640SHAFT1002-
10901580-11008NUT1002-
11001602-21030WASHER1002-
111281-15-15631LEVER1002-
112281-15-15650SPRING1002-
113281-15-15522GASKET (KIT)1002-
11401010-51030BOLT1002-
11501602-21030WASHER1002-
116281-15-15730COVER1002-
117281-15-15740GASKET1002-
11801010-51020BOLT1002-
11901602-21030WASHER1002-
