| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (17M-15-00072) | TRANSMISSION AS | (1238)- | ||
| (\0\17M-15-00071) | TRANSMISSION ASS'Y | 10085-(1237) | ||
| (\0\17M-15-00070) | TRANSMISSION ASS'Y | 10001-10084 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2320-51A1 TO F2320-59A1. | ||||

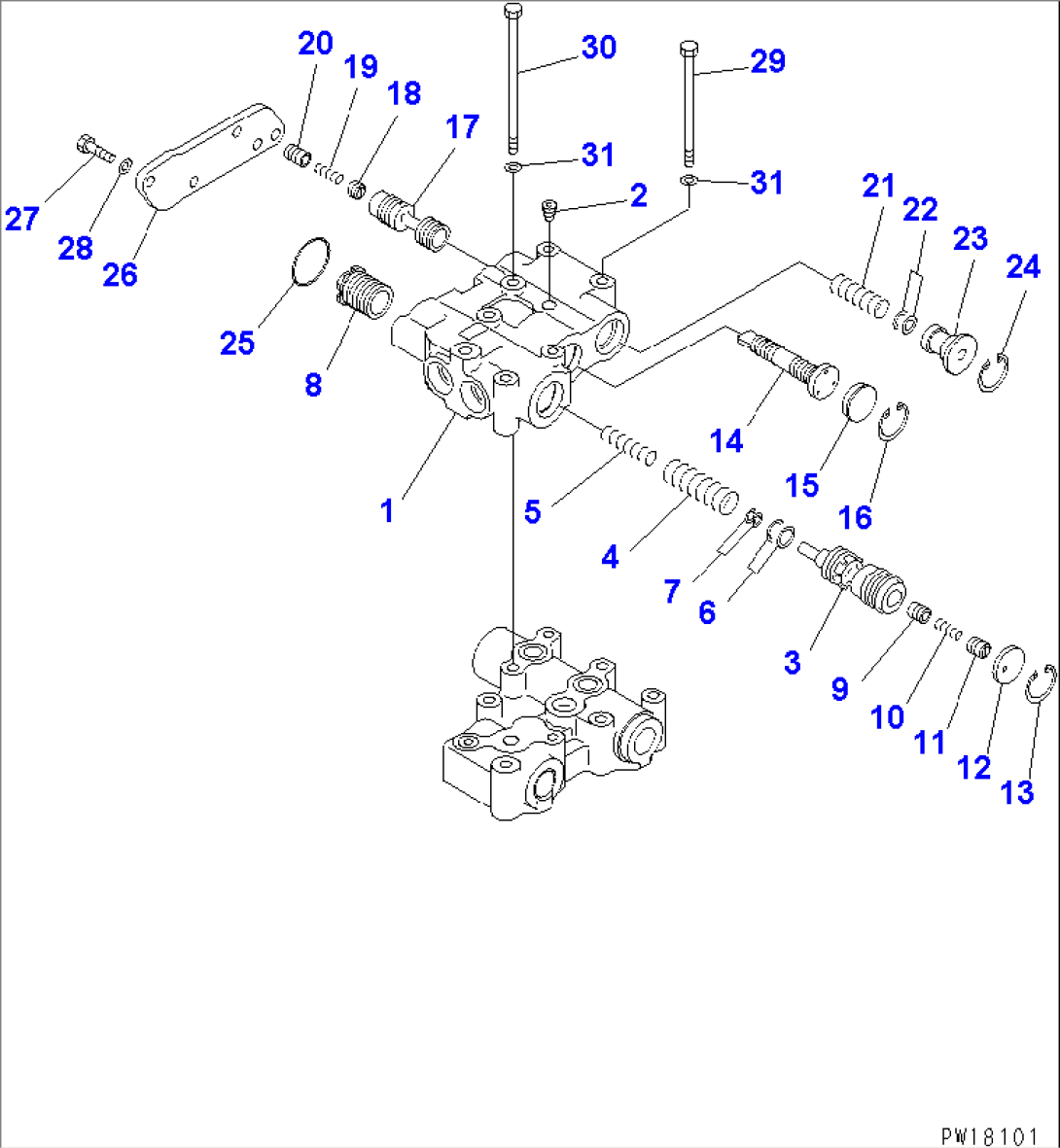

| (17M-15-00260) | CONTROL VALVE ASS'Y | 10001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2320-56A1 AND F2320-57A1. | ||||
| 1 | 17M-15-25110 | BODY | 10001- | |
| 2 | 07043-00312 | PLUG | 10001- | |
| 3 | 17M-15-25221 | SPOOL | 10001- | |
| 4 | 17M-15-25310 | SPRING | 10001- | |
| 5 | 145-15-45320 | SPRING | 10001- | |
| 6 | 281-15-15480 | SHIM, 0.5MM | 10001- | |
| 7 | 175-15-56470 | SHIM, 0.50MM | 10001- | |
| 8 | 17M-15-25270 | VALVE | 10001- | |
| 9 | 195-15-15130 | VALVE | 10001- | |
| 10 | 180-14-25560 | SPRING | 10001- | |
| 11 | 175-15-15550 | VALVE | 10001- | |
| 12 | 17M-15-25240 | STOPPER | 10001- | |
| 13 | 04065-03815 | RING,SNAP | 10001- | |
| 14 | 17M-15-25260 | SPOOL | 10001- | |
| 15 | 145-15-45420 | STOPPER | 10001- | |
| 16 | 04065-03815 | RING,SNAP | 10001- | |
| 17 | 175-15-45381 | VALVE | 10001- | |
| 18 | 198-15-15760 | VALVE | 10001- | |
| 19 | 180-14-25560 | SPRING | 10001- | |
| 20 | 568-15-15570 | VALVE | 10001- | |
| 21 | 154-15-45510 | SPRING | 10001- | |
| 22 | 103-15-15480 | SHIM, 0.5MM | 10001- | |
| 23 | 17M-15-25390 | RETAINER | 10001- | |
| 24 | 04065-03815 | RING,SNAP | 10001- | |
| 25 | 07000-73045 | O-RING (K3) | 10001- | |
| 26 | 145-15-45810 | COVER | 10001- | |
| 27 | 01010-81025 | BOLT | 10001- | |
| 28 | 01643-31032 | WASHER,SPRING | 10001- | |
| 29 | 01011-81035 | BOLT | 10001- | |
| 30 | 01011-81065 | BOLT | 10001- | |
| 31 | 01643-31032 | WASHER | 10001- |
