| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (17A-15-31001) | TRANSMISSION ASS'Y | 76001- | ||
| (\2\17A-15-31000) | TRANSMISSION ASS'Y | (76001-76385) | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2320-51A0 TO F2320-61A0A. | ||||
| (17M-15-45505) | T/M VALVE ASS'Y | 76525- | ||
| ((\2\17M-15-45504)) | T/M VALVE ASS'Y | (76525-76591) | ||
| (\0\17M-15-45503) | T/M VALVE ASS'Y | (101838)-00076524 | ||
| (\0\17M-15-45502) | T/M VALVE ASS'Y | (101632)-(101837) | ||
| (\0\17M-15-45501) | T/M VALVE ASS'Y | 76001-(101631) | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2320-57A0A TO F2320-59A0A . | ||||

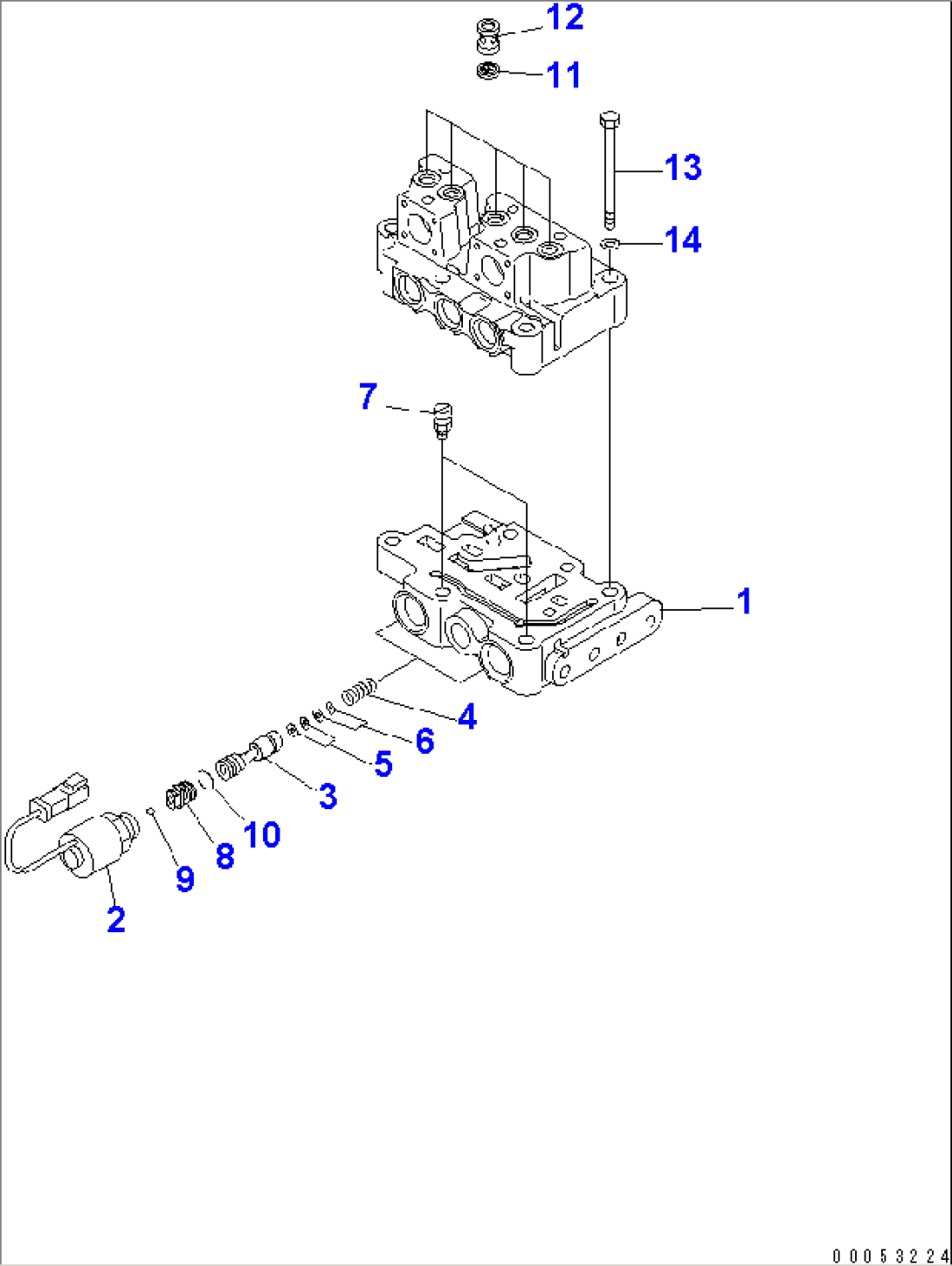

| 17M-15-00323 | VALVE ASS'Y | 76592- | ||
| 17M-15-00321 | VALVE ASS'Y | (101632)-00076591 | ||
| 17M-15-00320 | UNDER VALVE ASS'Y | 76001-(101631) | ||
| 1 | \6\ | BODY | (101632)- | |
| 1 | \6\ | BODY | 76001-(101631) | |
| 2 | \6\ | SOLENOID | 76001- | |
| 3 | \6\ | SPOOL | 76592- | |
| 3 | \6\ | SPOOL | 76001-76591 | |
| 4 | \6\ | SPRING | 76001- | |
| 5 | \6\ | SHIM, 0.5MM | 76001- | |
| 6 | \6\ | SHIM, 0.2MM | 76001- | |
| 7 | \6\ | PLUG | 76001- | |
| 8 | \6\ | VALVE | 76001- | |
| 9 | \6\ | BALL | 76001- | |
| 10 | \6\ | O-RING | 76001- | |
| 11 | 195-15-76330 | FILTER | 76525- | |
| 12 | 195-15-76320 | SLEEVE | 76525- | |
| 13 | 195-15-76410 | BOLT | (101632)- | |
| 13 | 01010-81095 | BOLT | 76001-(101631) | |
| 14 | 01643-51032 | WASHER | (101632)- | |
| 14 | 01643-31032 | WASHER | 76001-(101631) |
