| Item | Part No. | Part Name | Qty | Serial No. |
| (103-15-00602) | TRANSMISSION ASS'Y | 75001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2501 TO 2508. | ||||
| (103-15-00612) | TRANSMISSION ASS'Y | 75001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2501 TO 2504 AND 2506 TO 2508. | ||||

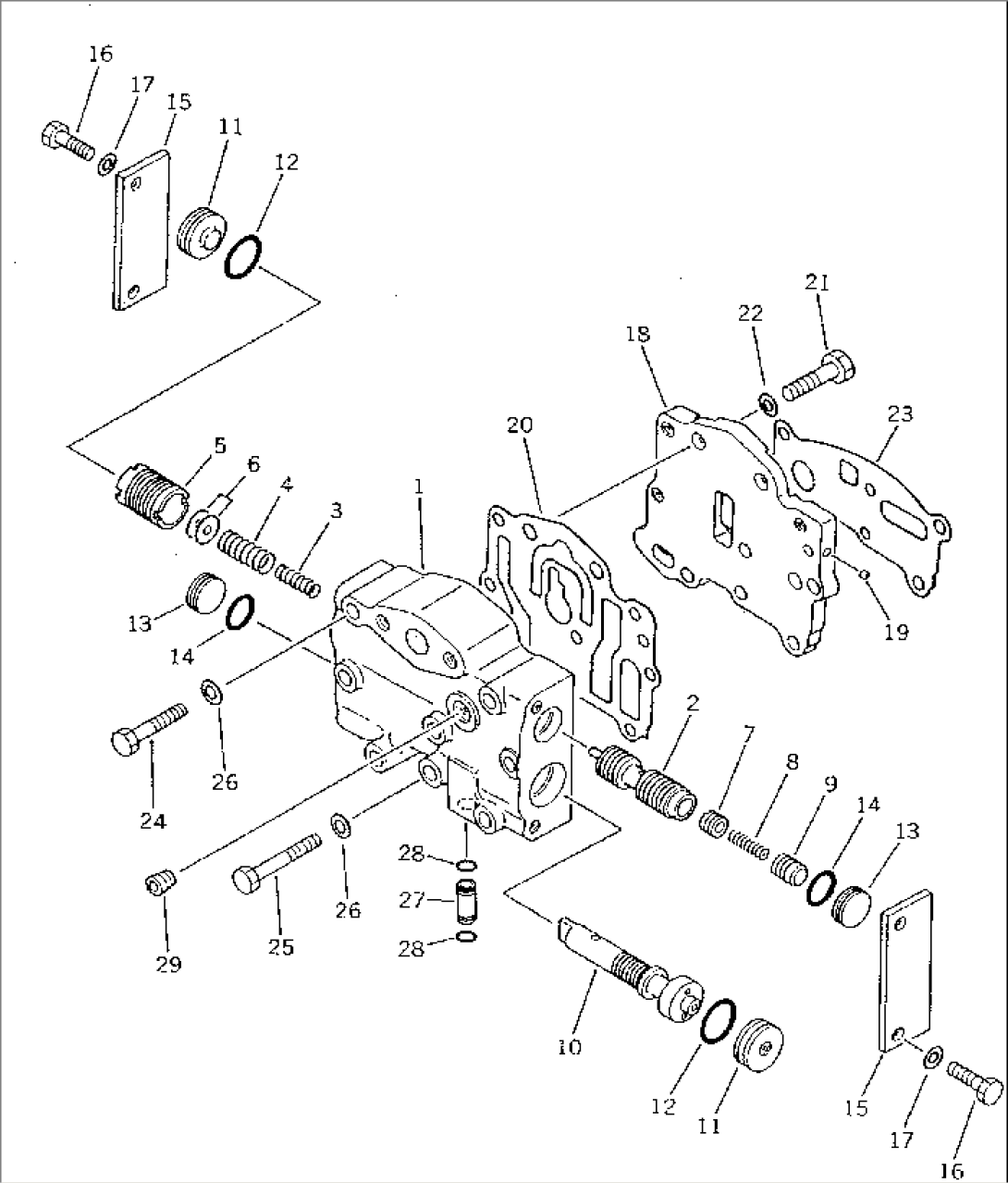

| 103-15-00710 | VALVE ASS'Y,MODULATION | 75001- | ||
| 1 | 104-15-25110 | BODY | 75001- | |
| 2 | 104-15-25210 | SPOOL,MODULATING | 75001- | |
| 3 | 103-15-35251 | SPRING | 75001- | |
| 4 | 103-15-35260 | SPRING | 75001- | |
| 5 | 103-15-35220 | VALVE | 75001- | |
| 6 | 113-15-25270 | SHIM¤ 0.2MM (K2) | 75001- | |
| 113-15-25260 | SHIM¤ 0.5MM (K2) | 75001- | ||
| 7 | 104-15-25490 | VALVE | 75001- | |
| 8 | 125-15-15290 | SPRING | 75001- | |
| 9 | 104-15-25480 | VALVE | 75001- | |
| 10 | 361-15-15320 | SPOOL,QUICK RETURN | 75001- | |
| 11 | 104-15-25330 | STOPPER | 75001- | |
| 12 | 07000-73025 | O-RING (K2) | 75001- | |
| 13 | 104-15-25340 | STOPPER | 75001- | |
| 14 | 07000-72020 | O-RING (K2) | 75001- | |
| 15 | 103-15-25350 | PLATE | 75001- | |
| 16 | 01010-50820 | BOLT | 75001- | |
| 17 | 01643-30823 | WASHER | 75001- | |
| 103-15-00740 | SEAT ASS'Y | 75001- | ||
| 18 | \6\ | SEAT | 75001- | |
| 19 | 04260-00635 | BALL | 75001- | |
| 20 | 103-15-35140 | GASKET (K2) | 75001- | |
| 21 | 01010-51025 | BOLT | 75001- | |
| 22 | 01643-31032 | WASHER | 75001- | |
| 23 | 103-15-35910 | GASKET (K2) | 75001- | |
| 24 | 01010-50860 | BOLT | 75001- | |
| 25 | 01010-50870 | BOLT | 75001- | |
| 26 | 01643-30823 | WASHER | 75001- | |
| 27 | 103-15-31770 | SLEEVE | 75001- | |
| 28 | 07000-72014 | O-RING (K2) | 75001- | |
| 29 | 07043-00211 | PLUG | 75001- |
