| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (154-15-61002) | TRANSMISSION ASS'Y | 10307- | ||
| (154-15-61001) | TRANSMISSION ASS'Y | 10060-10306 | ||
| (154-15-61000) | TRANSMISSION ASS'Y | 10001-10059 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2320-51A0 TO F2320-62A0. | ||||
| (14X-15-25505) | VALVE ASS'Y | 10680- | ||
| (14X-15-25504) | T/M VALVE ASS'Y | 10495-10679 | ||
| (\0\14X-15-25503) | T/M VALVE ASS'Y | (100369)-00010494 | ||
| (\0\14X-15-25502) | T/M VALVE ASS'Y | 10060-(100368) | ||
| (\0\14X-15-25501) | T/M VALVE ASS'Y | 10001-10059 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2320-58A0 TO F2320-60A0. | ||||

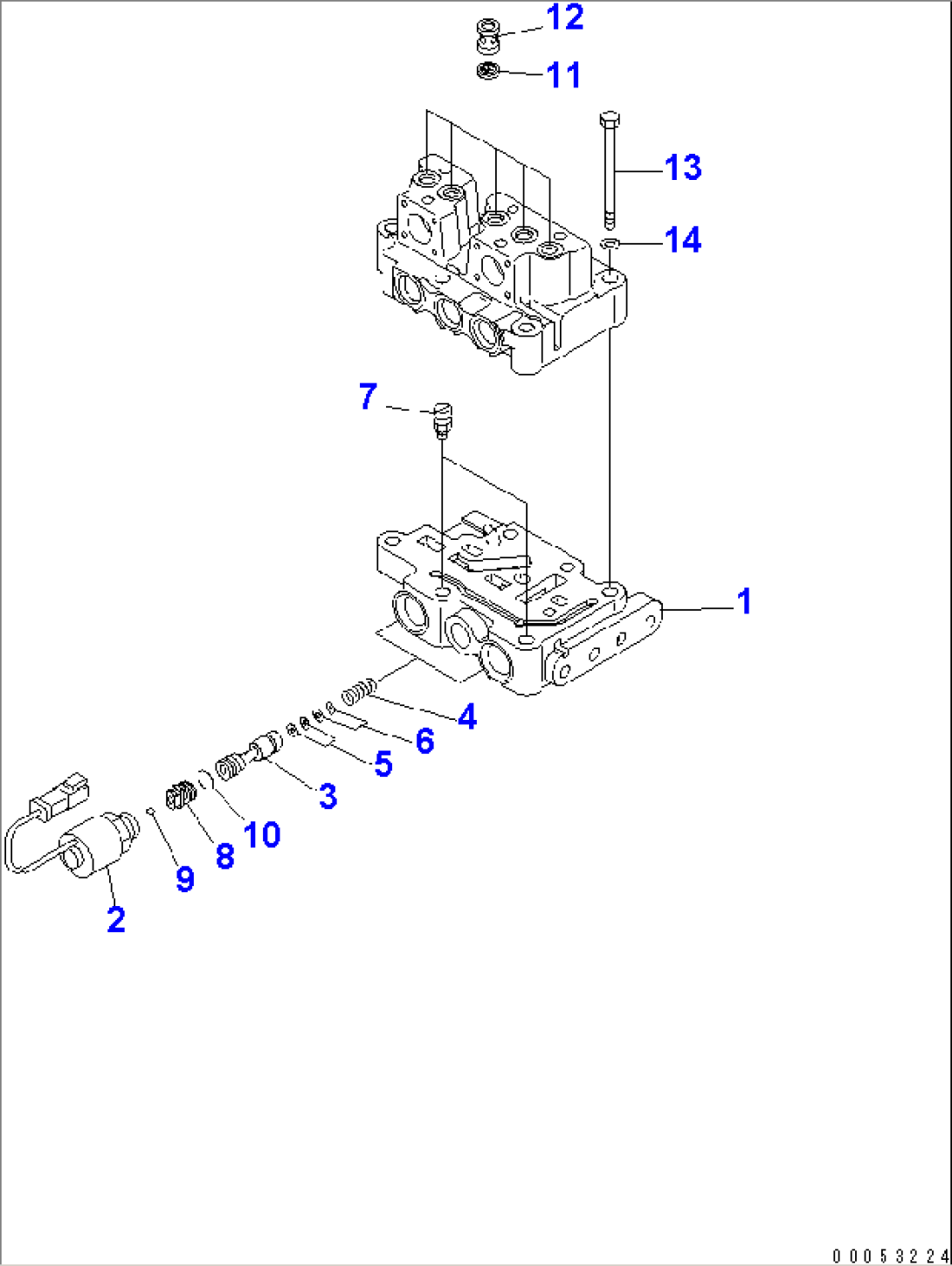

| 14X-15-00322 | VALVE ASS'Y | 10680- | ||
| 14X-15-00321 | UNDER VALVE ASS'Y | 10060-10679 | ||
| 14X-15-00320 | UNDER VALVE ASS'Y | 10001-10059 | ||
| 1 | \6\ | BODY | 10060- | |
| 1 | \6\ | BODY | 10001-10059 | |
| 2 | \6\ | SOLENOID | 10001- | |
| 3 | \6\ | SPOOL | 10680- | |
| 3 | \6\ | SPOOL | 10001-10679 | |
| 4 | \6\ | SPRING | 10001- | |
| 5 | \6\ | SHIM, 0.5MM | 10001- | |
| 6 | \6\ | SHIM, 0.2MM | 10001- | |
| 7 | \6\ | PLUG | 10001- | |
| 8 | \6\ | VALVE | 10001- | |
| 9 | \6\ | BALL | 10001- | |
| 10 | \6\ | O-RING | 10001- | |
| 11 | 195-15-76330 | FILTER | 10495- | |
| 12 | 195-15-76320 | SLEEVE | 10495- | |
| 13 | 195-15-76410 | BOLT | 10060- | |
| 13 | 01010-81095 | BOLT | 10001-10059 | |
| 14 | 01643-51032 | WASHER | 10060- | |
| 14 | 01643-31032 | WASHER | 10001-10059 |
