| Item | Part No. | Part Name | Qty | Serial No. |
| (114-15-00033) | TRANSMISSION ASS'Y | 42967- | ||
| \0\113-15-00602 | TRANSMISSION ASS'Y | 41402-42966 | ||
| \0\113-15-00601 | TRANSMISSION ASS'Y | 40327-41401 | ||
| \0\113-15-00600 | TRANSMISSION ASS'Y | 40001-40326 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2501 TO 2561. | ||||
| 114-15-00330 | VALVE ASS'Y | 41402- | ||

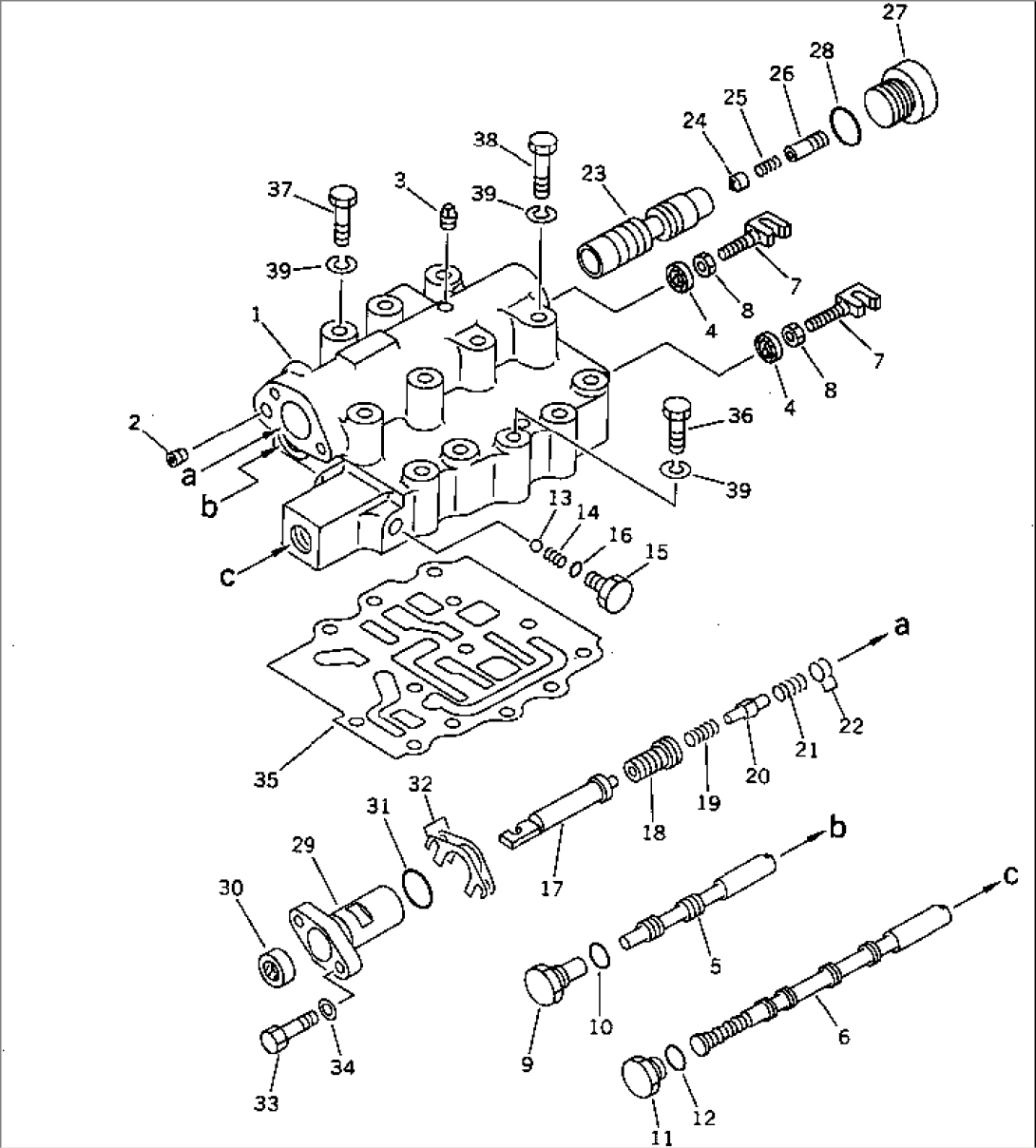

| 104-15-00320 | VALVE ASS'Y,SELECTOR AND INCHING | 40001-41401 | ||
| 1 | 104-15-35410 | BODY | 40001- | |
| 2 | 07043-00108 | PLUG | 40001- | |
| 3 | 07042-20108 | PLUG | 40001- | |
| 4 | 113-15-29110 | SEAL,OIL (K1) | 40001- | |
| 5 | 362-15-15430 | SPOOL | 40001- | |
| 6 | 362-15-15450 | SPOOL | 40001- | |
| 7 | 09363-00850 | YOKE | 40001- | |
| 8 | 01580-10806 | NUT | 40001- | |
| 9 | 104-15-25460 | PLUG | 40001- | |
| 10 | 07002-01623 | O-RING (K1) | 40001- | |
| 11 | 113-15-25481 | PLUG | 40001- | |
| 12 | 07002-01823 | O-RING (K1) | 40001- | |
| 103-15-15340 | DETENT ASS'Y | 40001- | ||
| 13 | 04260-00635 | BALL | 40001- | |
| 14 | 103-15-15350 | SPRING | 40001- | |
| 15 | 103-15-15330 | RETAINER | 40001- | |
| 16 | 07002-01223 | O-RING (K1) | 40001- | |
| 17 | 363-15-15510 | SPOOL | 40001- | |
| 18 | 104-15-35170 | STOPPER | 40001- | |
| 19 | 103-15-36160 | SPRING | 40001- | |
| 20 | 363-15-15530 | STOPPER | 40001- | |
| 21 | 103-15-36150 | SPRING | 41402- | |
| 21 | \3\104-15-35150 | SPRING | 40001-41401 | |
| (113-15-42711(13),103-15-36150) | ||||
| 22 | 104-15-36490 | SHIM, 0.2MM | 40001- | |
| 22 | 104-15-36480 | SHIM, 0.5MM | 40001- | |
| 23 | 363-15-15520 | VALVE | 40001- | |
| 24 | 22W-75-18890 | VALVE | 40001- | |
| 25 | 125-15-15290 | SPRING | 40001- | |
| 26 | 22W-75-18880 | VALVE | 40001- | |
| 27 | 124-15-45450 | PLUG | 40001- | |
| 28 | 07002-03034 | O-RING (K1) | 40001- | |
| 29 | 104-15-35210 | COVER | 40001- | |
| 30 | 113-15-29110 | SEAL,OIL (K1) | 40001- | |
| 31 | 07000-72021 | O-RING (K1) | 40001- | |
| 32 | 104-15-36470 | SHIM, 0.2MM | 40001- | |
| 32 | 104-15-36460 | SHIM, 0.5MM | 40001- | |
| 33 | 01010-50825 | BOLT | 40001- | |
| 34 | 01643-30823 | WASHER | 40001- | |
| 35 | 362-15-15920 | GASKET (K1) | 41615- | |
| 35 | \0\104-15-25910 | GASKET (K1) | 40001-41614 | |
| 36 | 01010-50850 | BOLT | 40001- | |
| 37 | 01010-50865 | BOLT | 40001- | |
| 38 | 01010-50875 | BOLT | 40001- | |
| 39 | 01602-20825 | WASHER,SPRING | 40001- |
