| Item | Part No. | Part Name | Qty | Serial No. |
| (114-15-00036) | TRANSMISSION ASS'Y | | 47617- |
| (114-15-00035) | TRANSMISSION ASS'Y | | 45421-47616 |
| (\0\114-15-00034) | TRANSMISSION ASS'Y | | 45001-45420 |
| | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2320-51A0 TO F2320-59A0. | | |
| (114-15-51010) | TRANSMISSION ASS'Y | | 47617- |
| (114-15-00511) | TRANSMISSION ASS'Y | | 45421-47616 |
| (\0\114-15-00510) | TRANSMISSION ASS'Y | | 45001-45420 |
| | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2320-51A0 TO F2320-55A0 AND F2320-57A0 TO F2320-59A0. | | |

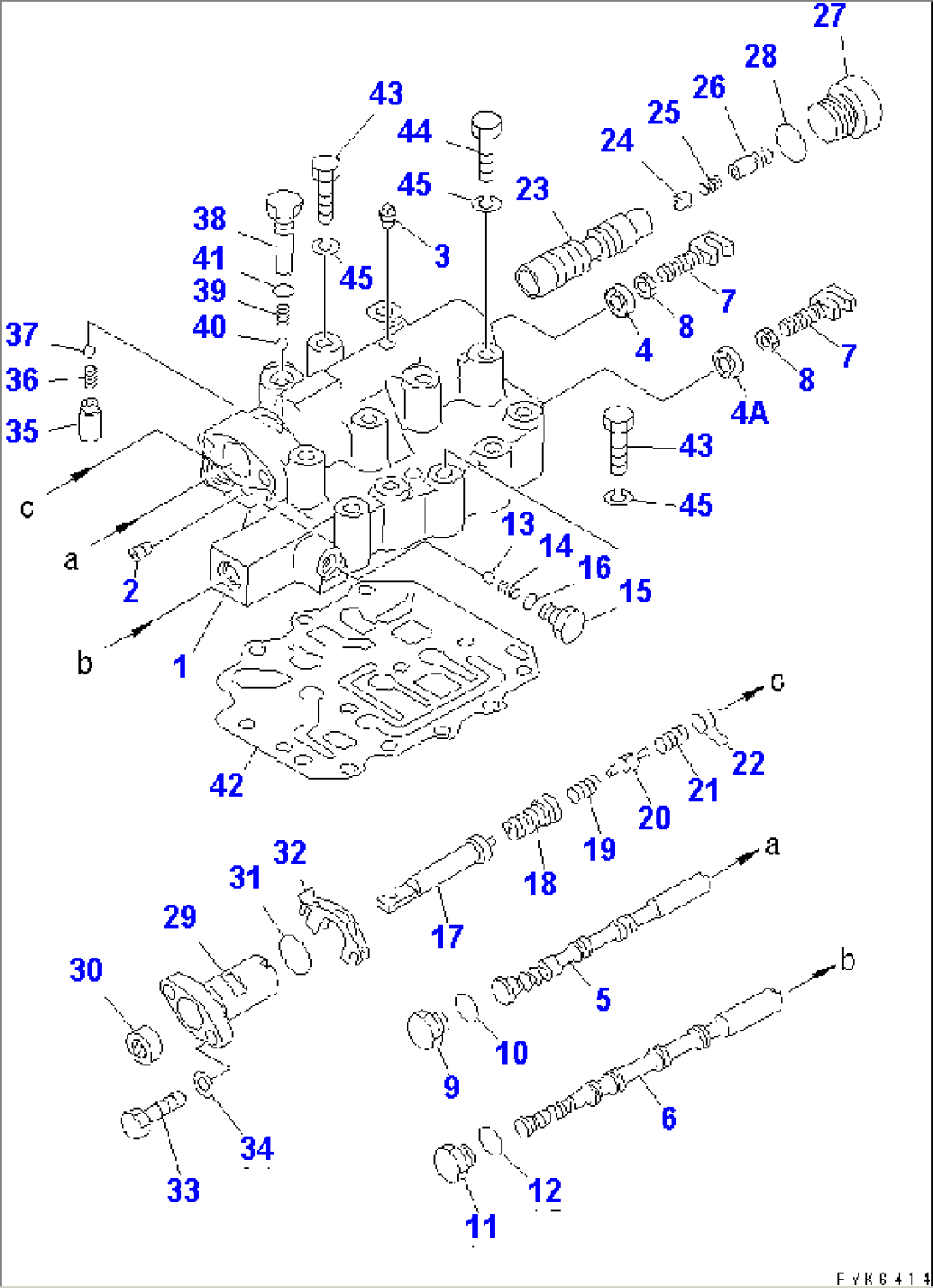

| 113-15-55010 | VALVE ASS'Y,SELECTOR AND INCHING | | 47617- |
| 114-15-00530 | VALVE ASS'Y,SELECTOR AND INCHING | | 45001-47616 |
| 1 | 363-15-15410 | BODY | | 45001- |
| 2 | 07043-70108 | PLUG | | 48679- |
| 2 | 07043-00108 | PLUG | | 45001-48678 |
| 3 | 07042-80108 | PLUG | | 48679- |
| 3 | 07042-20108 | PLUG | | 45001-48678 |
| 4 | 113-15-29110 | SEAL,OIL (K3) | | 47617- |
| 4A | 124-15-49110 | SEAL (K3) | | 47617- |
| 4A | 113-15-29110 | SEAL,OIL (K3) | | 45001-47616 |
| 5 | 363-15-15470 | SPOOL | | 45001- |
| 6 | 113-15-55450 | SPOOL | | 47617- |
| 6 | 363-15-15450 | SPOOL | | 45001-47616 |
| 7 | 09363-00850 | YOKE | | 45001- |
| 8 | 01580-10806 | NUT | | 45001- |
| 9 | 113-15-25481 | PLUG | | 45001- |
| 10 | 07002-01823 | O-RING (K3) | | 45001- |
| 11 | 113-15-25481 | PLUG | | 45001- |
| 12 | 07002-01823 | O-RING (K3) | | 45001- |
| 124-15-55380 | DETENT ASS'Y | | 47617- |
| 103-15-15340 | DETENT ASS'Y | | 45001-47616 |
| 13 | 04260-00635 | BALL | | 45001- |
| 14 | 124-15-55370 | SPRING | | 47617- |
| 14 | 103-15-15350 | SPRING | | 45001-47616 |
| 15 | 103-15-15330 | RETAINER | | 45001- |
| 16 | 07002-01223 | O-RING (K3) | | 45001- |
| 17 | 363-15-15510 | SPOOL | | 45001- |
| 18 | 104-15-35170 | STOPPER | | 45001- |
| 19 | 103-15-36160 | SPRING | | 45001- |
| 20 | 363-15-15530 | STOPPER | | 45001- |
| 21 | 103-15-36150 | SPRING | | 45001- |
| 22 | 104-15-36490 | SHIM, 0.2MM | | 45001- |
| 22 | 104-15-36480 | SHIM, 0.5MM | | 45001- |
| 23 | 363-15-15520 | VALVE | | 45001- |
| 24 | 22W-75-18890 | VALVE | | 45001- |
| 25 | 125-15-15290 | SPRING | | 45001- |
| 26 | 22W-75-18880 | VALVE | | 45001- |
| 27 | 124-15-45450 | PLUG | | 45001- |
| 28 | 07002-03034 | O-RING (K3) | | 45001- |
| 29 | 104-15-35230 | COVER | | 45001- |
| 30 | 113-15-29110 | SEAL,OIL (K3) | | 45001- |
| 31 | 07000-72021 | O-RING (K3) | | 45001- |
| 32 | 104-15-36470 | SHIM, 0.2MM | | 45001- |
| 32 | 104-15-36460 | SHIM, 0.5MM | | 45001- |
| 33 | 01010-80825 | BOLT | | 45001- |
| 34 | 01643-30823 | WASHER | | 45001- |
| 103-15-25370 | DETENT ASS'Y | | 45001- |
| 35 | \6\ | RETAINER | | 45001- |
| 36 | \6\ | SPRING | | 45001- |
| 37 | \6\ | BALL | | 45001- |
| 363-15-15340 | DETENT ASS'Y | | 45001- |
| 38 | \6\ | RETAINER | | 45001- |
| 39 | \6\ | SPRING | | 45001- |
| 40 | \6\ | BALL | | 45001- |
| 41 | 07002-01223 | O-RING (K3) | | 45001- |
| 42 | 103-15-45920 | GASKET (K3) | | 45001- |
| 43 | 01010-80850 | BOLT | | 45001- |
| 44 | 01010-80875 | BOLT | | 45001- |
| 45 | 01602-20825 | WASHER,SPRING | | 45001- |
