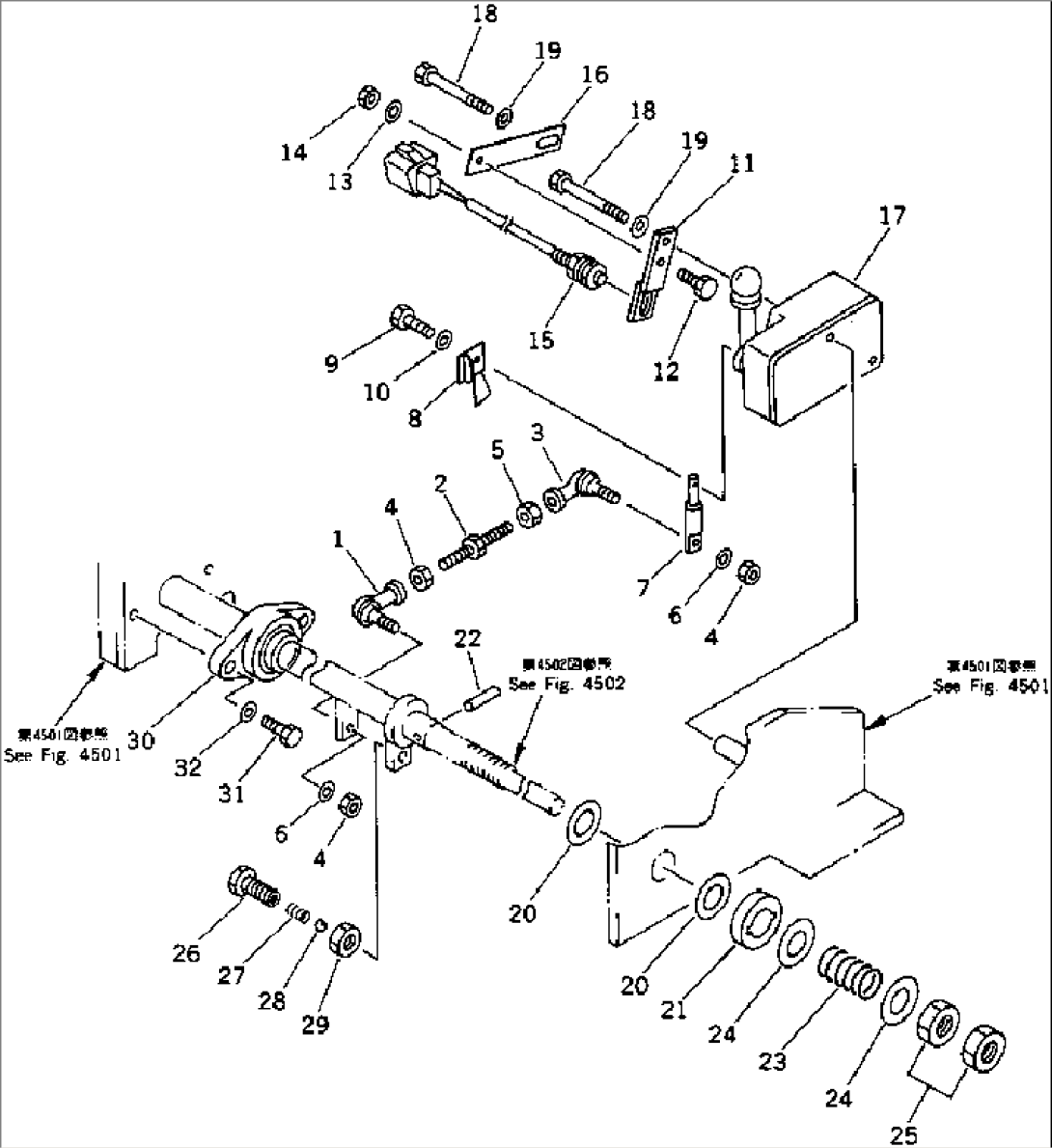

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 04256-40616 | JOINT | 10001- | |
| 2 | 262-43-57480 | ROD | 10001- | |
| 3 | 04256-50616 | JOINT,BALL | 10001- | |
| 4 | 01580-10605 | NUT | 10001- | |
| 5 | 01508-20603 | NUT | 10001- | |
| 6 | 01643-30623 | WASHER | 10001- | |
| 7 | 262-43-57490 | LEVER | 10001- | |
| 8 | 262-43-57311 | PLATE | 10001- | |
| 9 | 02100-10213 | BOLT | 10001- | |
| 10 | 02310-10610 | WASHER | 10001- | |
| 11 | 262-43-57511 | BRACKET | 10001- | |
| 12 | 01010-50614 | BOLT | 10001- | |
| 13 | 01643-30623 | WASHER | 10001- | |
| 14 | 01580-10605 | NUT | 10001- | |
| 15 | (262-06-51560) | SENSOR,BACK SWITCH (SEE FIG.1513) | 10001- | |
| 16 | 262-43-57680 | PLATE | 10001- | |
| 17 | (262-06-53240) | CONTROLLER,TRAVEL (SEE FIG.1513) | 10001- | |
| 18 | 01010-50680 | BOLT | 10001- | |
| 19 | 01643-30623 | WASHER | 10001- | |
| 20 | 263-43-17240 | FACING | 10001- | |
| 21 | 263-43-17260 | DISC | 10001- | |
| 22 | 04025-00432 | PIN | 10001- | |
| 23 | 232-25-51641 | SPRING | 10001- | |
| 24 | 01640-22440 | WASHER | 10001- | |
| 25 | 01583-12213 | NUT | 10001- | |
| 26 | 262-43-57470 | BOLT | 10001- | |
| 27 | 273-43-12290 | SPRING | 10001- | |
| 28 | 04260-00952 | BALL | 10001- | |
| 29 | 01582-11411 | NUT | 10001- | |
| 30 | 262-43-57360 | BEARING | 10001- | |
| 31 | 01010-51430 | BOLT | 10001- | |
| 32 | 01643-31445 | WASHER | 10001- |
