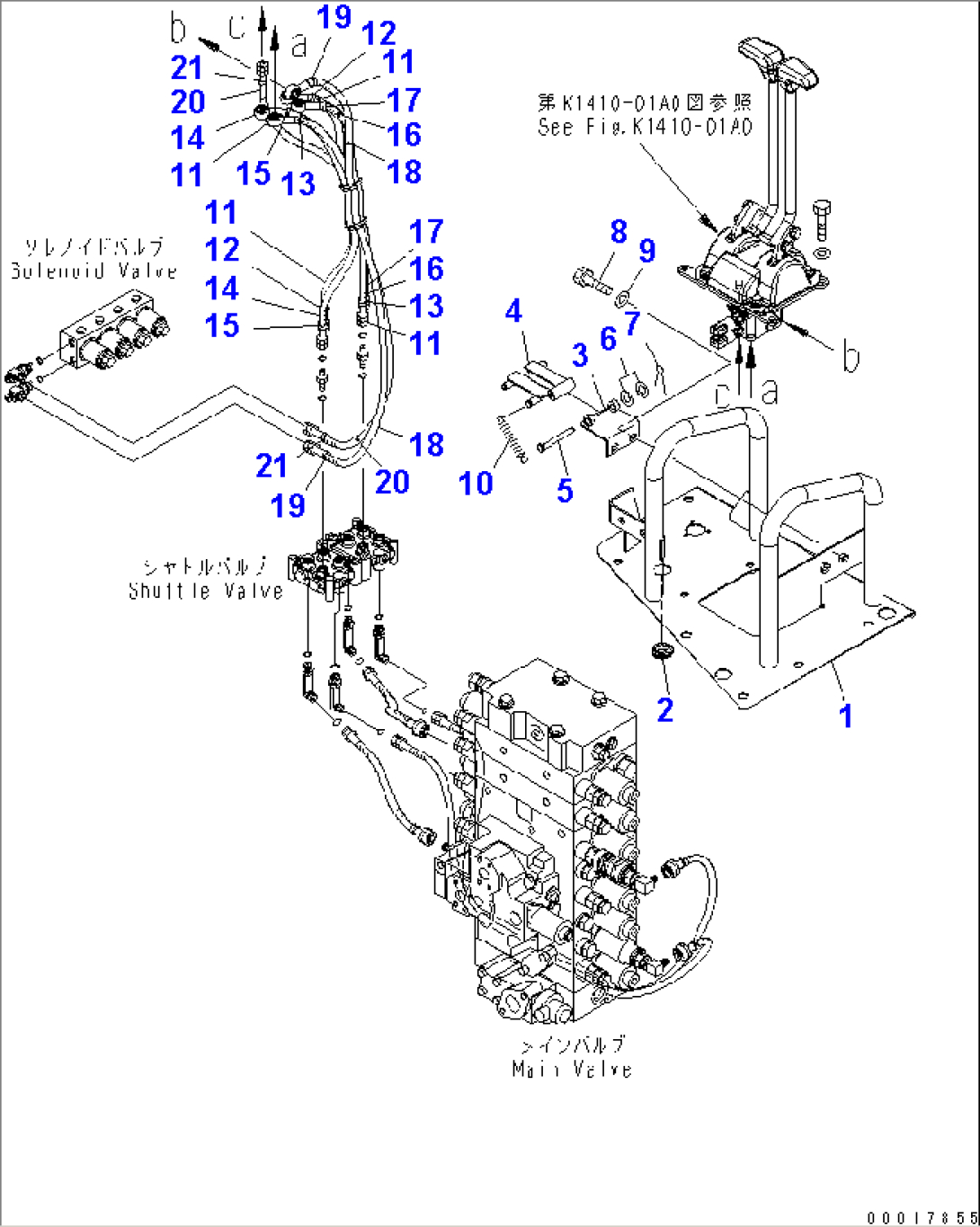

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8240-43-1132 | COVER | 1001- | |
| 2 | 08037-02512 | GROMMET | 1001- | |
| 8240-43-1140 | STOPPER ASS'Y | 1001- | ||
| 3 | 8221-43-1310 | BRACKET | 1001- | |
| 4 | 8240-43-1150 | PLATE | 1001- | |
| 5 | 140-70-14230 | PIN | 1001- | |
| 6 | 01641-21016 | WASHER | 1001- | |
| 7 | 04050-03018 | PIN | 1001- | |
| 8 | 01010-81020 | BOLT | 1001- | |
| 9 | 01643-31032 | WASHER | 1001- | |
| 10 | 8248-43-1140 | SPRING | 1001- | |
| 11 | 8240-62-1340 | HOSE | 1001- | |
| 12 | 20Y-62-22810 | BAND, YELLOW | 1001- | |
| 13 | 20Y-62-22820 | BAND, BLUE | 1001- | |
| 14 | 8240-62-1350 | HOSE | 1001- | |
| 15 | 20Y-62-22860 | BAND, BROWN | 1001- | |
| 16 | 8240-62-1360 | HOSE | 1001- | |
| 17 | 20Y-62-22850 | BAND, GREEN | 1001- | |
| 18 | 8240-62-1680 | HOSE | 1001- | |
| 19 | 20Y-62-22830 | BAND, WHITE | 1001- | |
| 20 | 02760-00210 | HOSE, 1000MM | 1001- | |
| 21 | 20Y-62-22840 | BAND, BLACK | 1001- |
