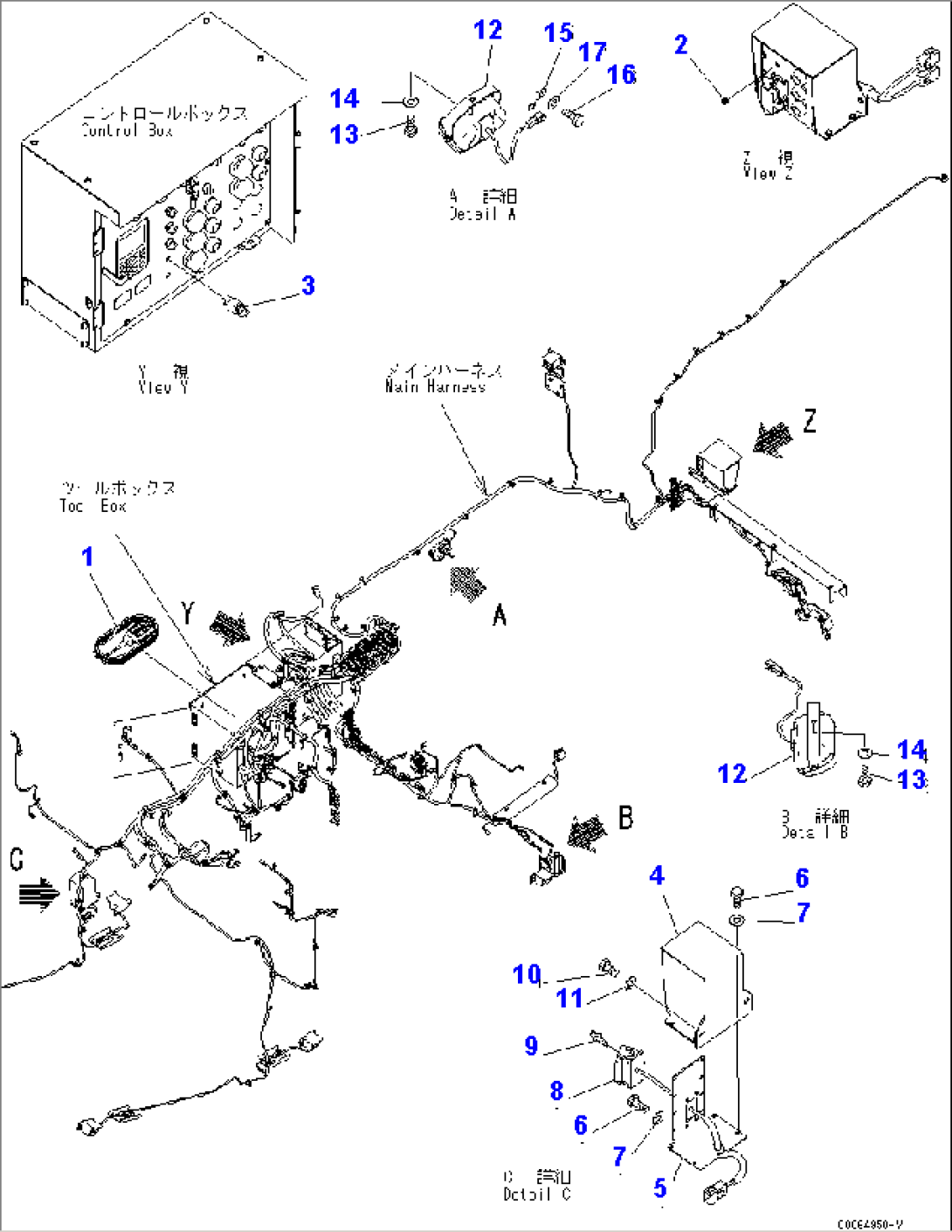

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8234-06-2960 | SWITCH BOX ASS'Y | 1001- | |
| 1 | 8234-06-2970 | BOX | 1001- | |
| 1 | 8234-06-2780 | SWITCH | 1001- | |
| 1 | 8234-06-1751 | WIRING HARNESS | 1001- | |
| 1 | 8217-07-2690 | BAND | 1001- | |
| 2 | 8234-06-1360 | CAP | 1001- | |
| 3 | 7824-84-2810 | SWITCH | 1001- | |
| 4 | 8234-06-1870 | BOX | 1001- | |
| 5 | 8234-06-1931 | BRACKET | 1001- | |
| 6 | 01010-80616 | BOLT | 1001- | |
| 7 | 01643-30623 | WASHER | 1001- | |
| 8 | 8234-06-1790 | WIRING HARNESS | 1001- | |
| 9 | 01023-10412 | SCREW | 1001- | |
| 10 | 01010-81225 | BOLT | 1001- | |
| 11 | 01643-31232 | WASHER | 1001- | |
| 12 | 20Y-06-41940 | WORKING LAMP ASS'Y | 1001- | |
| 12 | 421-06-23330 | BULB, 70W | 1001- | |
| 13 | 01010-81020 | BOLT | 1001- | |
| 14 | 01643-31032 | WASHER | 1001- | |
| 15 | 08193-21012 | CLIP | 1001- | |
| 16 | 01010-81225 | BOLT | 1001- | |
| 17 | 01643-31232 | WASHER | 1001- |
