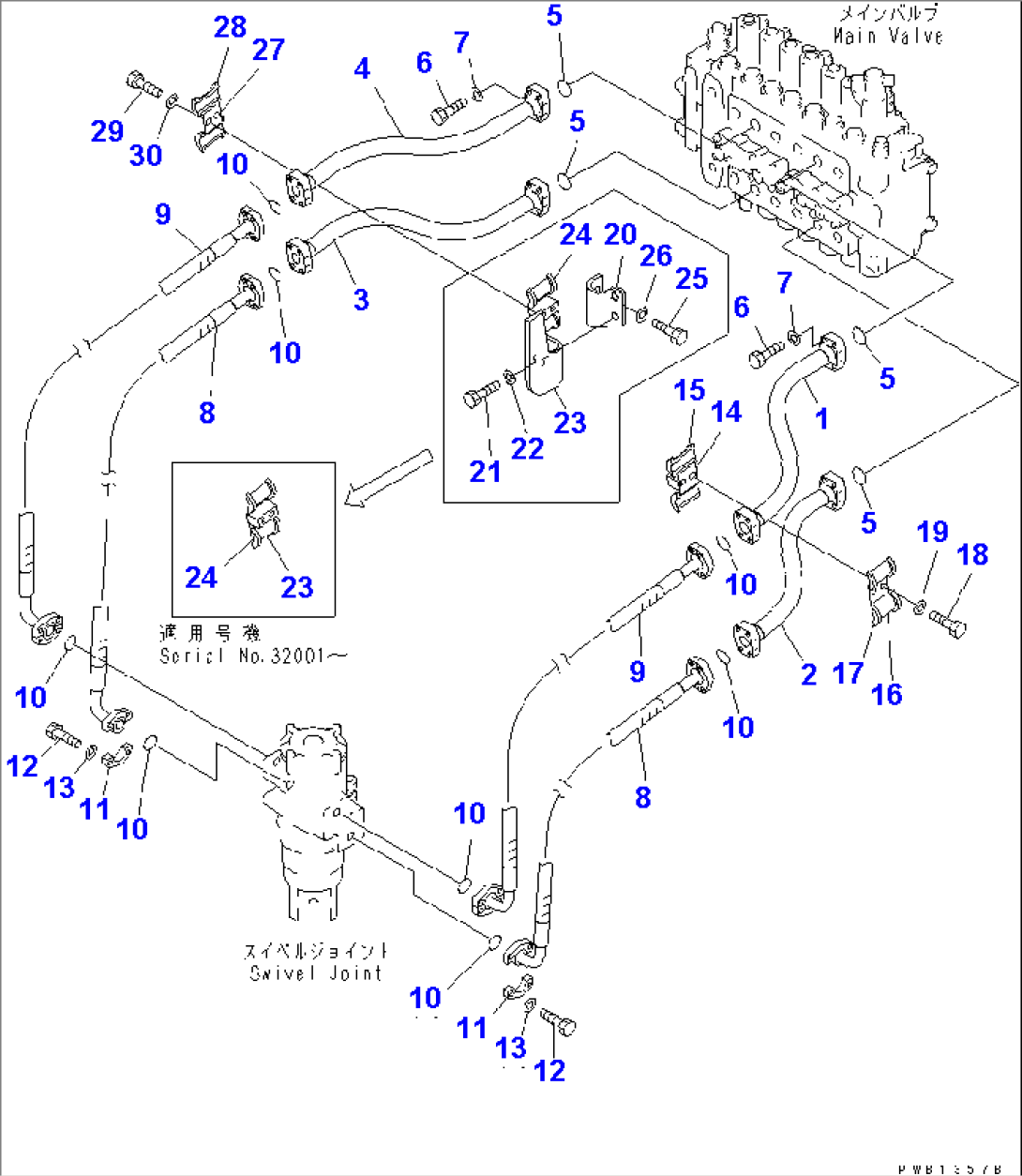

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 207-62-61341 | TUBE | 30001-32249 | |
| 2 | 207-62-61351 | TUBE | 30001-32249 | |
| 3 | 207-62-61311 | TUBE | 30001-32249 | |
| 4 | 207-62-61321 | TUBE | 30001-32249 | |
| 5 | 07000-13035 | O-RING | 30001-32249 | |
| 6 | 07372-21040 | BOLT | 30001-32249 | |
| 7 | 01643-51032 | WASHER | 30001-32249 | |
| 8 | 07098-01009 | HOSE | 30001-32249 | |
| 9 | 207-62-61590 | HOSE, 950MM | 30001-32249 | |
| 10 | 07000-13032 | O-RING | 30001-32249 | |
| 11 | 07371-31049 | FLANGE | 30001-32249 | |
| 12 | 07372-21035 | BOLT | 30001-32249 | |
| 13 | 01643-51032 | WASHER | 30001-32249 | |
| 14 | 207-62-61571 | BRACKET | 30001-32249 | |
| 15 | 205-62-73430 | SEAT | 30001-32249 | |
| 16 | 207-62-54770 | CLAMP | 30001-32249 | |
| 17 | 205-62-73430 | SEAT | 30001-32249 | |
| 18 | 01010-81230 | BOLT | 30001-32249 | |
| 19 | 01643-31232 | WASHER | 30001-32249 | |
| 20 | 207-62-61561 | BRACKET | 30001-31999 | |
| 21 | 01010-81230 | BOLT | 30001-31999 | |
| 22 | 01643-31232 | WASHER | 30001-31999 | |
| 23 | 207-62-61571 | BRACKET | 32001-32249 | |
| 23 | 207-62-61541 | BRACKET | 30001-31999 | |
| 24 | 205-62-73430 | SEAT | 30001-32249 | |
| 25 | 01010-81235 | BOLT | 30001-31999 | |
| 26 | 175-54-34170 | WASHER | 30001-31999 | |
| 27 | 207-62-54770 | CLAMP | 30001-32249 | |
| 28 | 205-62-73430 | SEAT | 30001-32249 | |
| 29 | 01010-81230 | BOLT | 30001-@ | |
| 30 | 01643-31232 | WASHER | 30001-@ |
