| Item | Part No. | Part Name | Qty | Serial No. |
| (708-8F-00191) | MOTOR ASS'Y | K40001- | ||

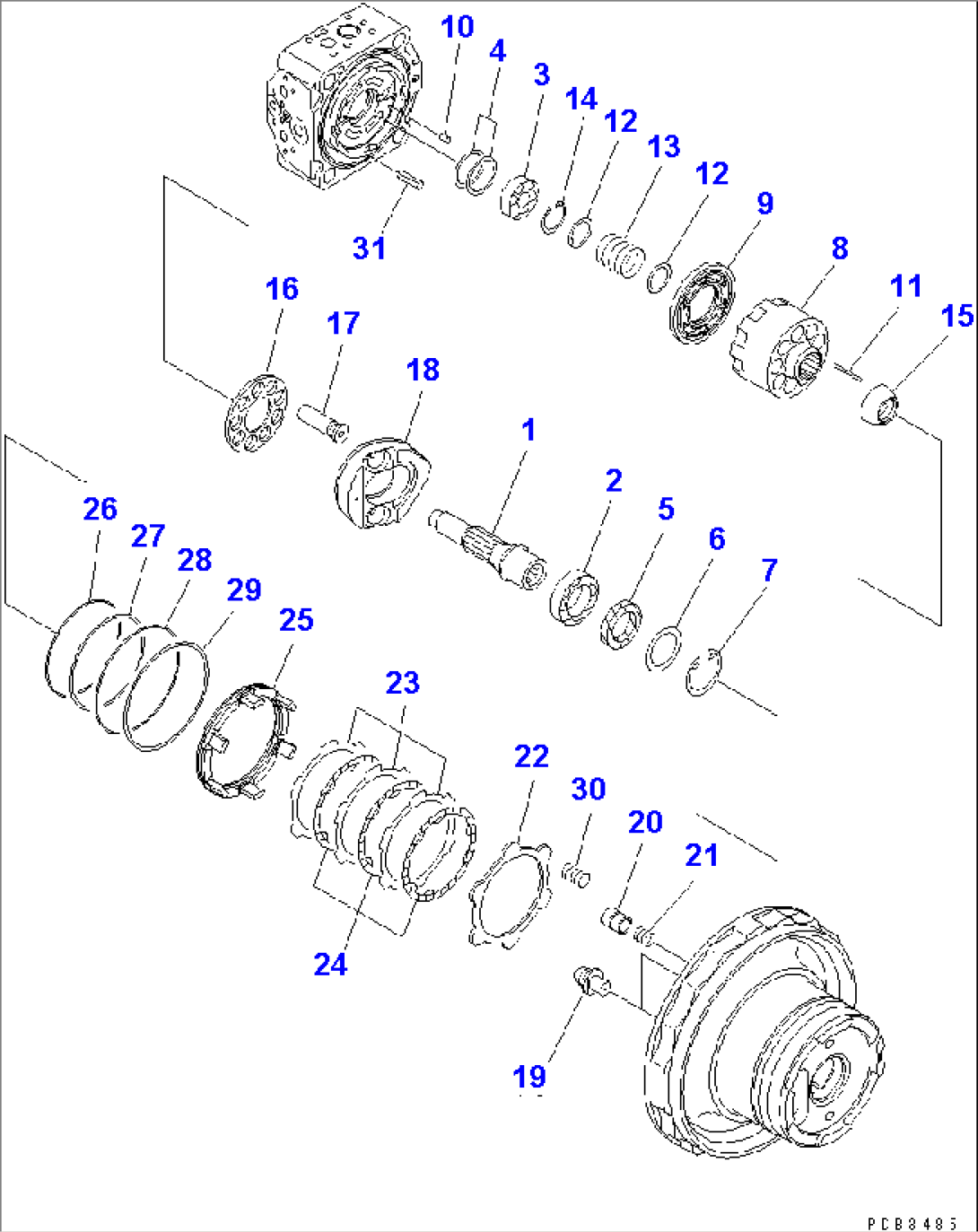

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1641-01A0 TO Y1641-03A0. | ||||
| 1 | (\7\708-8F-32120) | SHAFT | K40001- | |
| 2 | (\7\708-8F-12151) | BEARING | K40001- | |
| 3 | (\7\708-7L-12140) | BEARING | K40001- | |
| 4 | (\7\708-7L-05010) | SPACER KIT | K40001- | |
| \6\ | SPACER¤ 1.5MM | K40001- | ||
| \6\ | SPACER¤ 1.6MM | K40001- | ||
| \6\ | SPACER¤ 1.7MM | K40001- | ||
| \6\ | SPACER¤ 1.8MM | K40001- | ||
| \6\ | SPACER¤ 1.9MM | K40001- | ||
| \6\ | SPACER¤ 2.0MM | K40001- | ||
| 5 | 706-7G-11291 | SEAL,OIL | K40001- | |
| 6 | 708-8F-12230 | SPACER¤ 3.2MM | K40001- | |
| 7 | 04065-07225 | RING | K40001- | |
| 8 | \6\ | BLOCK,CYLINDER | K40001- | |
| 9 | \6\ | PLATE,VALVE | K40001- | |
| 10 | \6\ | PIN | K40001- | |
| 11 | (\7\708-8F-33360) | PIN | K40001- | |
| 12 | (\7\708-7L-13140) | SEAT | K40001- | |
| 13 | (\7\708-8F-33160) | SPRING | K40001- | |
| 14 | (\7\04065-04818) | RING,SNAP | K40001- | |
| 15 | (\7\708-8F-33350) | GUIDE,RETAINER | K40001- | |
| 16 | (\7\708-8F-33340) | RETAINER,SHOE | K40001- | |
| 17 | (\7\708-8F-33310) | PISTON SUB ASS'Y | K40001- | |
| 18 | (\7\708-8F-33470) | CAM,ROCKER | K40001- | |
| 19 | (\7\708-8F-33710) | BALL,RETAINER | K40001- | |
| 20 | (\7\708-8F-34141) | PISTON | K40001- | |
| 21 | (\7\708-8F-34150) | SPRING | K40001- | |
| 22 | (\7\708-8F-35110) | PLATE | K40001- | |
| 23 | (\7\708-8F-35130) | PLATE | K40001- | |
| 24 | (\7\708-8F-35120) | DISC | K40001- | |
| 25 | (\7\708-8F-35140) | PISTON,BRAKE | K40001- | |
| 26 | (\7\708-8F-35160) | O-RING | K40001- | |
| 27 | (\7\708-8F-35170) | RING,BACK-UP | K40001- | |
| 28 | (\7\708-8F-35180) | O-RING | K40001- | |
| 29 | (\7\708-8F-35190) | RING,BACK-UP | K40001- | |
| 30 | (\7\708-8F-35150) | SPRING | K40001- | |
| 31 | (\7\04025-00324) | PIN,SPRING | K40001- |
