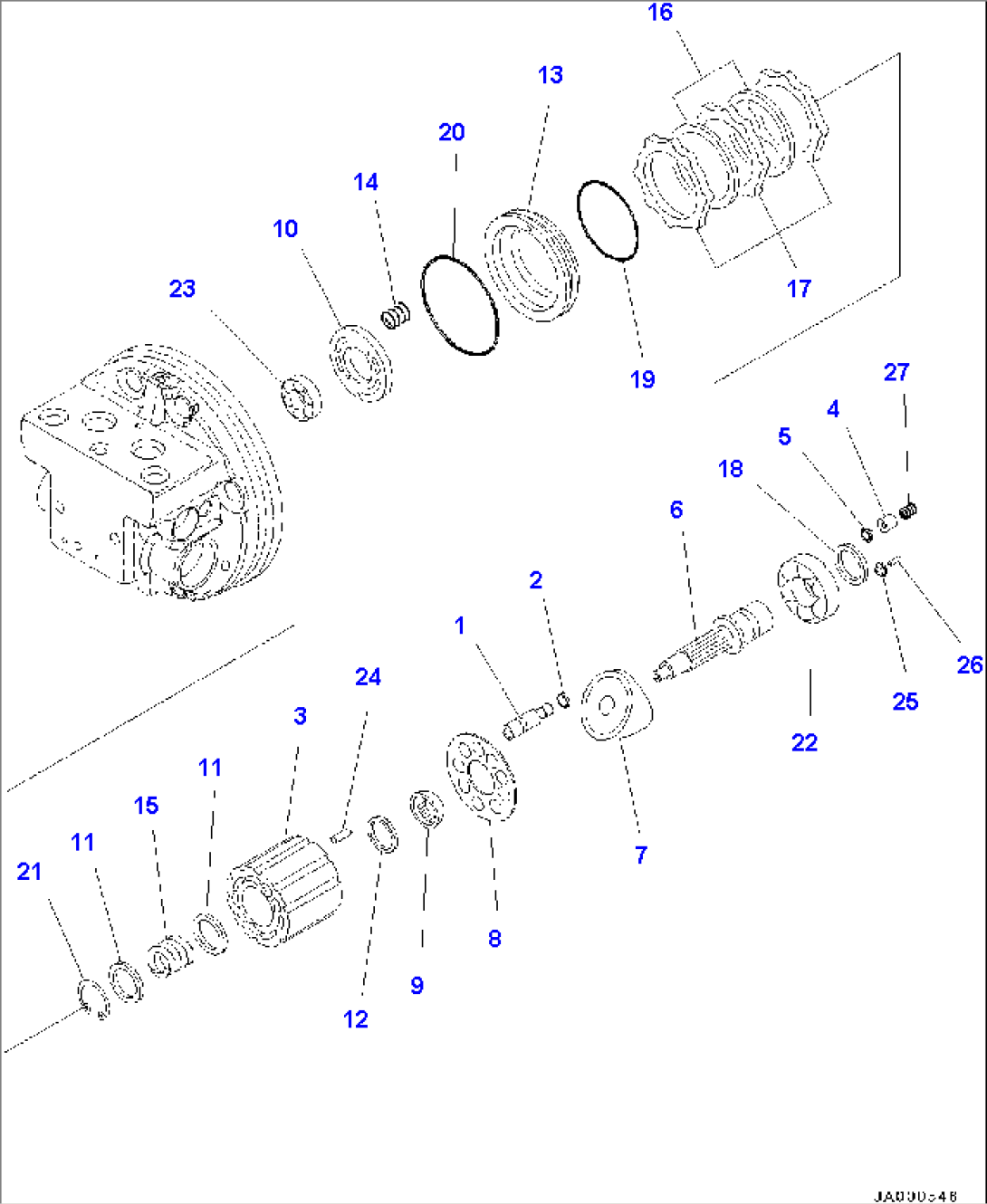

| Item | Part No. | Part Name | Qty | Serial No. |
| 22P-60-11301 | Motor Assembly | 15001- | ||
| TZ110D200001-H | Motor | 15001- | ||
| TZ277B2205-00 | Cylinder and Piston Kit | 15001- | ||
| Piston Kit | 15001- | |||
| Piston Assembly | 15001- | |||
| 1 | Piston | 15001- | ||
| 2 | Shoe | 15001- | ||
| 3 | Cylinder Block | 15001- | ||
| 3 | TZ263B2070-01 | Piston Assembly | 15001- | |
| 4 | Piston | 15001- | ||
| 5 | Shoe | 15001- | ||
| 6 | TZ110D2002-00 | Shaft | 15001- | |
| 7 | TZ110D200300-H | Swash Plate | 15001- | |
| 8 | TZ277B2007-00 | Retainer Plate | 15001- | |
| 9 | TZ263B2008-01 | Thrust Ball | 15001- | |
| 10 | TZ110D2009-01 | Timing Plate | 15001- | |
| 11 | TZ880A2010-00 | Washer | 15001- | |
| 12 | TZ263B2011-03 | Washer | 15001- | |
| 13 | TZ266B2012-00 | Piston | 15001- | |
| 14 | TZ500D2013-00 | Spring | 15001- | |
| 15 | TZ277B2014-00 | Spring | 15001- | |
| 16 | TZ800A2015-00 | Plate | 15001- | |
| 17 | TZ800A2016-00 | Plate | 15001- | |
| 18 | TZTCZ-30-50-9 | Seal, Oil, (Kit : K01) | 15001- | |
| 19 | TZ266B2035-00 | O-ring, (Kit : K01) | 15001- | |
| 20 | TZ266B2039-00 | O-ring, (Kit : K01) | 15001- | |
| 21 | TZTH-R-42 | Ring, Snap | 15001- | |
| 22 | 06000-06206 | Bearing | 15001- | |
| 23 | TZ400G2049-00 | Bearing | 15001- | |
| 24 | TZ263B2098-00 | Roller | 15001- | |
| 25 | TZ263B2076-02 | Pivot | 15001- | |
| 26 | TZ263B2077-01 | Pin | 15001- | |
| 27 | TZ263B2090-00 | Spring | 15001- |
