| Item | Part No. | Part Name | Qty | Serial No. |

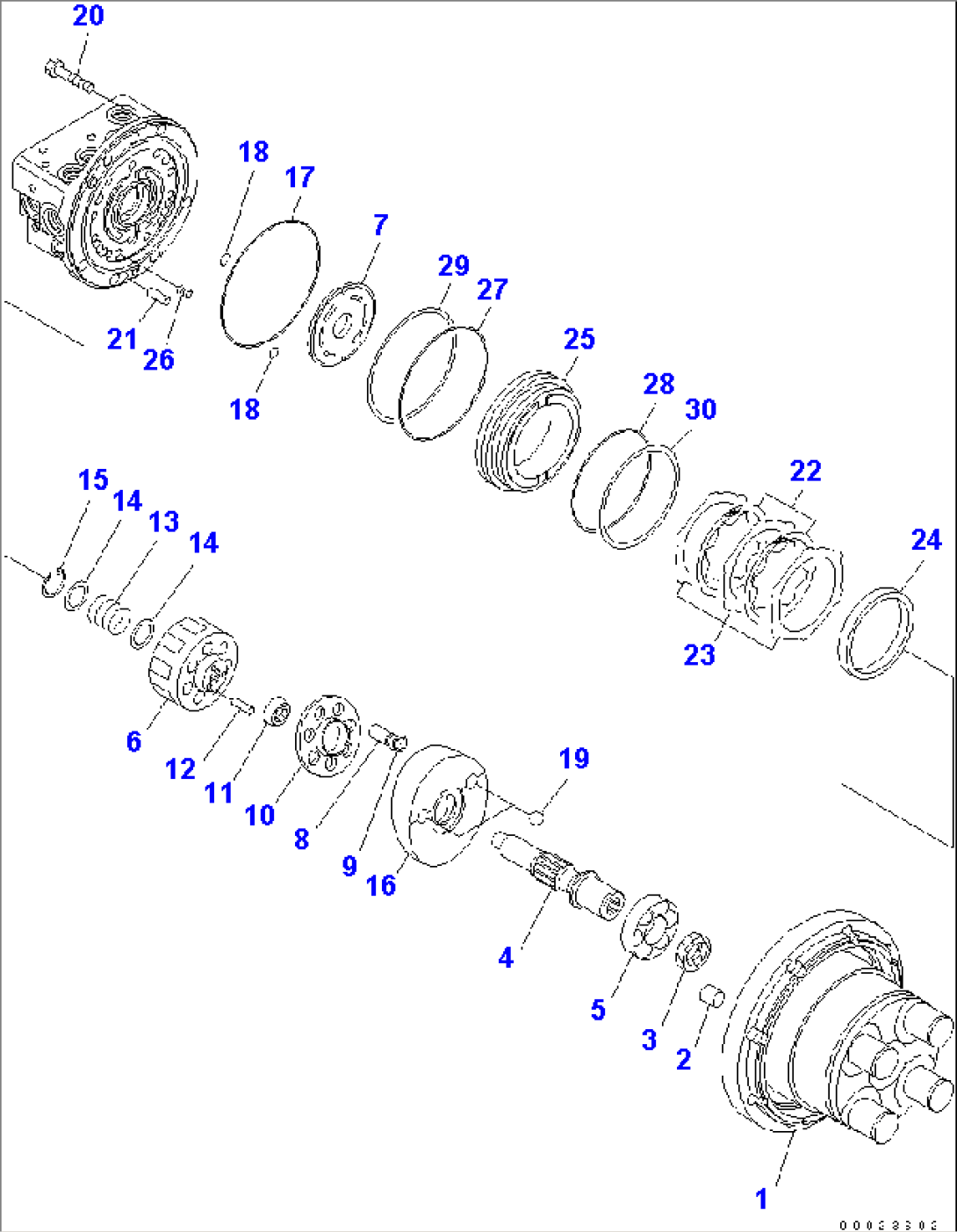

| (22K-60-21101) | MOTOR ASS'Y,TRAVEL | 15001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1651-01A0, 02A0 AND 03A0. | ||||
| FUMVD20200P | BODY SUB ASS'Y | 15001- | ||
| 1 | \6\ | BODY | 15001- | |
| 2 | \6\ | PISTON,CONTROL | 15001- | |
| 3 | \6\ | SEAL,OIL (KIT) | 15001- | |
| FUMVN102000 | SHAFT SUB ASS'Y | 15001- | ||
| 4 | \6\ | SHAFT | 15001- | |
| 5 | \6\ | BEARING | 15001- | |
| FUMVG10200P | CYLINDER BARREL A. | 15001- | ||
| 6 | \6\ | CYLINDER | 15001- | |
| 7 | \6\ | PLATE,VALVE | 15001- | |
| 8 | \6\ | PISTON | 15001- | |
| 9 | \6\ | SHOE | 15001- | |
| 10 | \6\ | HOLDER,SHOE | 15001- | |
| 11 | \6\ | HOLDER,BARREL | 15001- | |
| 12 | \6\ | PIN | 15001- | |
| 13 | \6\ | SPRING | 15001- | |
| 14 | \6\ | RETAINER | 15001- | |
| 15 | \6\ | RING,SNAP | 15001- | |
| 16 | FUMV68102012 | PLATE,SWASH | 15001- | |
| 17 | \6\ | O-RING (KIT) | 15001- | |
| 18 | \6\ | O-RING (KIT) | 15001- | |
| 19 | FUYB5/8 | BALL,STEEL | 15001- | |
| 20 | FUTH8X20 | SCREW | 15001- | |
| 21 | FUPPH76X14 | PIN | 15001- | |
| 22 | FUFZD4679136 | PLATE,DISK | 15001- | |
| 23 | FUFZS2082372 | PLATE,STEEL | 15001- | |
| 24 | FUFZS2082272 | SPACER | 15001- | |
| 25 | FUFZS2082282 | PISTON,BRAKE | 15001- | |
| 26 | FUFZS2082291 | SPRING | 15001- | |
| 27 | \6\ | O-RING (KIT) | 15001- | |
| 28 | \6\ | O-RING (KIT) | 15001- | |
| 29 | \6\ | RING,BACK-UP (KIT) | 15001- | |
| 30 | \6\ | RING,BACK-UP (KIT) | 15001- | |
| SERVICE KIT | ||||
| KIT | FUMVS20200P | SEAL KIT,MOTOR | 15001- |
