| Item | Part No. | Part Name | Qty | Serial No. |
| (361-17-22200) | MOTOR ASS'Y,(A6VM28HA-999-0) | | 10001-10161 |

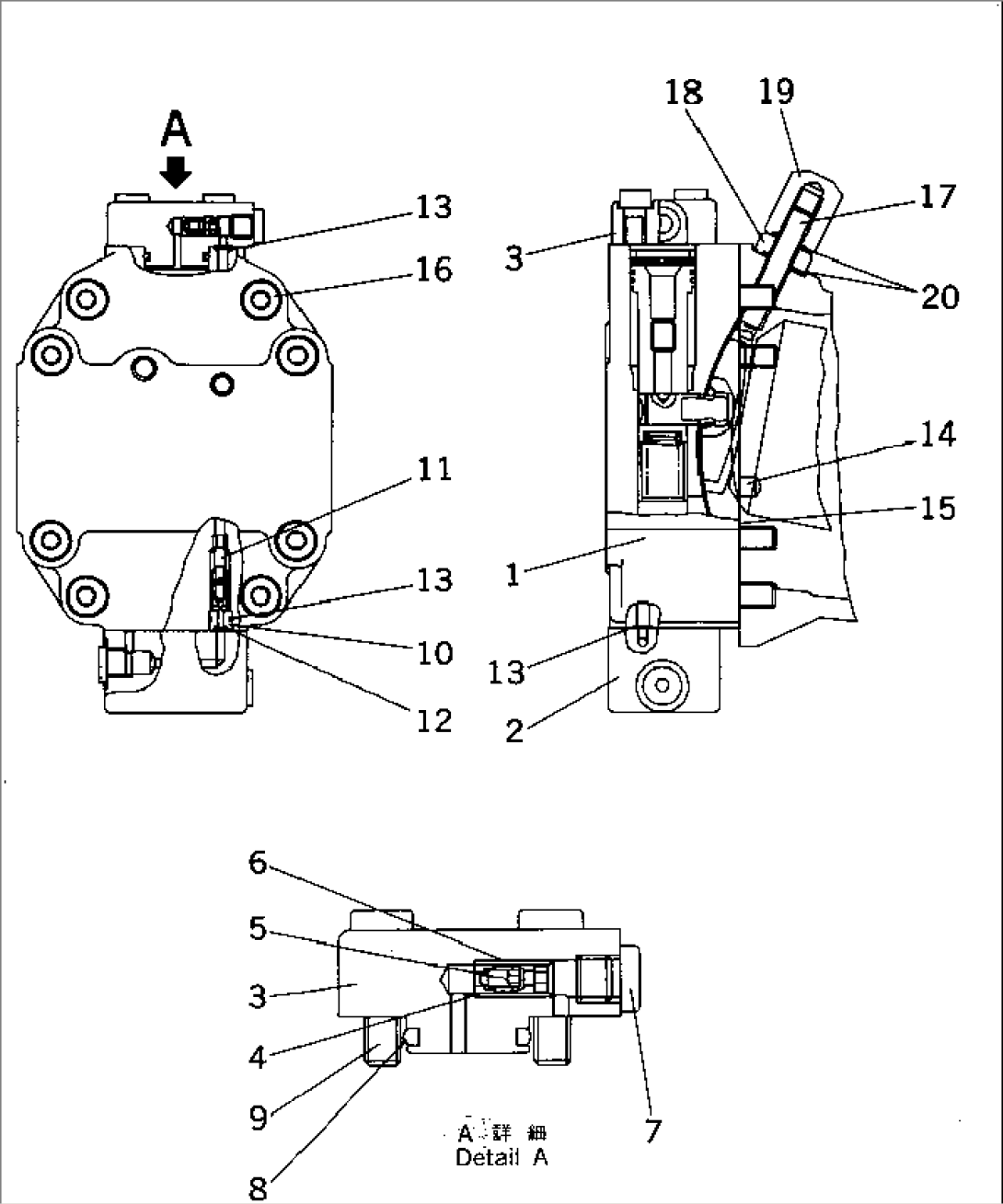

| | THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1651-01A0¤ 02A0 AND 03A0. | | |
| | THE UCHIDA YUATSU PART NUMBER IS THAT UC IS REMOVED FROM KOMATSU PART NUMBER LISTED BELOW. | | |
| (\7\UC4100373089) | CONTROL ASS'Y | | 10001-10161 |
| 1 | (\7\UC4100373127) | BODY ASS'Y | | 10001-10161 |
| 2 | (\7\UC4100373109) | CONTROL ASS'Y | | 10001-10161 |
| (\7\UC4100373118) | REGULATOR ASS'Y | | 10001-10161 |
| 3 | (\7\UC1704213987) | COVER | | 10001-10161 |
| 4 | (\7\UC1704002631) | GUIDE | | 10001-@ |
| 5 | (\7\UC1704258678) | ORIFICE | | 10001-@ |
| 6 | (\7\UC1704002649) | GUIDE | | 10001-@ |
| 7 | (\7\UC1701516926) | PLUG | | 10001-10161 |
| 8 | UC1300158008 | O-RING | | 10001-@ |
| 9 | 01252-30830 | BOLT | | 10001-@ |
| 10 | (\7\UC1704228961) | GUIDE | | 10001-10161 |
| 11 | (\7\UC1704266624) | POPPET | | 10001-10161 |
| 12 | UC1300014009 | O-RING | | 10001-@ |
| 13 | UC1300022009 | O-RING | | 10001-@ |
| 14 | (\7\UC1302181028) | PIN | | 10001-@ |
| 15 | (\7\UC1704350857) | PACKING | | 10001-@ |
| 16 | 01252-30850 | BOLT | | 10001-@ |
| 17 | (\7\UC1701545016) | SCREW,STOPPER | | 10001-10161 |
| 18 | UC1609041836 | NUT | | 10001-10161 |
| 19 | UC1100310505 | NUT,CAP | | 10001-10161 |
| 20 | 02890-01009 | O-RING | | 10001-10161 |
