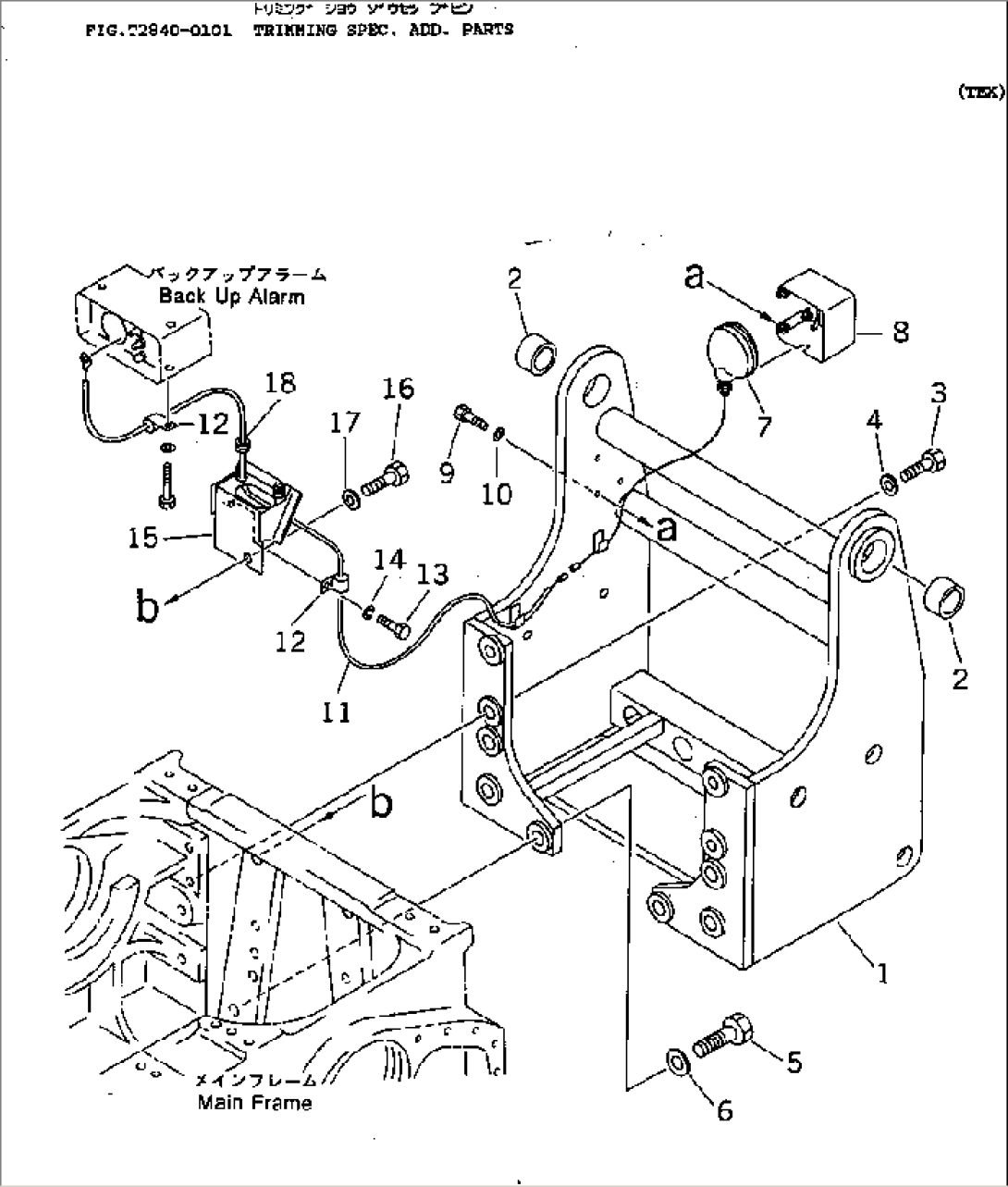

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-916-1210 | GUARD,REAR | 60001- | |
| 2 | 154-55-16860 | BUSHING | 60001- | |
| 3 | 01010-82475 | BOLT | 60001- | |
| 4 | 01643-32460 | WASHER | 60001- | |
| 5 | 01010-83390 | BOLT | 60001- | |
| 6 | 01643-33380 | WASHER | 60001- | |
| 7 | 08138-12410 | LAMP ASS'Y | 60001- | |
| 08105-12420 | BULB¤ 25W | 60001- | ||
| 08138-00106 | LENS¤RED | 60001- | ||
| 8 | 144-Z16-4620 | BRACKET | 60001- | |
| 9 | 01010-51045 | BOLT | 60001- | |
| 10 | 01643-31032 | WASHER | 60001- | |
| 11 | 14X-916-1490 | WIRING HARNESS | 60001- | |
| 12 | 08036-01214 | CLIP | 60001- | |
| 13 | 01010-51220 | BOLT | 60001- | |
| 14 | 01602-21236 | WASHER,SPRING | 60001- | |
| 15 | 14X-916-1430 | COVER | 60001- | |
| 16 | 01010-52450 | BOLT | 60001- | |
| 17 | 01643-32460 | WASHER | 60001- | |
| 18 | 22W-22-17460 | GROMMET | 60476- | |
| 08037-01610 | GROMMET | 60001-60475 |
