| Item | Part No. | Part Name | Qty | Serial No. |
| (154-13-00101) | TORQUE CONVERTER A. | (K9427)- | ||
| (154-13-00100) | TORQUE CONVERTER A. | (K7966)-(K9426) | ||
| \0\154-13-41002 | TORQUE CONVERTER A. | (K1001)-(K7965) | ||

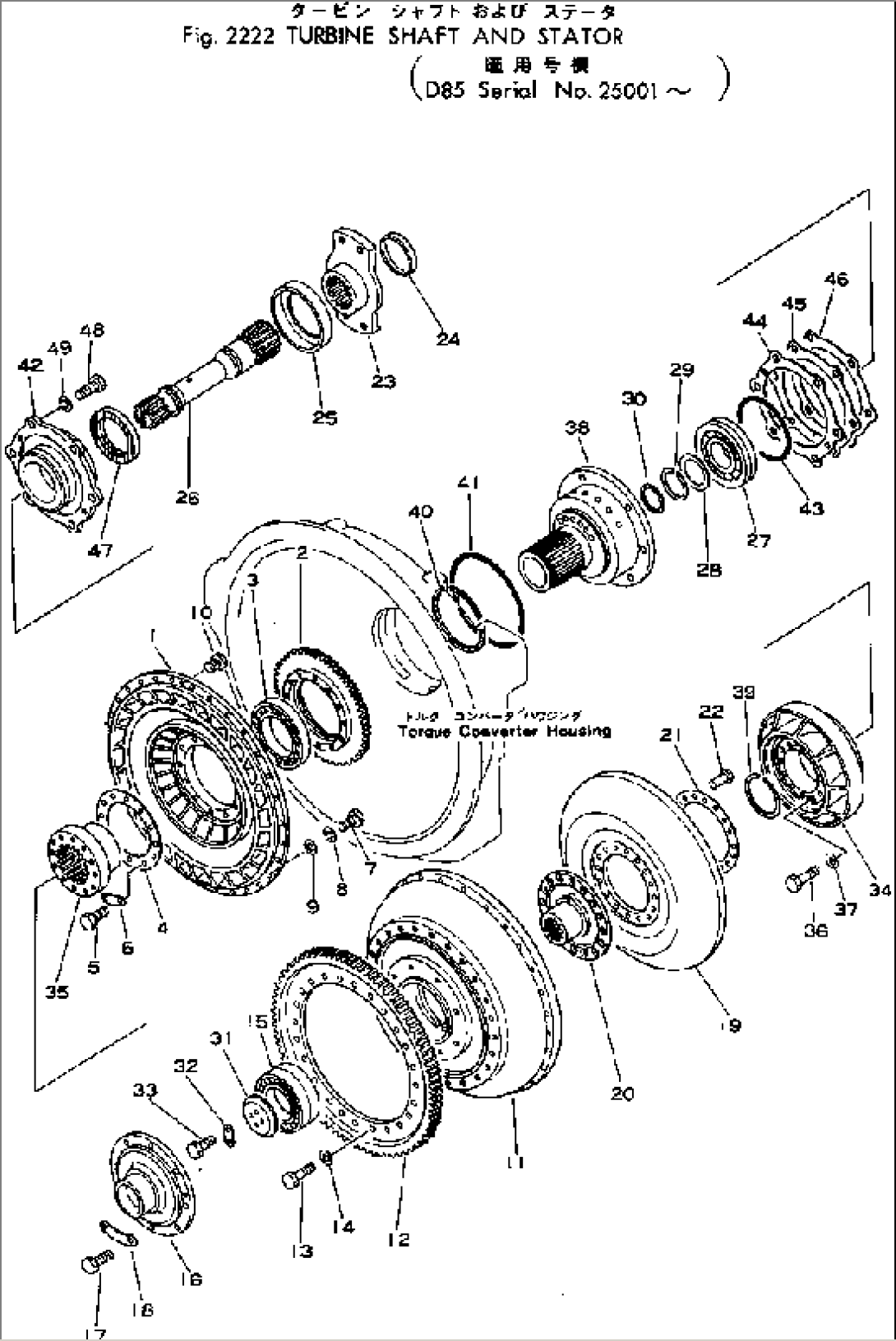

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2221 AND 2222. | ||||
| 1 | 154-13-41123 | PUMP | (K1005)- | |
| 1 | \3\154-13-41120 | PUMP | (K1001)-(K1004) | |
| (154-13-41123,154-13-41141, 01010-51035(12) | ||||
| 2 | 154-13-41141 | GEAR | (K1005)- | |
| 2 | 154-13-41140 | GEAR | (K1001)-(K1004) | |
| 3 | 154-13-41160 | BEARING | (K1001)- | |
| 4 | 154-13-51180 | PLATE | (K9427)- | |
| 4 | 154-13-41180 | PLATE | (K1001)-(K9426) | |
| 5 | 01010-61035 | BOLT | (K1005)- | |
| 5 | 01010-51025 | BOLT | (K1001)-(K1004) | |
| 6 | 154-13-41150 | PLATE,LOCK (KIT) | (K1001)-(K9426) | |
| 7 | 01010-61035 | BOLT | (K1001)- | |
| 8 | 01602-21030 | WASHER,SPRING | (K1001)- | |
| 9 | 01643-31032 | WASHER | (K1001)- | |
| 10 | 07040-11007 | PLUG | (K1001)- | |
| 154-13-00011 | CASE ASS'Y | (K1001)- | ||
| 11 | 234-13-11211 | CASE | (K1001)- | |
| 12 | 175-13-21220 | GEAR | (K1001)- | |
| 13 | 01010-61230 | BOLT | (K1001)- | |
| 14 | 01643-31232 | WASHER | (K1001)- | |
| 15 | 154-13-11240 | BEARING | (K1001)- | |
| 16 | 234-13-11250 | PILOT | (K1001)- | |
| 17 | 01010-61230 | BOLT | (K1001)- | |
| 18 | 195-13-11261 | PLATE,LOCK (KIT) | (K1001)- | |
| 154-13-41510 | TURBINE ASS'Y | (K1001)- | ||
| 19 | \6\ | TURBINE | (K1001)- | |
| 20 | \6\ | BOSS | (K1001)- | |
| 21 | \6\ | PLATE | (K1001)- | |
| 22 | \6\ | RIVET | (K1001)- | |
| 154-13-41660 | COUPLING ASS'Y | (K1001)- | ||
| 23 | \6\ | COUPLING | (K1001)- | |
| 24 | \6\ | COVER | (K1001)- | |
| 25 | \6\ | COVER | (K1001)- | |
| 26 | 154-13-41652 | SHAFT | (K7966)- | |
| 26 | \0\154-13-41651 | SHAFT | (K1001)-(K7965) | |
| 27 | 154-13-13360 | BEARING | (K1001)- | |
| 28 | 154-13-11730 | SPACER | (K1001)- | |
| 29 | 04064-06020 | RING,SNAP | (K1001)- | |
| 30 | 175-13-21720 | RING,SEAL | (K1001)- | |
| 31 | 175-13-21691 | HOLDER | (K1001)- | |
| 32 | 175-13-21711 | PLATE,LOCK (KIT) | (K1001)- | |
| 33 | 175-13-21810 | BOLT | (K1001)- | |
| 34 | 154-13-42110 | STATOR | (K1001)- | |
| 35 | 154-13-42120 | RACE | (K1001)- | |
| 36 | 01010-61030 | BOLT | (K1001)- | |
| 37 | 01643-31032 | WASHER | (K1001)- | |
| 38 | 154-13-42521 | SHAFT | (K1001)- | |
| 39 | 04064-08025 | RING,SNAP | (K1001)- | |
| 40 | 154-13-42710 | RING,SEAL | (K1001)- | |
| 41 | 07000-65190 | O-RING (KIT) | (K1001)- | |
| 42 | 154-13-42720 | COVER | (K1001)- | |
| 43 | 07000-62130 | O-RING (KIT) | (K1001)- | |
| 44 | 195-13-05020 | SHIM ASS'Y (KIT) | (K1001)- | |
| 44 | \6\ | SHIM, 0.05MM (KIT) | (K1001)- | |
| 45 | \6\ | SHIM, 0.2MM (KIT) | (K1001)- | |
| 46 | \6\ | SHIM, 0.1MM (KIT) | (K1001)- | |
| 47 | 175-13-22760 | SEAL,OIL (KIT) | (K1001)- | |
| 48 | 01010-51240 | BOLT | (K1001)- | |
| 49 | 01602-21236 | WASHER,SPRING | (K1001)- |
