| Item | Part No. | Part Name | Qty | Serial No. |

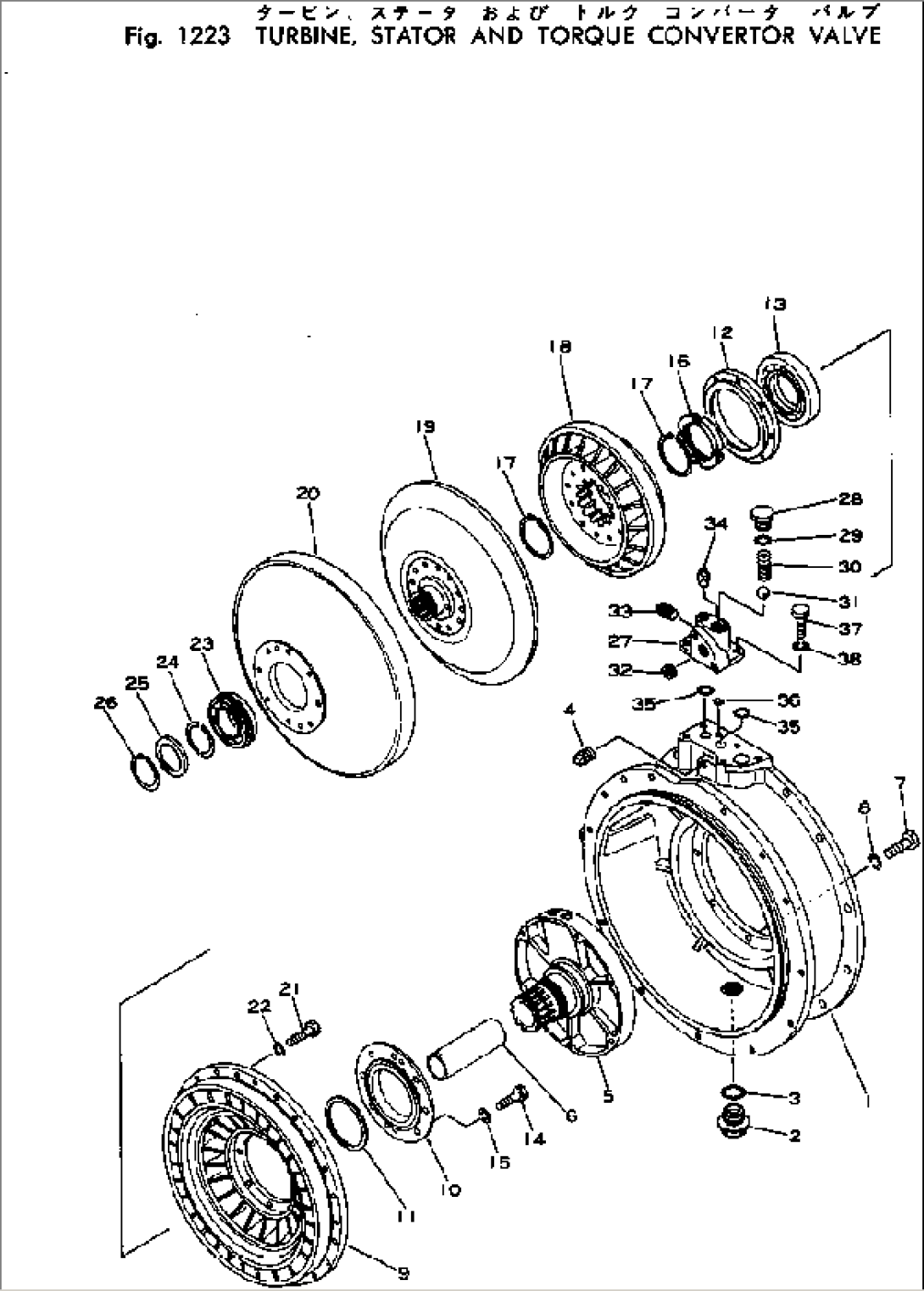

| (134-13-21000) | TORQUE CONVERTER A. | K1001- | ||
| 1 | 135-13-33120 | HOUSING | K1001- | |
| 2 | 07044-13620 | PLUG | K1001- | |
| 3 | 07000-33032 | O-RING (KIT) | K1001- | |
| 4 | 07042-20108 | PLUG | K1001- | |
| 135-13-32510 | SHAFT ASS'Y | K1001- | ||
| 5 | 135-13-32520 | SHAFT | K1001- | |
| 6 | 135-13-32540 | SLEEVE | K1001- | |
| 7 | 01010-31235 | BOLT | K1001- | |
| 8 | 01602-01236 | WASHER | K1001- | |
| 9 | 134-13-21120 | PUMP | K1001- | |
| 10 | 135-13-31180 | COVER | K1001- | |
| 11 | 135-13-32710 | RING | K1001- | |
| 12 | 135-13-31140 | RETAINER | K1001- | |
| 13 | 135-13-31160 | BEARING | K1001- | |
| 14 | 01010-31035 | BOLT | K1001- | |
| 15 | 01602-01030 | WASHER | K1001- | |
| 16 | 135-13-32530 | NUT | K1001- | |
| 17 | 04064-06525 | RING | K1001- | |
| 18 | 135-13-32110 | STATOR | K1001- | |
| 19 | 135-13-31510 | TURBINE | K1001- | |
| 20 | 135-13-31211 | CASE | K1001- | |
| 21 | 01010-61035 | BOLT | K1001- | |
| 22 | 01643-31032 | WASHER | K1001- | |
| 23 | 06043-06210 | BEARING | K1001- | |
| 24 | 135-13-31570 | SPACER | K1001- | |
| 25 | 135-13-31580 | RING | K1001- | |
| 26 | 04064-05020 | RING | K1001- | |
| 135-13-36100 | VALVE ASS'Y | K1001- | ||
| 27 | 135-13-36110 | BODY | K1001- | |
| 28 | 135-13-36150 | PLUG | K1001- | |
| 29 | 07000-33022 | O-RING (KIT) | K1001- | |
| 30 | 125-15-14152 | SPRING | K1001- | |
| 31 | 04260-01587 | BALL | K1001- | |
| 32 | 135-13-36710 | PLUG | K1001- | |
| 33 | 07042-20108 | PLUG | K1001- | |
| 34 | 07043-00108 | PLUG | K1001- | |
| 35 | 07000-63025 | O-RING (KIT) | K1001- | |
| 36 | 07000-62014 | O-RING (KIT) | K1001- | |
| 37 | 01010-31030 | BOLT | K1001- | |
| 38 | 01602-01030 | WASHER | K1001- |
