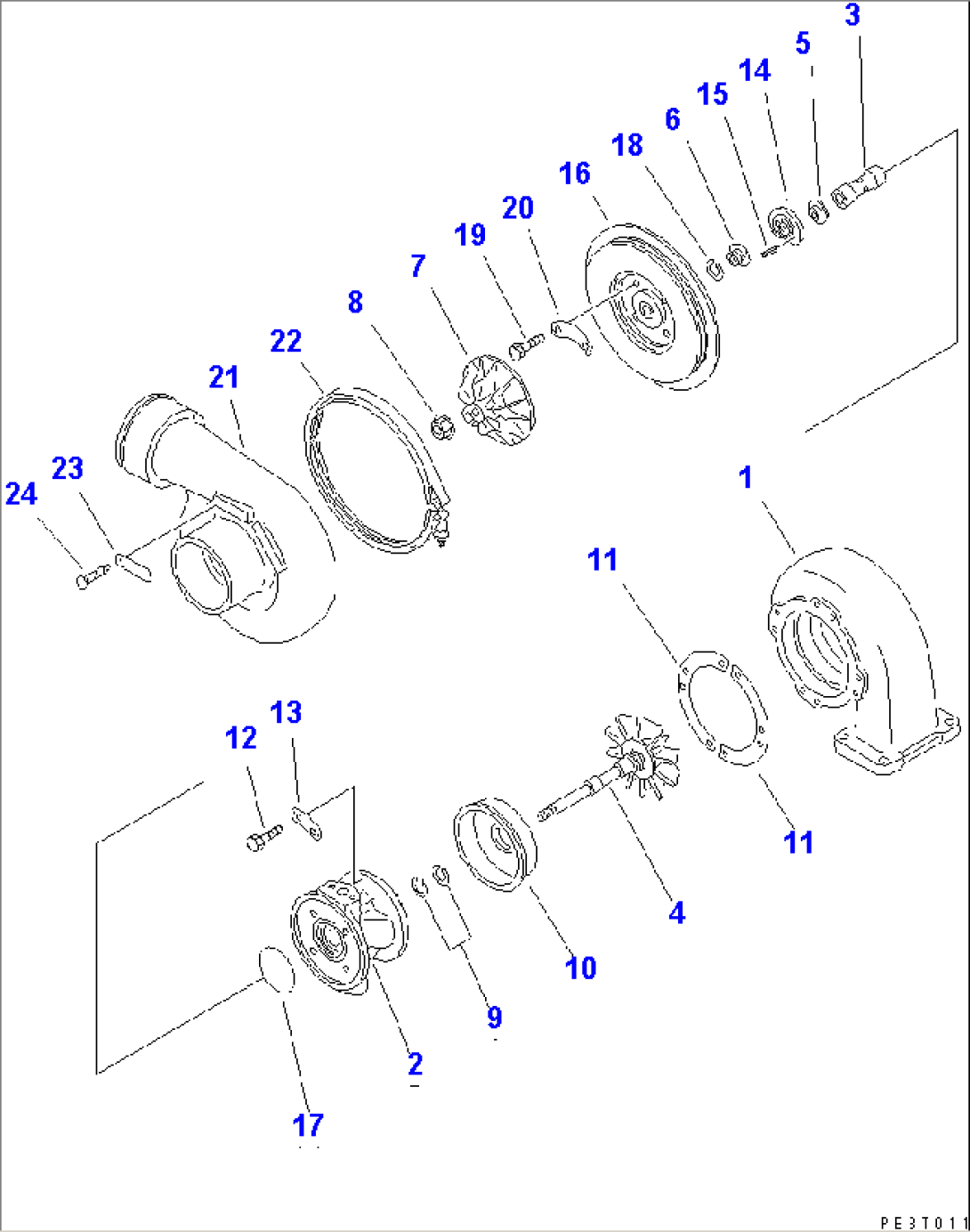

| Item | Part No. | Part Name | Qty | Serial No. |
| 6505-52-5350 | TURBOCHARGER ASS'Y,(KTR110-444B) | 17630- | ||
| 1 | 6505-11-4420 | HOUSING,TURBINE | 17630- | |
| 2 | 6505-51-0020 | HOUSING,CENTER | 17630- | |
| 3 | 6505-51-0111 | BEARING,JOURNAL | 17630- | |
| 4 | 6505-51-3120 | ROTOR,TURBINE | 17630- | |
| 5 | 6505-51-0210 | COLLAR | 17630- | |
| 6 | 6505-51-0251 | FLINGER | 17630- | |
| 7 | 6505-51-1011 | IMPELLER,BLOWER | 17630- | |
| 8 | 6505-11-0410 | NUT,LOCK | 11397- | |
| 9 | 6505-51-0310 | RING,SEAL | 17630- | |
| 10 | 6505-51-0711 | SHIELD,HEAT | 17630- | |
| 11 | 6505-11-0520 | PLATE | 17630- | |
| 12 | 01020-11016 | BOLT | 11401- | |
| 13 | 6505-11-0550 | LOCK | 11945- | |
| 14 | 6505-51-0151 | BEARING,THRUST | 17630- | |
| 15 | 04022-04008 | PIN,DOWEL | 11397- | |
| 16 | 6505-51-0811 | PLATE,DIFFUSER | 17630- | |
| 17 | 07000-E2065 | O-RING | 17630- | |
| 18 | 6505-51-0351 | RING,SEAL | 17630- | |
| 19 | 01010-30816 | BOLT | 11397- | |
| 20 | 6505-51-0610 | LOCK | 17630- | |
| 21 | 6505-52-2010 | HOUSING,BLOWER | 17630- | |
| 22 | 6505-11-0450 | V-BAND | 11397- | |
| 23 | 6505-51-9410 | PLATE | 17630- | |
| 24 | 04418-02550 | SCREW | 11397- |
