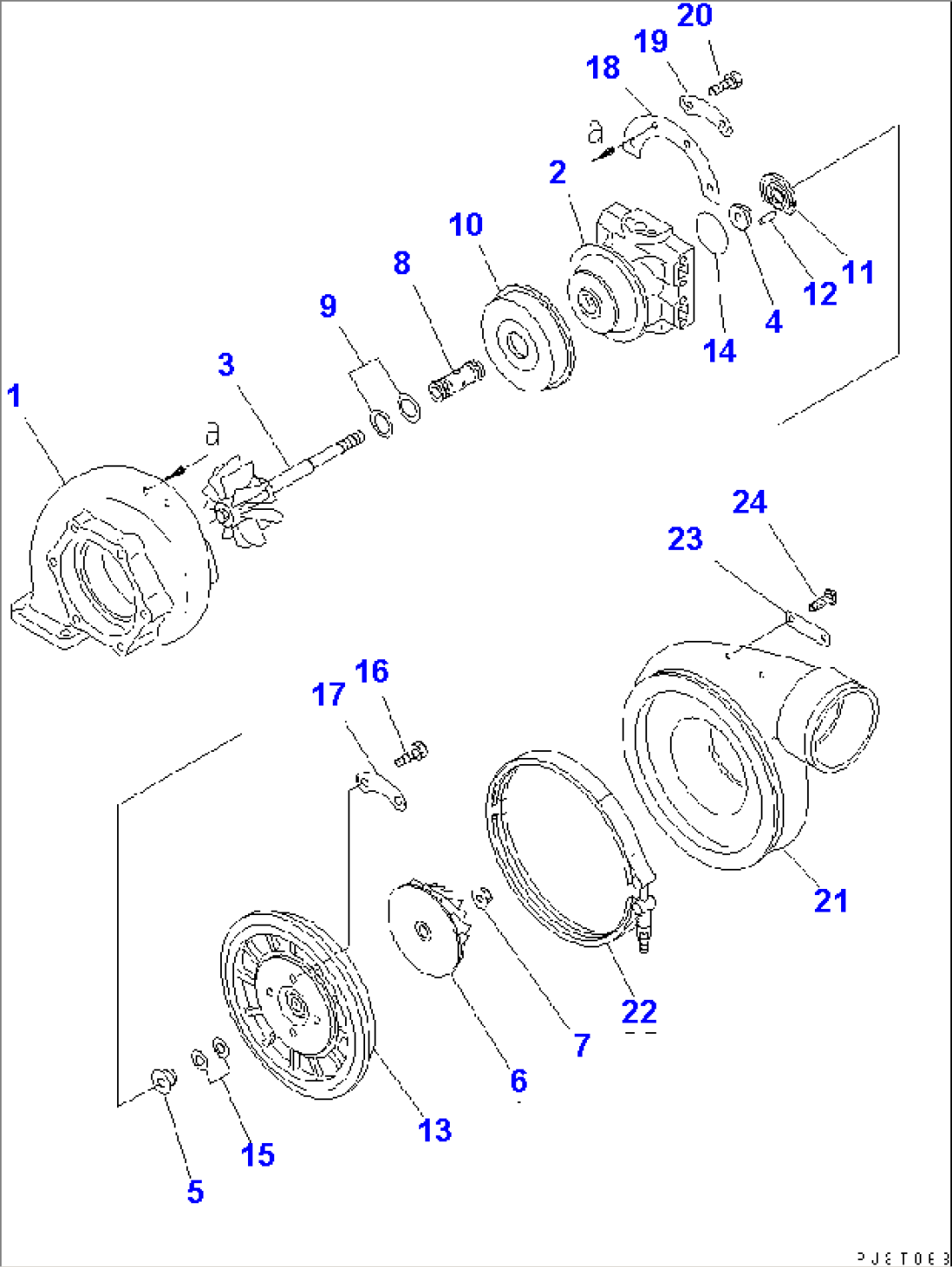

| Item | Part No. | Part Name | Qty | Serial No. |
| 6505-51-5032 | TURBOCHARGER ASS'Y,L.H. (KTR110G-F45C) | | 11097-@ |
| 6505-51-5042 | TURBOCHARGER ASS'Y,R.H. (KTR110G-F45C) | | 11097-@ |
| 1 | 6505-31-4320 | HOUSING,TURBINE | | 11097-@ |
| 6505-51-6871 | CORE ASS'Y | | 11097-@ |
| 2 | 6505-51-0011 | HOUSING,CENTER | | 10357-@ |
| 6505-51-6960 | ROTOR ASS'Y | | 11097-@ |
| 3 | (\7\6505-51-3120) | ROTOR,TURBINE | | 10357-@ |
| 4 | (\7\6505-51-0210) | COLLAR,THRUST | | 10357-@ |
| 5 | (\7\6505-51-0252) | FLINGER | | 10357-@ |
| 6 | (\7\6505-51-1081) | IMPELLER,BLOWER | | 11097-@ |
| 7 | (\7\6505-11-0410) | NUT,LOCK | | 10357-@ |
| 8 | (\7\6505-51-0111) | BEARING,JOURNAL | | 10357-@ |
| 9 | 6505-51-0310 | RING,SEAL | | 10357-@ |
| 10 | 6505-51-0711 | SHIELD,HEAT | | 10357-@ |
| 11 | 6505-51-0151 | BEARING,THRUST | | 10357-@ |
| 12 | 04022-04008 | PIN,DOWEL | | 10357-@ |
| 13 | 6505-51-0811 | PLATE,DIFFUSER | | 10357-@ |
| 14 | 07000-E2065 | O-RING | | 10357-@ |
| 15 | 6505-51-0351 | RING,SEAL | | 10357-@ |
| 16 | 01010-E0816 | BOLT | | 10357-@ |
| 17 | 6505-51-0610 | LOCK | | 10357-@ |
| 18 | 6505-11-0520 | PLATE | | 10357-@ |
| 19 | 6505-11-0550 | LOCK | | 11530-@ |
| 20 | 01020-11016 | BOLT | | 10357-@ |
| 21 | 6505-51-2080 | HOUSING,BLOWER | | 11097-@ |
| 22 | 6505-11-0450 | V-BAND | | 10357-@ |
| 23 | 6505-51-9172 | PLATE, NAME,L.H. (LIMITED SUPPLY) | | 11530-11833 |
| 23 | 6505-51-9182 | PLATE, NAME,R.H. (LIMITED SUPPLY) | | 11530-11833 |
| 24 | 04418-02550 | SCREW | | 10357-@ |
