| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6732-81-8810 | STUD | 26302312- | |
| 2 | 6732-81-8820 | NUT | 26302312- | |
| 6738-81-8030 | KIT | 26302312- | ||
| 3 | \6\ | TURBOCHARGER | 26302312- | |
| 4 | 6207-51-7690 | GASKET | 26302312- | |
| 5 | 6732-81-8830 | GASKET | 26302312- | |
| 6 | 6738-11-4370 | O-RING | 26302312- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa250pt 5 s/n h60051 up
- Y0 service kit and component parts
- Turbocharger mounting
Поиск по каталогу

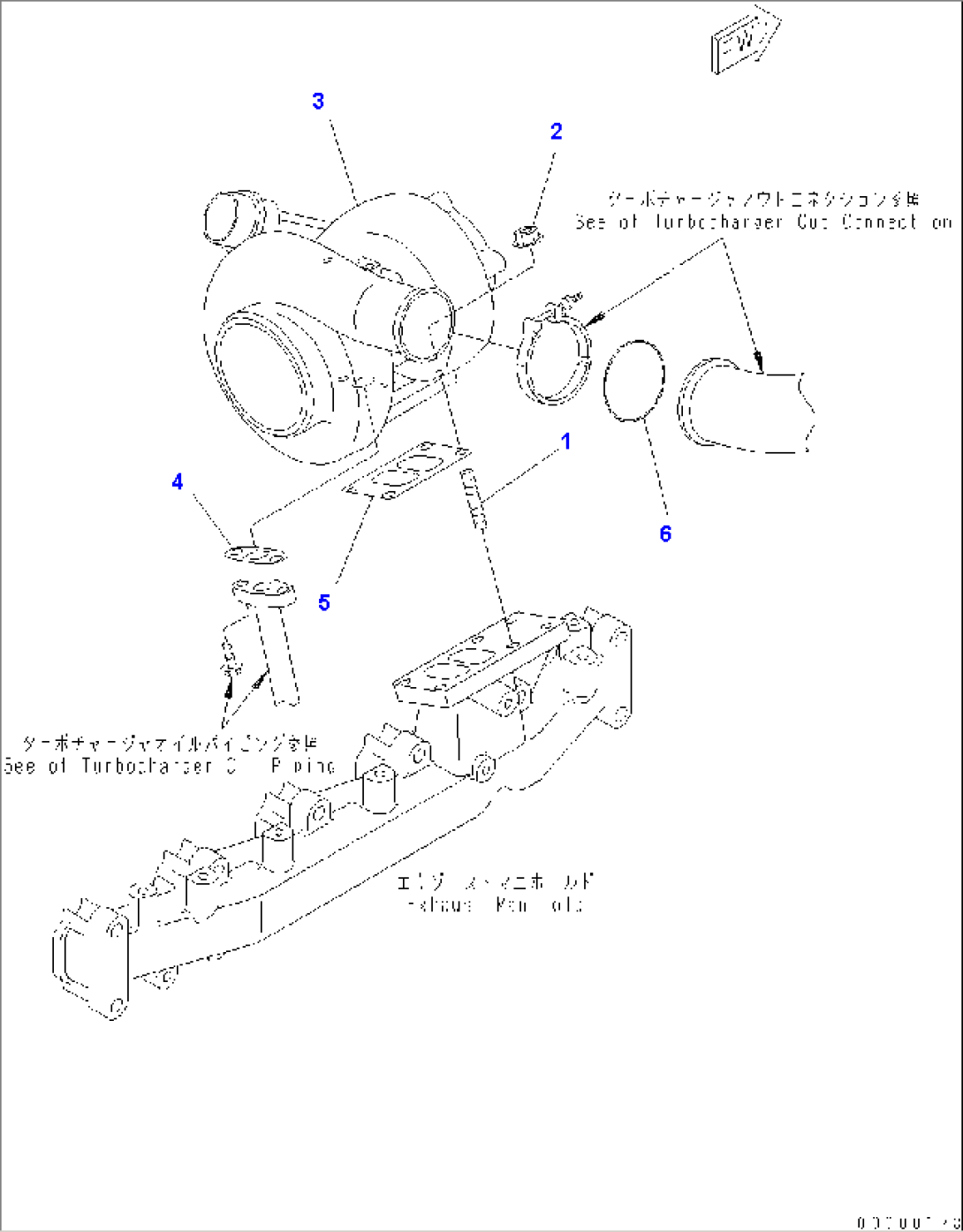

TURBOCHARGER MOUNTING
