| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 6738-11-4320 | PIPE | 26294599- | |
| \0\6738-11-4310 | PIPE | 26274903-26294598 | ||
| 2 | 07043-70108 | PLUG | 26274903- | |
| 3 | 6738-11-4370 | O-RING | 26274903- | |
| 4 | 6738-11-4380 | CLAMP | 26274903- | |
| 5 | 6738-11-4390 | NUT | 26274903- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa250pt 5 s/n h60051 up
- Y0 service kit and component parts
- Turbocharger out connection
Поиск по каталогу

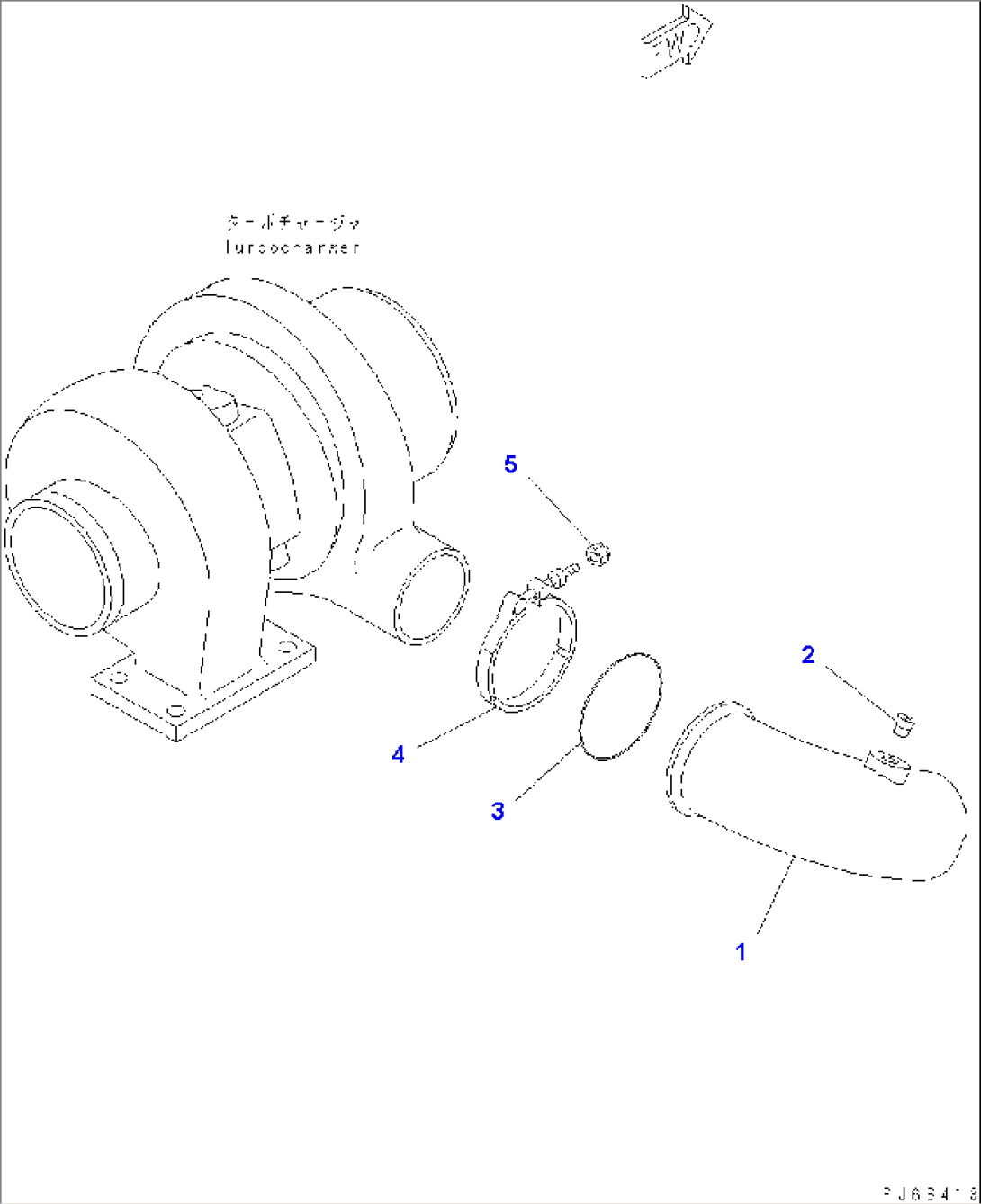

TURBOCHARGER OUT CONNECTION
