| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | MM0047 | CAPSCREW - M10 X 1.50 X 30 | ||
| 2 | MM0471 | LOCKWASHER - M10 | ||
| 3 | EC8885 | FLAP, RUBBER | ||
| 4 | EL2137 | BRACKET | ||
| 4 | EC8890 | BRACKET | ||
| 5 | EC8889 | ANGLE, MOUNTING |
- Главная
- Каталог запчастей
- Самосвалы
- Afe50 bw 830e s/n a30771/a30778 (iocc)
- Body group
- Under cab mudflap installation
Поиск по каталогу

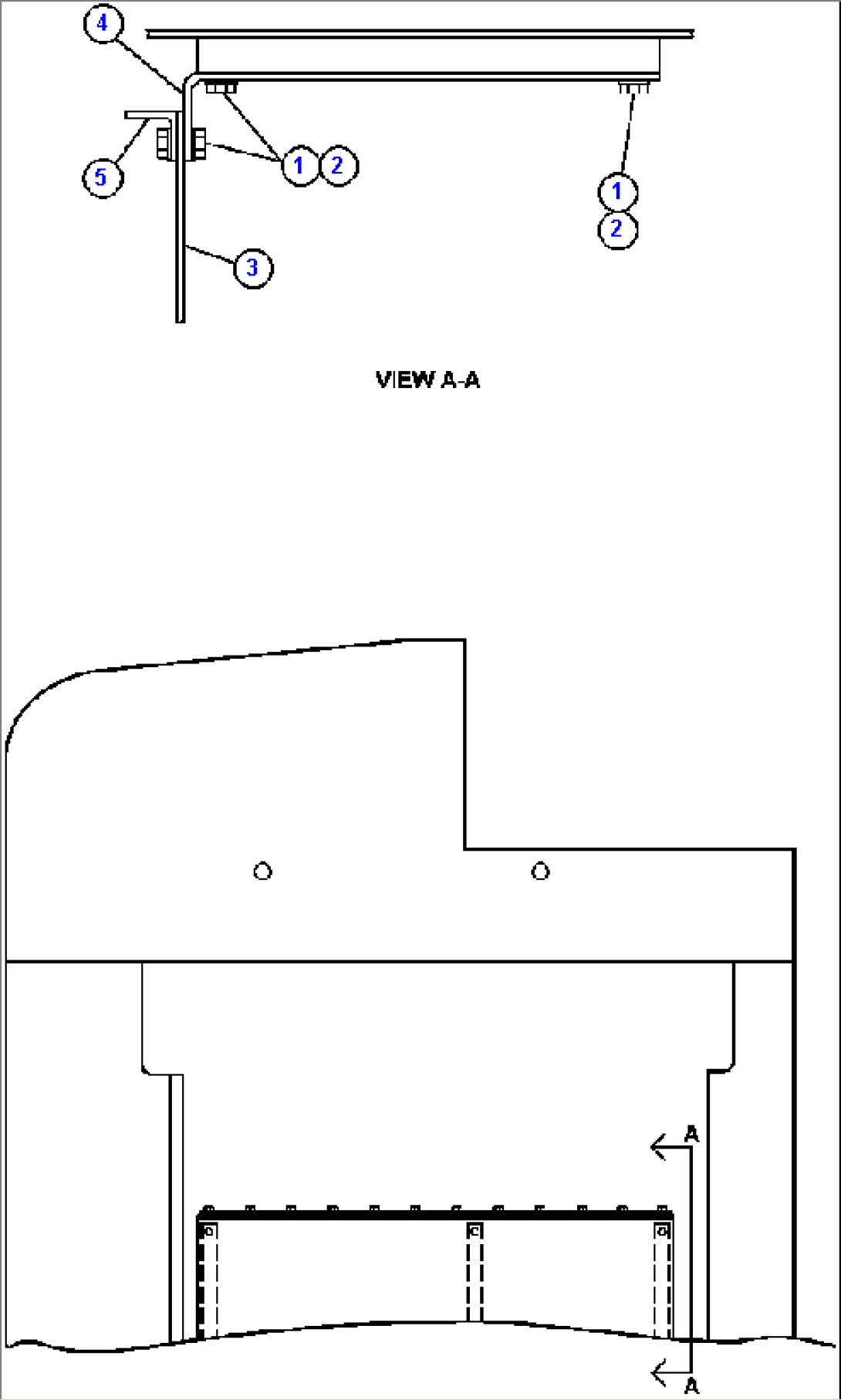

UNDER CAB MUDFLAP INSTALLATION
