| Item | Part No. | Part Name | Qty | Serial No. |
| G-1 | (\8\208-30-X4120) | TRACK FRAME GROUP | 10001- | |
| ==================== | ||||
| 1 | 205-30-71410 | COVER | 10001- | |
| 2 | 205-30-71420 | COVER | 10001- | |
| 3 | 01010-51235 | BOLT | 10001- | |
| 4 | 01643-31232 | WASHER | 10001- | |
| ==================== |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc410 5 s/n 10001 up
- Under carriage
- Under cover (for center frame) (for variable gauge)
Поиск по каталогу

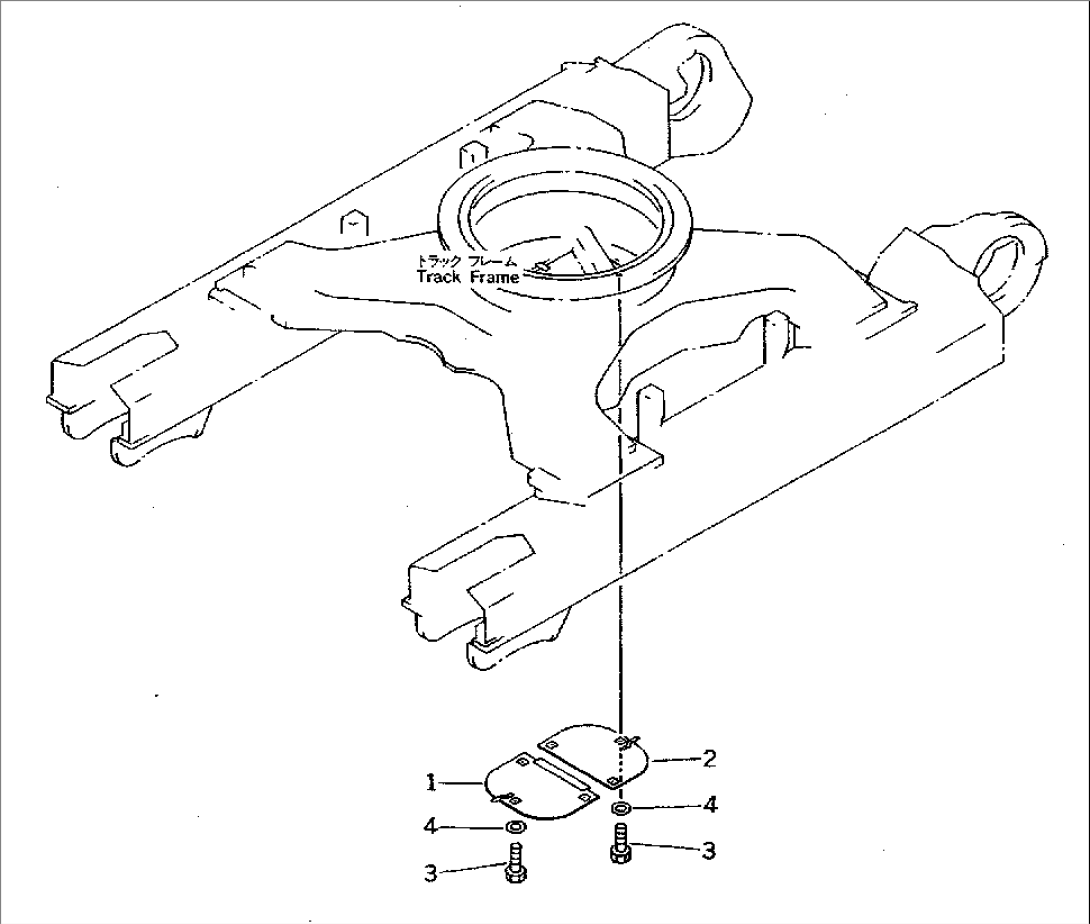

UNDER COVER (FOR CENTER FRAME) (FOR VARIABLE GAUGE)
