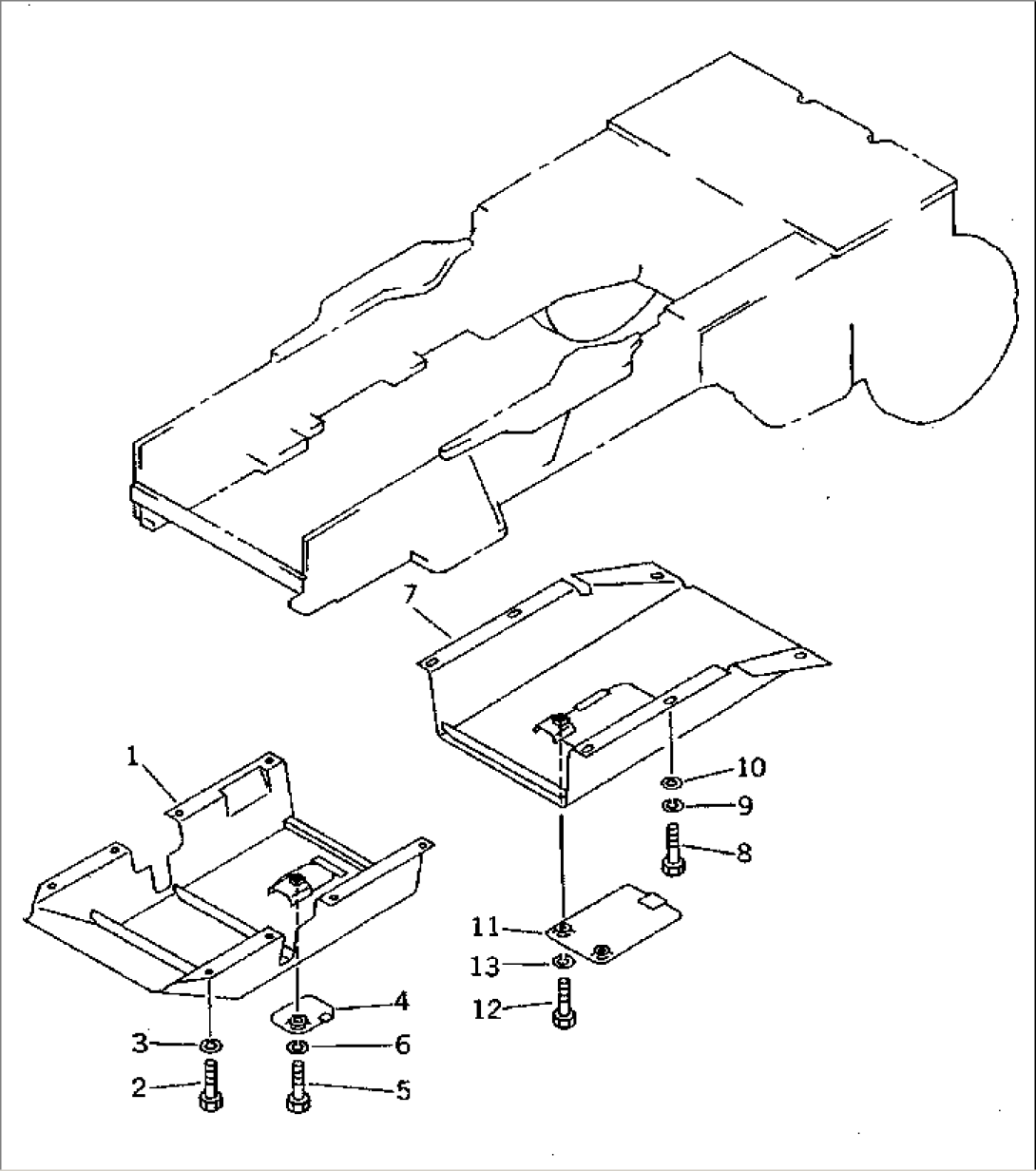

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 114-54-51420 | GUARD,FRONT | 47617- | |
| 1 | 113-54-45110 | GUARD,FRONT | 45001-47616 | |
| 2 | 01010-51435 | BOLT | 45001- | |
| 3 | 01602-21442 | WASHER,SPRING | 45001- | |
| 4 | 114-54-51430 | COVER | 47617- | |
| 4 | 113-54-25120 | COVER | 45001-47616 | |
| 5 | 01010-51025 | BOLT | 45001- | |
| 6 | 01602-21030 | WASHER,SPRING | 45001- | |
| 7 | 11G-54-45110 | GUARD,REAR | 45001- | |
| 8 | 01010-51435 | BOLT | 45001- | |
| 9 | 01602-21442 | WASHER,SPRING | 45001- | |
| 10 | 01643-31445 | WASHER | 45001- | |
| 11 | 113-54-25140 | COVER | 45001- | |
| 12 | 01010-51025 | BOLT | 45001- | |
| 13 | 01602-21030 | WASHER,SPRING | 45001- |
