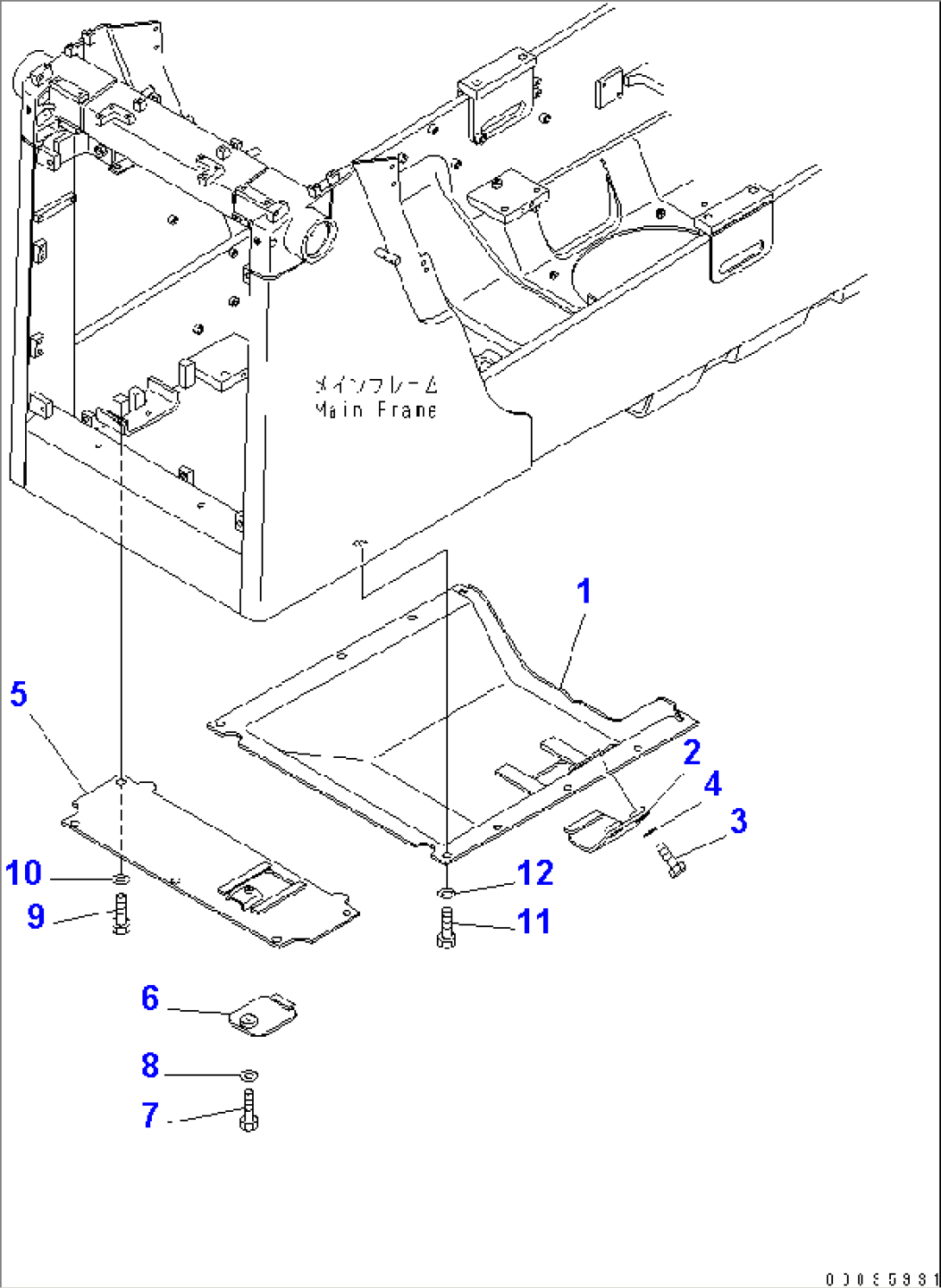

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-54-35130 | GUARD,FRONT | 67001- | |
| 2 | 14X-54-15321 | COVER | 67001- | |
| 3 | 01010-81225 | BOLT | 67001- | |
| 4 | 01643-31232 | WASHER | 67001- | |
| 5 | \6\ | COVER | 67001- | |
| 6 | 14X-54-15220 | COVER | 67001- | |
| 7 | 01010-81225 | BOLT | 67001- | |
| 8 | 01643-31232 | WASHER | 67001- | |
| 9 | 01010-81640 | BOLT | 67001- | |
| 10 | 01643-31645 | WASHER | 67001- | |
| 11 | 01010-81640 | BOLT | 67001- | |
| 12 | 01643-31645 | WASHER | 67001- | |
| SERVICE PARTS | ||||
| 5 | 14X-54-00210 | COVER ASS'Y | 67001- | |
| 5 | \6\ | COVER | 67001- | |
| 6 | 14X-54-15220 | COVER | 67001- | |
| 7 | 01010-81225 | BOLT | 67001- | |
| 8 | 01643-31232 | WASHER | 67001- |
