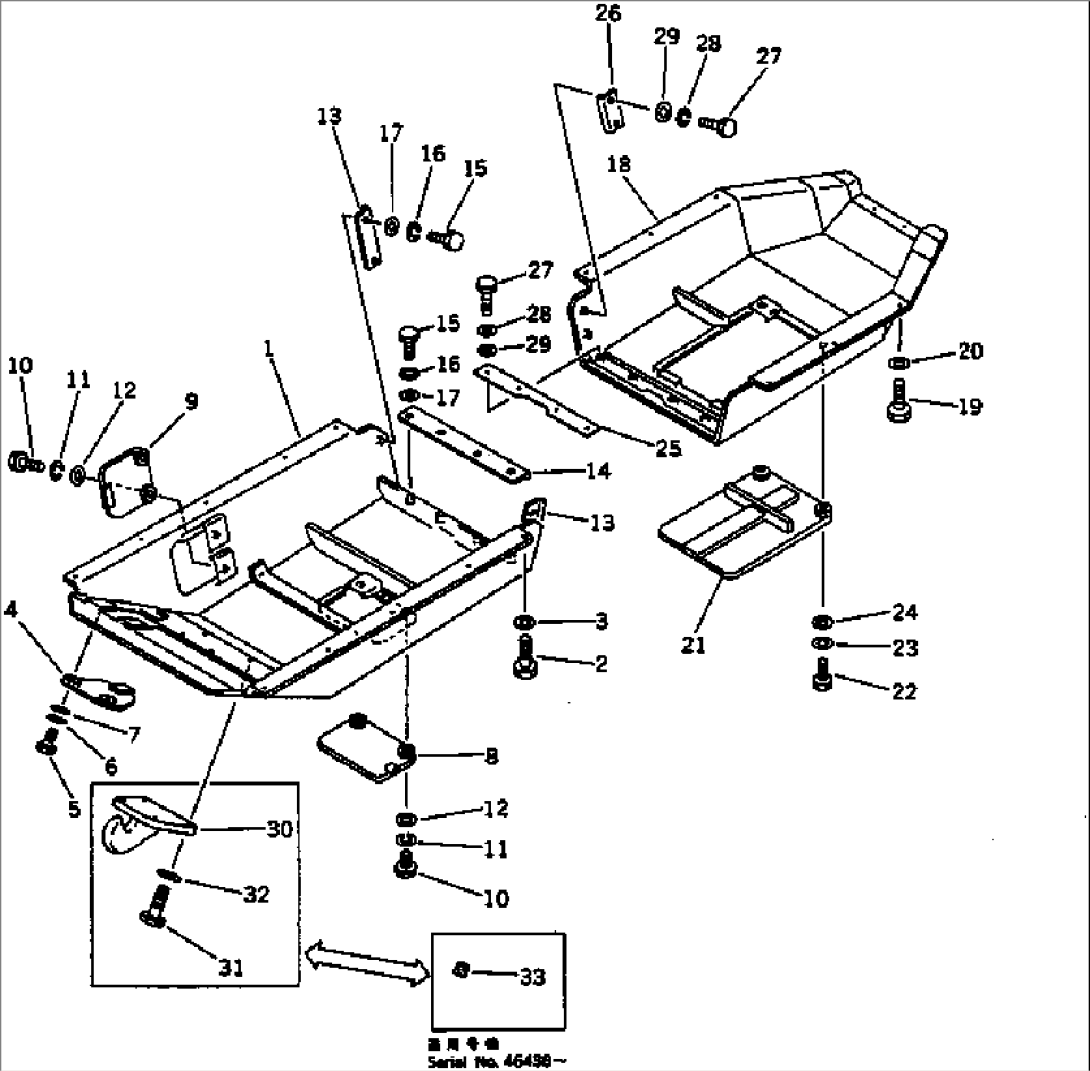

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 144-54-52230 | GUARD,FRONT | 45200- | |
| 2 | 01010-51650 | BOLT | 45200- | |
| 3 | 01643-21645 | WASHER | 45200- | |
| 4 | 144-913-2130 | COVER | 45200- | |
| 5 | 01010-51230 | BOLT | 45200- | |
| 6 | 01602-21236 | WASHER,SPRING | 45200- | |
| 7 | 01643-31232 | WASHER | 45200- | |
| 8 | 144-854-1151 | COVER | 45200- | |
| 9 | 144-54-52120 | COVER | 45200- | |
| 10 | 01010-51230 | BOLT | 45200- | |
| 11 | 01602-21236 | WASHER,SPRING | 45200- | |
| 12 | 01643-31232 | WASHER | 45200- | |
| 13 | 144-854-4140 | COVER | 45200- | |
| 14 | 144-854-4130 | COVER | 45200- | |
| 15 | 01010-51230 | BOLT | 45200- | |
| 16 | 01602-21236 | WASHER,SPRING | 45200- | |
| 17 | 01643-31232 | WASHER | 45200- | |
| 18 | 144-854-4120 | GUARD,REAR | 45200- | |
| 19 | 01010-51650 | BOLT | 45200- | |
| 20 | 01643-51645 | WASHER | 45200- | |
| 21 | 144-854-1130 | COVER | 45200- | |
| 22 | 01010-51230 | BOLT | 45200- | |
| 23 | 01602-21236 | WASHER,SPRING | 45200- | |
| 24 | 01643-21223 | WASHER | 45200- | |
| 25 | 144-854-4160 | COVER | 45200- | |
| 26 | 144-854-4150 | COVER | 45200- | |
| 27 | 01010-51230 | BOLT | 45200- | |
| 28 | 01602-21236 | WASHER,SPRING | 45200- | |
| 29 | 01643-31232 | WASHER | 45200- | |
| 30 | 141-958-2120 | HOOK | 45200- | |
| 31 | 01010-52055 | BOLT | 45200- | |
| 32 | 01643-32060 | WASHER | 45200- | |
| 33 | 07049-02025 | PLUG | 46438- |
