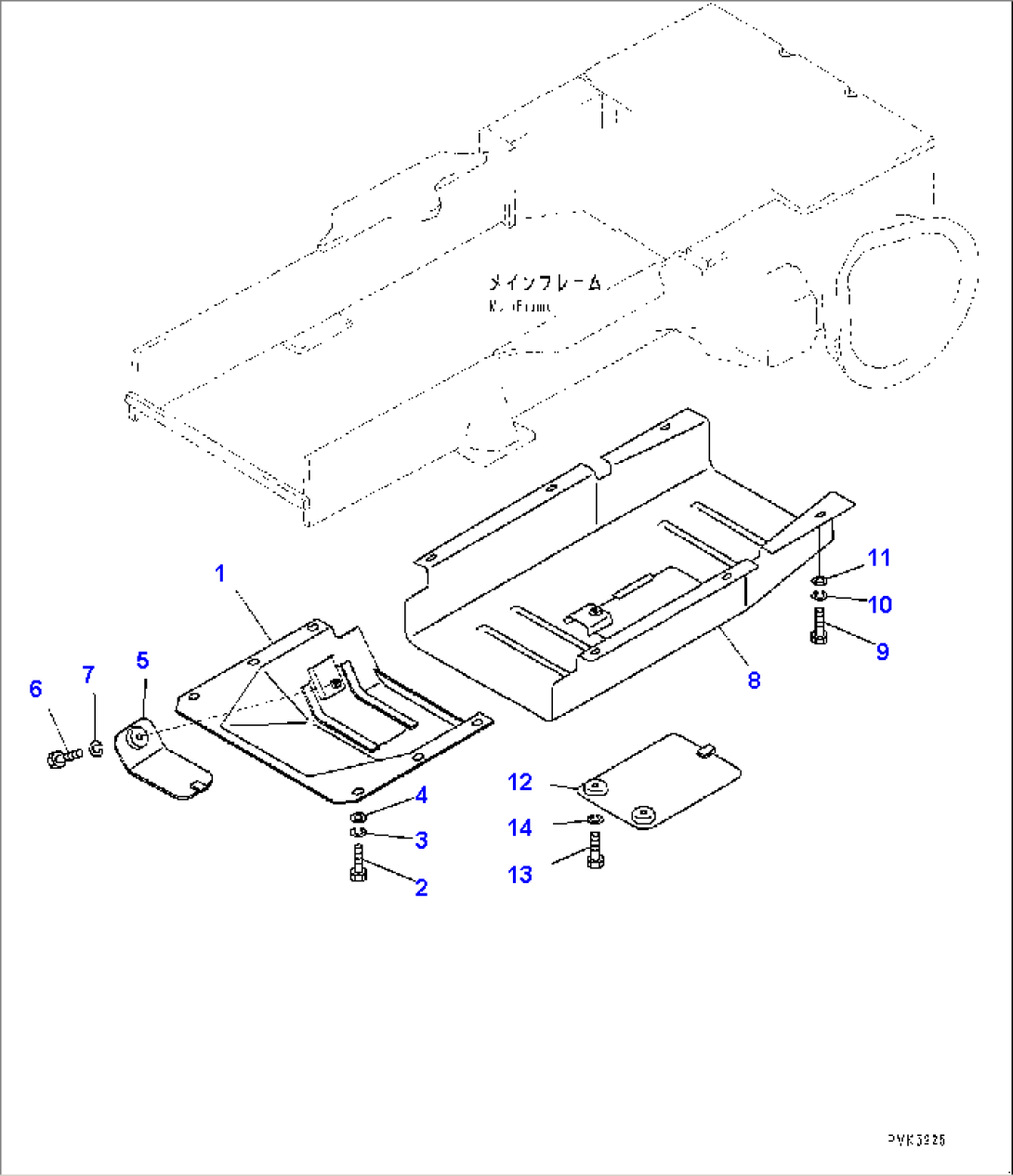

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 104-54-41210 | Guard, Front | 90210- | |
| 2 | 01010-81430 | Bolt | 90210- | |
| 3 | 01602-21442 | Washer, Spring | 90210- | |
| 4 | 01643-31445 | Washer, Flat | 90210- | |
| 5 | 104-54-41120 | Cover | 90210- | |
| 6 | 01010-81025 | Bolt | 90210- | |
| 7 | 01602-21030 | Washer | 90210- | |
| 8 | 103-54-35120 | Guard, Rear | 90210- | |
| 9 | 01010-81430 | Bolt | 90210- | |
| 10 | 01602-21442 | Washer, Spring | 90210- | |
| 11 | 01643-31445 | Washer, Flat | 90210- | |
| 12 | 103-54-25150 | Cover | 90210- | |
| 13 | 01010-81025 | Bolt | 90210- | |
| 14 | 01602-21030 | Washer | 90210- |
