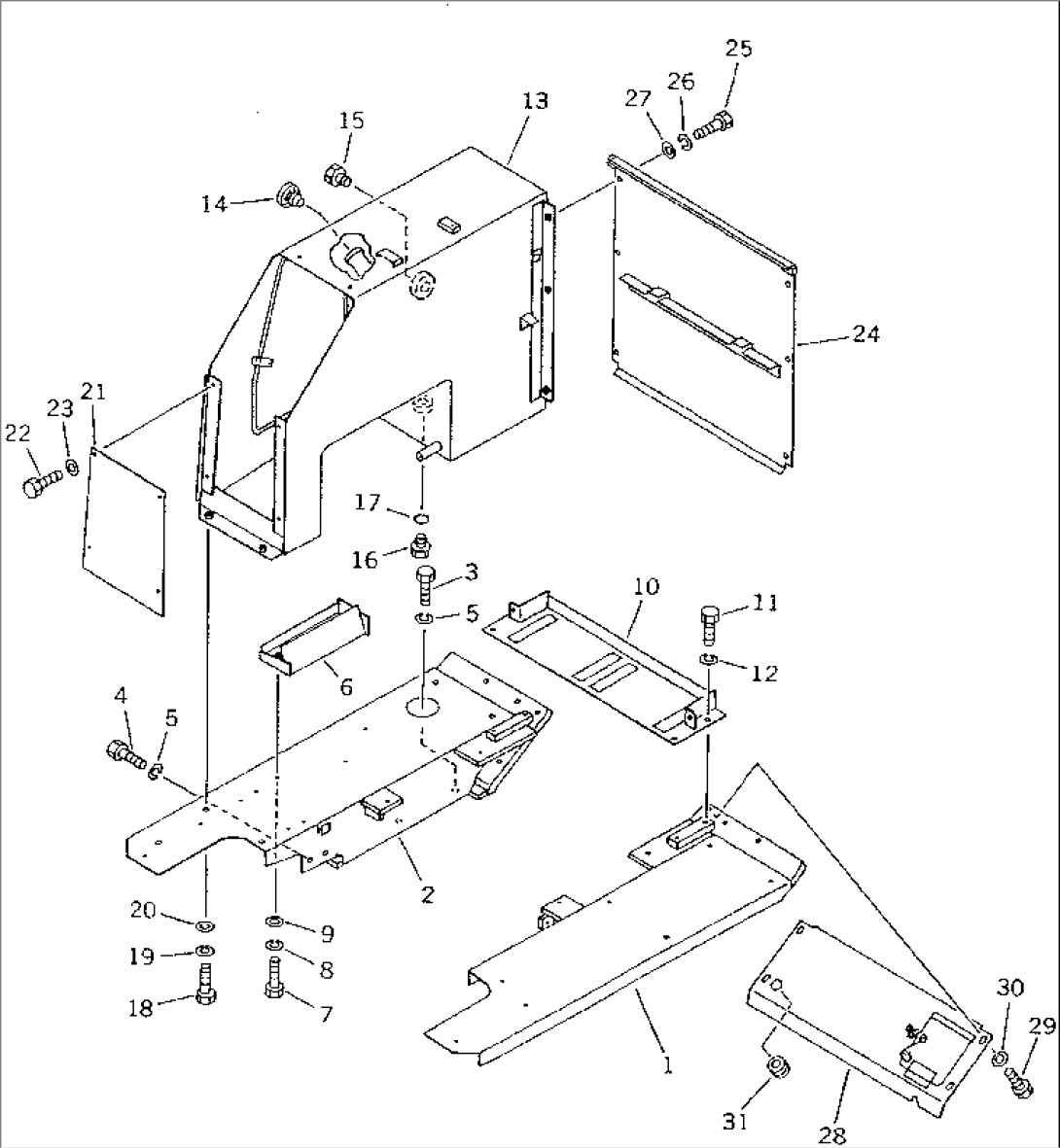

| Item | Part No. | Part Name | Qty | Serial No. |
| 104-Y16-3620 | GUARD ASS'Y | 75001-78603 | ||
| 1 | 104-54-39170 | GUARD,FRONT | 75001-78603 | |
| 2 | 104-Y16-3420 | BRACKET | 75001-@ | |
| 3 | 01013-51000 | BOLT | 75001-@ | |
| 4 | 01590-11012 | NUT | 75001-@ | |
| 5 | 01643-31032 | WASHER | 75001-@ | |
| 6 | 04050-12018 | PIN,COTTER | 75001-@ | |
| 7 | 01010-51430 | BOLT | 75001-@ | |
| 8 | 01602-21442 | WASHER,SPRING | 75001-@ | |
| 9 | 01643-31445 | WASHER | 75001-@ | |
| 10 | 103-54-25140 | COVER | 75001-78603 | |
| 11 | 01010-51025 | BOLT | 75001-@ | |
| 12 | 01602-21030 | WASHER,SPRING | 75001-@ | |
| 13 | 103-54-35120 | GUARD,REAR | 75001-@ | |
| 14 | 01010-51430 | BOLT | 75001-@ | |
| 15 | 01602-21442 | WASHER,SPRING | 75001-@ | |
| 16 | 01643-31445 | WASHER | 75001-@ | |
| 17 | 103-54-25150 | COVER | 75001-@ | |
| 18 | 01010-51025 | BOLT | 75001-@ | |
| 19 | 01602-21030 | WASHER,SPRING | 75001-@ |
