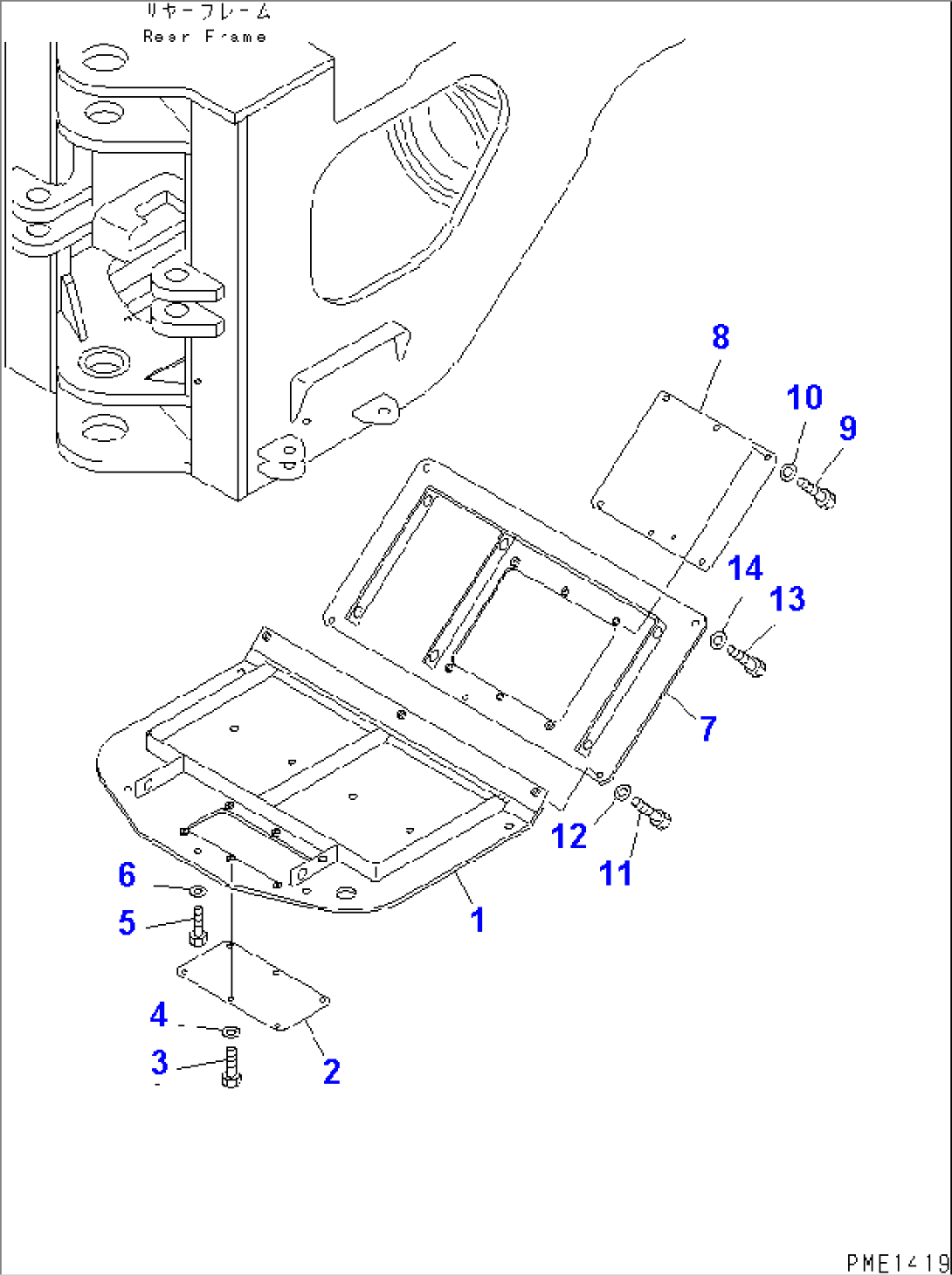

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 428-971-1110 | GUARD,FRONT | 10001- | |
| 2 | 428-971-1150 | COVER | 10001- | |
| 3 | 01010-81230 | BOLT | 10001- | |
| 4 | 01643-31232 | WASHER | 10001- | |
| 5 | 01010-81660 | BOLT | 10001- | |
| 6 | 01643-31645 | WASHER | 10001- | |
| 7 | 428-971-1120 | GUARD,REAR | 10001- | |
| 8 | 427-971-1130 | COVER | 10001- | |
| 9 | 01010-81230 | BOLT | 10001- | |
| 10 | 01643-31232 | WASHER | 10001- | |
| 11 | 01010-81240 | BOLT | 10001- | |
| 12 | 01643-31232 | WASHER | 10001- | |
| 13 | 01010-81640 | BOLT | 10001- | |
| 14 | 01643-31232 | WASHER | 10001- |
